Samsung Electronics
Service Manual
5-14
5.7 Fuser Ass’y

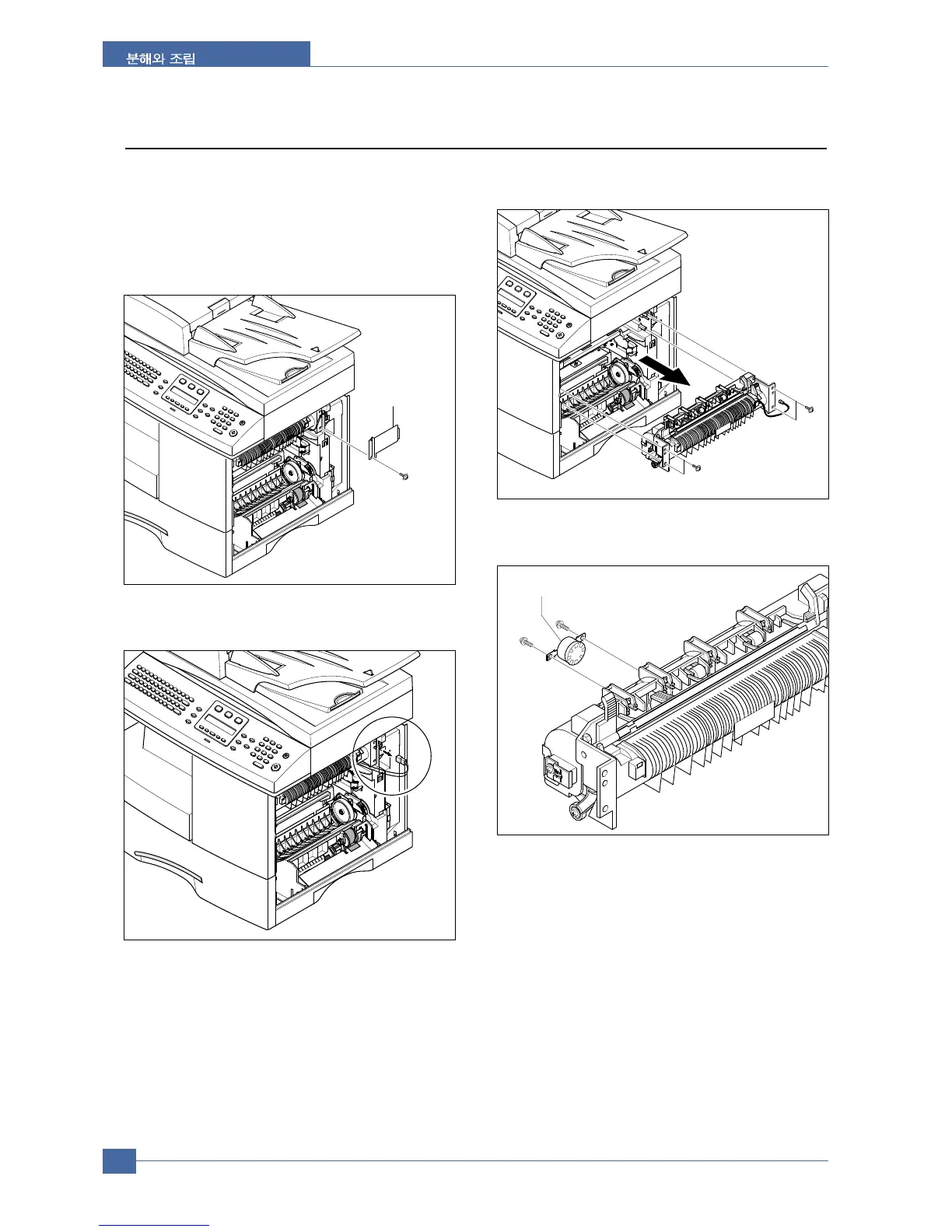

1. Before you remove the Fuser Ass'y, you should be
power off and remove:
- Rear Cover (see page 5-1)
- Side Cover Ass'y (see page 5-12)
2. Remove the one screw and take out the Cover Sheet
Connector.
3. Unplug the one connector.
4. Open the Front Door and then remove the three
screws and take out the Fuser Ass'y.
5. Remove the two screws and take out the Thermostat.
Thermostat
