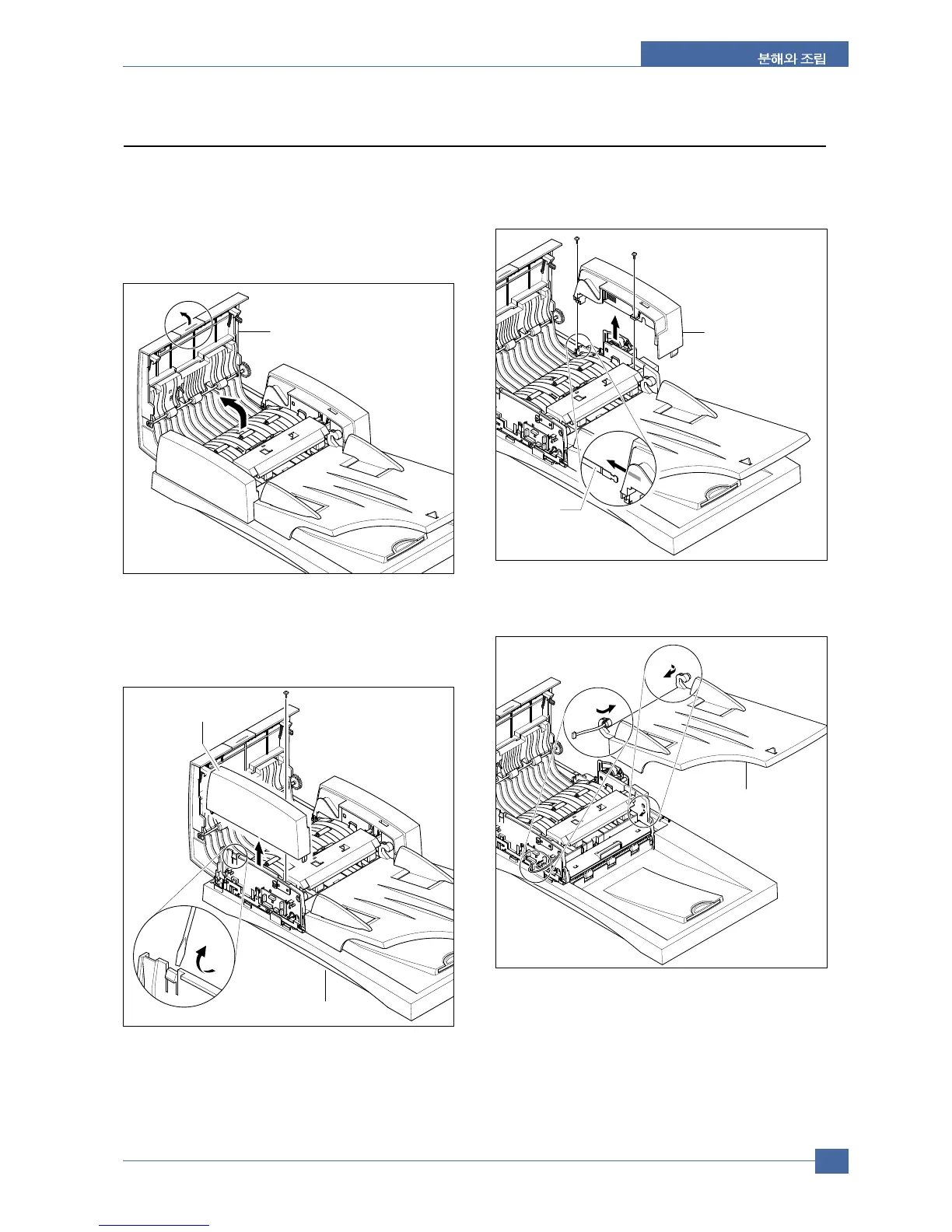

1. Before you remove the DADF Ass'y, you should
remove:
- Rear Cover (see page 5-1)
- Scanner Ass'y (see page 5-2)
2. Open the Open Cover Ass’y
3. Remove the one screw securing the COVER-M-FRONT
and unlatch the COVER-M-FRONT using a flat-blade
screwdriver, as shown below. Then pull the COVER-M-
FRONT upward and remove it.
4. Remove the two screws securing the COVER-M-REAR
and release the stopper. Then pull the COVER-M-REAR
upward and remove it.
5. Remove the TX Stacker
Samsung Electronics
Service Manual
5-7
5.4 DADF Ass’y
Open Cover Ass'y
COVER-M-REAR
Stopper
TX Stacker Ass'y
COVER-M-FRONT
Platen Cover Ass'y
