Samsung Electronics
Service Manual
5-22

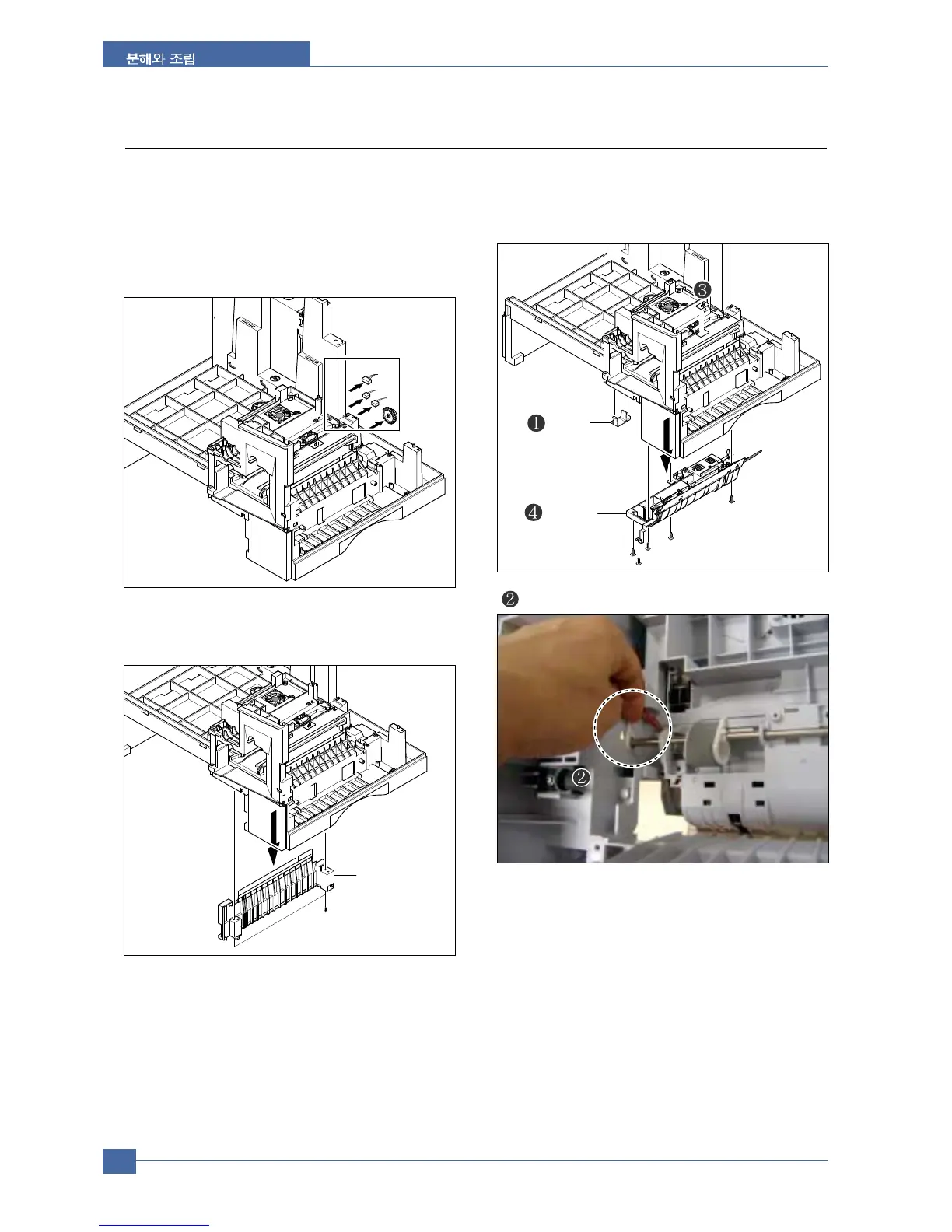

5.17 Pick Up Ass’y
1. Before you remove the Pick Up Ass’y, you should
remove:
- Rear Cover (see page 5-1)
- Drive Ass'y (see page 5-16)
2. Remove three connector and take out the pick up
gear.
3. Remove the two screws and take out the Cassette
Rail.
4. Remove the five screws and remove the Guide Paper
Out shown below. Release the paper Pickup Roller
bush(white plastic clip) and take out the Pick Up Ass'y,
as shown below.
* lift the Bearing Shaft by cross at right angles
Cassette Rail
Pick-up
Ass'y
Guide
Paper Out
To Next Page
