Samyung NF430 - INSTALLATION; Connections

Installation and Operation Manual
56
Correct installation is important to the performance of the unit. It is vital to read the entire
installation section of this manual and the documentation that comes with the antenna and any
other units before starting installation. For further information, please contact Samyung ENC.
5-1 Options and Accessories
Optional sensors and instruments
• GPS or DGPS Antenna
• DSC VHF Radio
• Other instruments: The chart plotter can
receive data from other instruments and
send data to other instruments by NMEA..

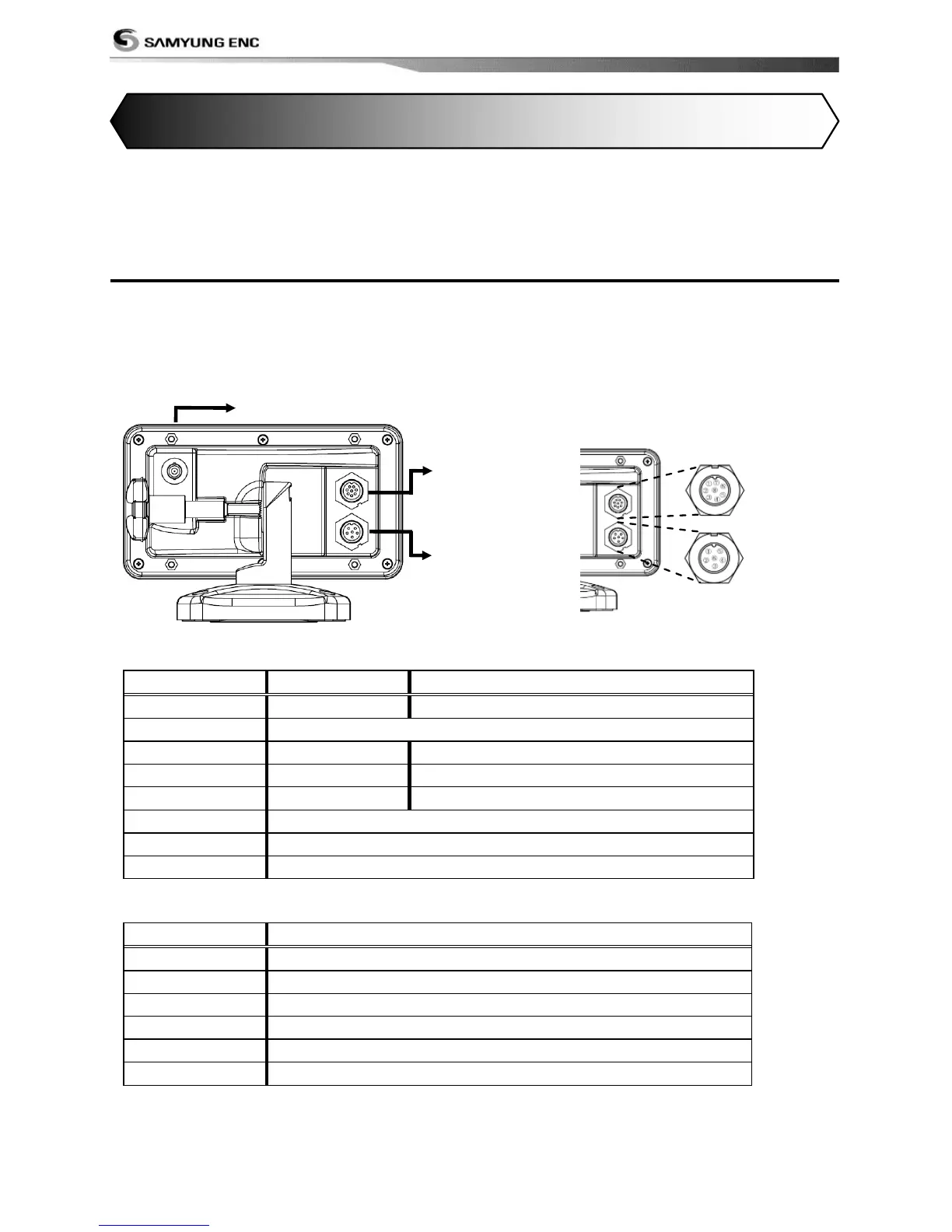

Connections
[Pin Number]
[Power & Data]
Pin Number
Colour
Functions
1
Black
Ground: - Power in, NMEA ground
2
No use
3
White
NMEA 1 Out
4
Green
NMEA 1 In
5
Red
+ power in, 10 to 35 V DC
6
No use
7
No use
8
No use
[Sonar]
Pin Number
Functions
1
Sonar +
2
Temp, GND
3
Not Use
4
Temp
5
Sonar -
6
Sonar – GND
5 INSTALLATION
External GPS
Power & Data
-NMEA 0183
Sonar (NF430)
