3.7 DCREG SIZE 2 AND SIZE 2A THROUGH-PANEL
ASSEMBLY

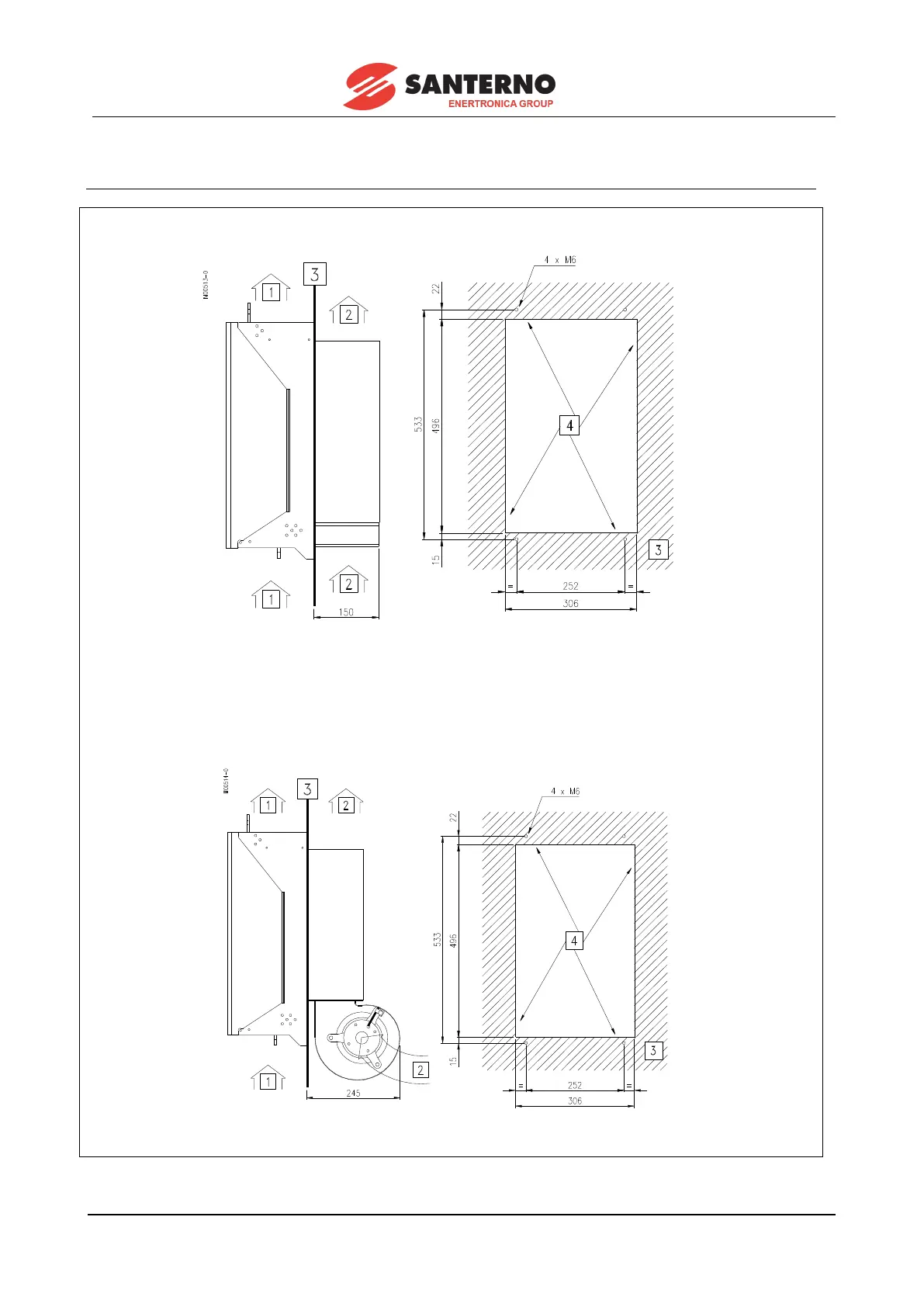

- Size 2
1 - Direction of the secondary cooling air flow
2 - Direction of the main cooling air flow
3 - Fixing panel
4 - Slot to be made in the fixing panel
- Size 2A
