The hydraulic lockout control lever is used to turn off the
functions.
• Push the hydraulic lockout control lever down into
the LOCKED position. The machine will not move,
even if you maneuver the controls.
• Pull the hydraulic lockout control lever up into the
UNLOCKED position. The machine will now
move in accordance with the joysticks and other
control levers.
Left Control Console
The left control console is to the left of the operator when seated.
The left control console contains the following items:
• Left joystick (a)
• Hydraulic lockout control (b)
• Radio control panel (c)
• Climate control panel (d)

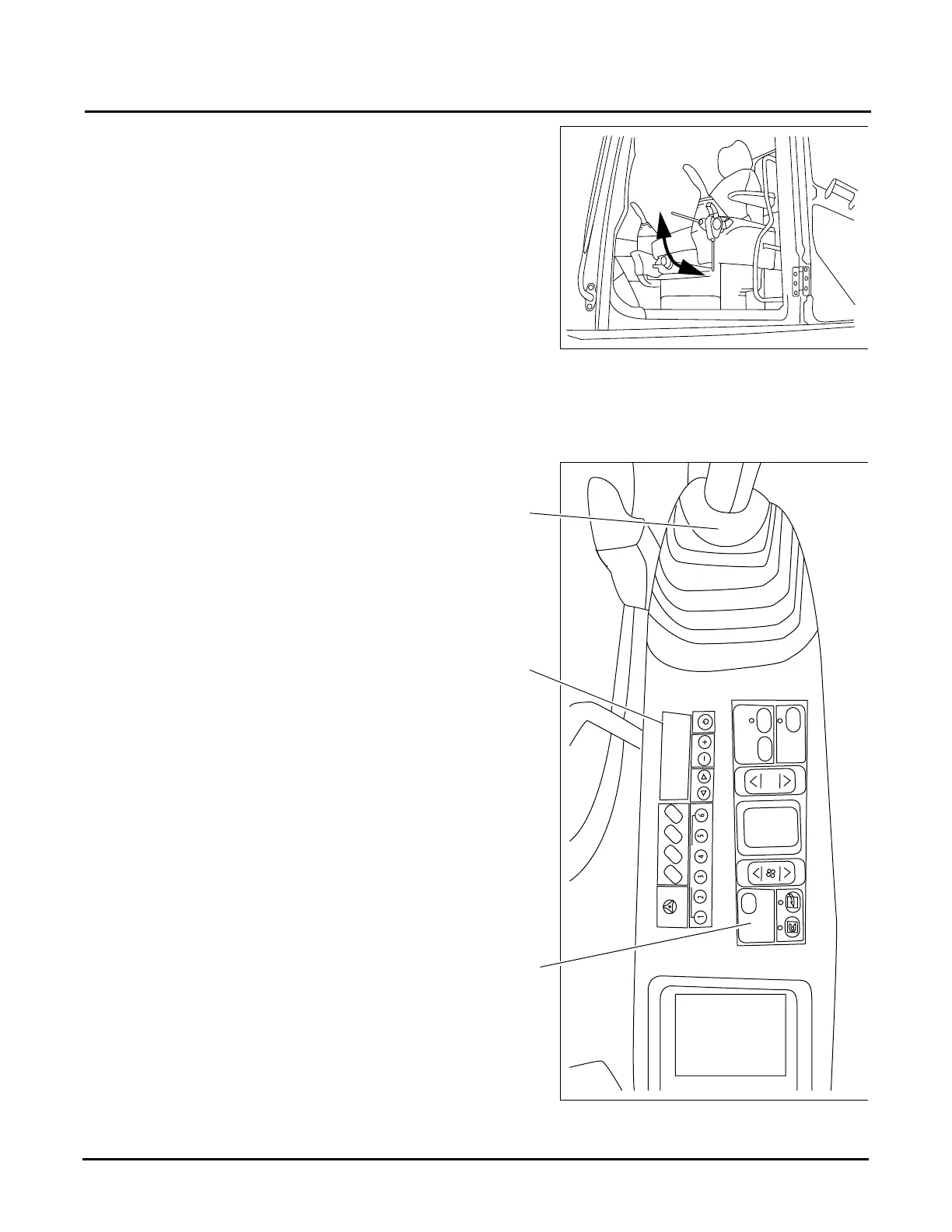

Fig. 3-4
UNLOCKED
LOCKED
OFF
MODE
AUTO
A/C
TEMP
FULL AUTO AIRCONDITIONER
SANY
AS/PS
AM/FM
SEL
TIME
TUNUNG
VOL
PRESET STATION
Fig. 3-5
a
b
c
