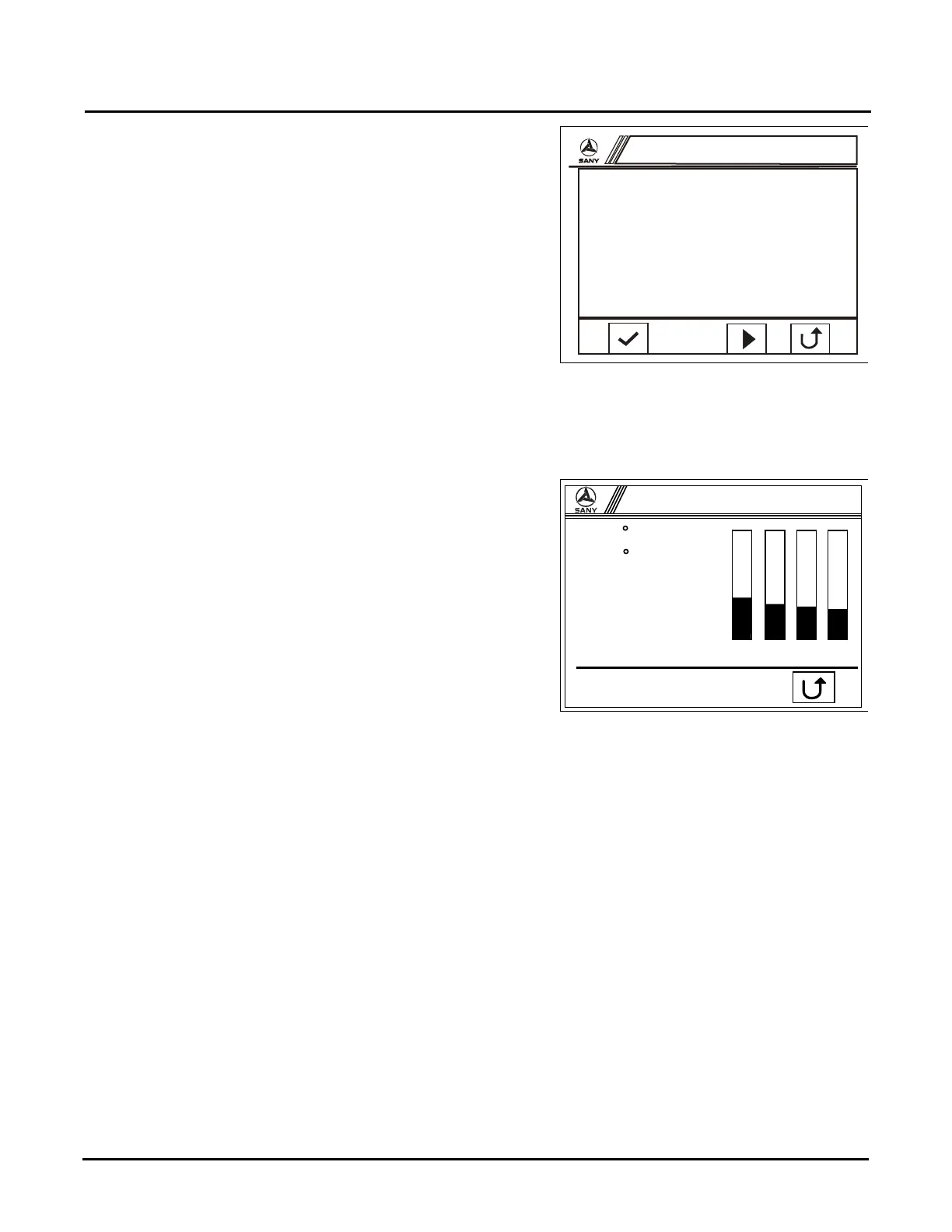

GPS Information Screen
NOTE: This system may or may not be active on your machine.
The GPS Information screen displays:
• Longitude - E indicates for east of the prime
meridian and W indicates west of the prime
meridian
• Latitude - N indicates north of the equator and S
indicates south of the equator
• Altitude - P indicates above sea level and N
indicates below sea level
• The bars and numbers indicate the signal to noise
ratio 0-99
• Velocity in Km/h - Speed
• No. of Sat. - Number of satellites the system is receiving
• Indication - Displays 1023 when GPS is normal and 615 when GPS is abnormal
Press F4 to display the main operator screen.
NOTE: When the altitude display is not zero and both the longitude and latitude display 0 the system is
processing the signals to provide a precise location.
NOTE: When Indication changes to 0 from 7, it means that there is a connection loss in the SIM card or the
antenna may be inoperative. When the Indication changes to 0 from 15, it means that the GPS service
is not available, the SIM card replacement is overdue, or the GPS system is inoperative.
When the Indication changes to 0 from 31, it means that the monitoring system is inoperative.
