Installation
21
VGA
cable
Unplugthepower
cordsofboththe
projectorandexternal
equipmentfromthe
ACoutletbefore
connectingcables.
Cables used for connection ( = Cables not supplied with this projector.)
• Video cable (RCA x 1 or RCA x 3)
• BNC cable (BNC x 1 or BNC x 3)
• S-video cable
• HDMI cable
VGA Cable
(One cable is supplied.)
• DVI-Digital cable
Monitor Out Signal Table
A cable with one
end D-sub 15
and the other
end (Black box)
compatible with
each equipment
is necessary.

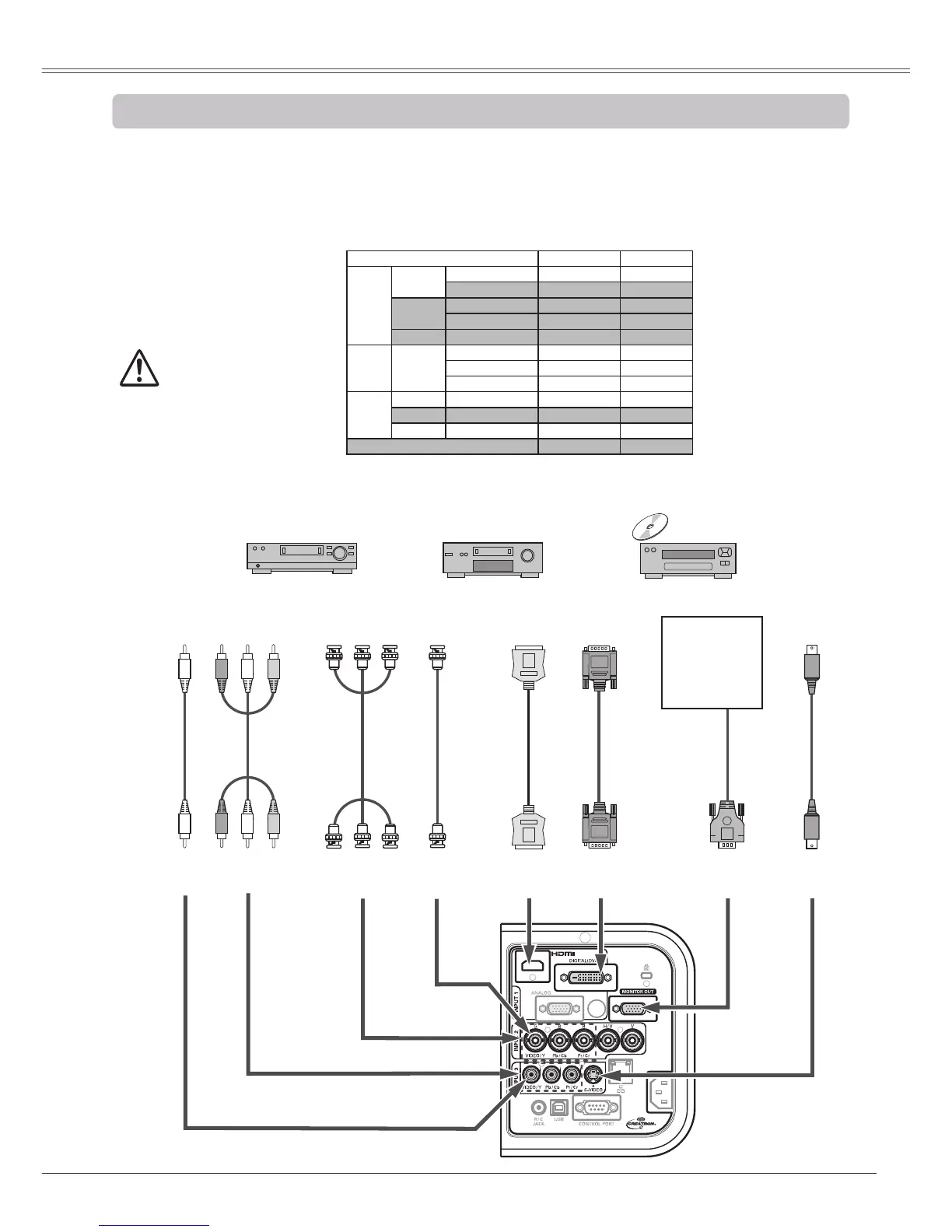

Connecting to Video Equipment (Video, S-video, HDMI)
S-video
cable
S-video
Output
Composite
Video
Y - Pb/
Cb - Pr/Cr
BNC
cable
Component
Video Output
Composite
Video
Component Video
Output (Y, Pb/Cb,
Pr/Cr)
HDMI
Output
HDMI
cable
Video
HDMI
MONITOR
OUT
S-VIDEO
Refer to the
Monitor Out
Signal Table
(above).
Video
Y - Pb/
Cb - Pr/Cr
DVI-Digital
cable
DIGITAL
IN
RCA
cable
Digital Output
(HDCP
compatible)
Input Terminal Monitor Out Cable
Input 1
D-sub15
RGB (PC analog) YES
RGB (SCART) NO
DVI-D
RGB (PC digital) NO
RGB (AV HDCP) NO
HDMI
HDMI NO
Input 2 5 BNC
RGB YES
Video YES
Y, Pb/Cb, Pr/Cr YES
Input 3
RCA
Y, Pb/Cb, Pr/Cr YES
S-video
S-video NO
Video
Video YES
Network
NO
