Sanyo PLC-XM150L User Manual

-100-

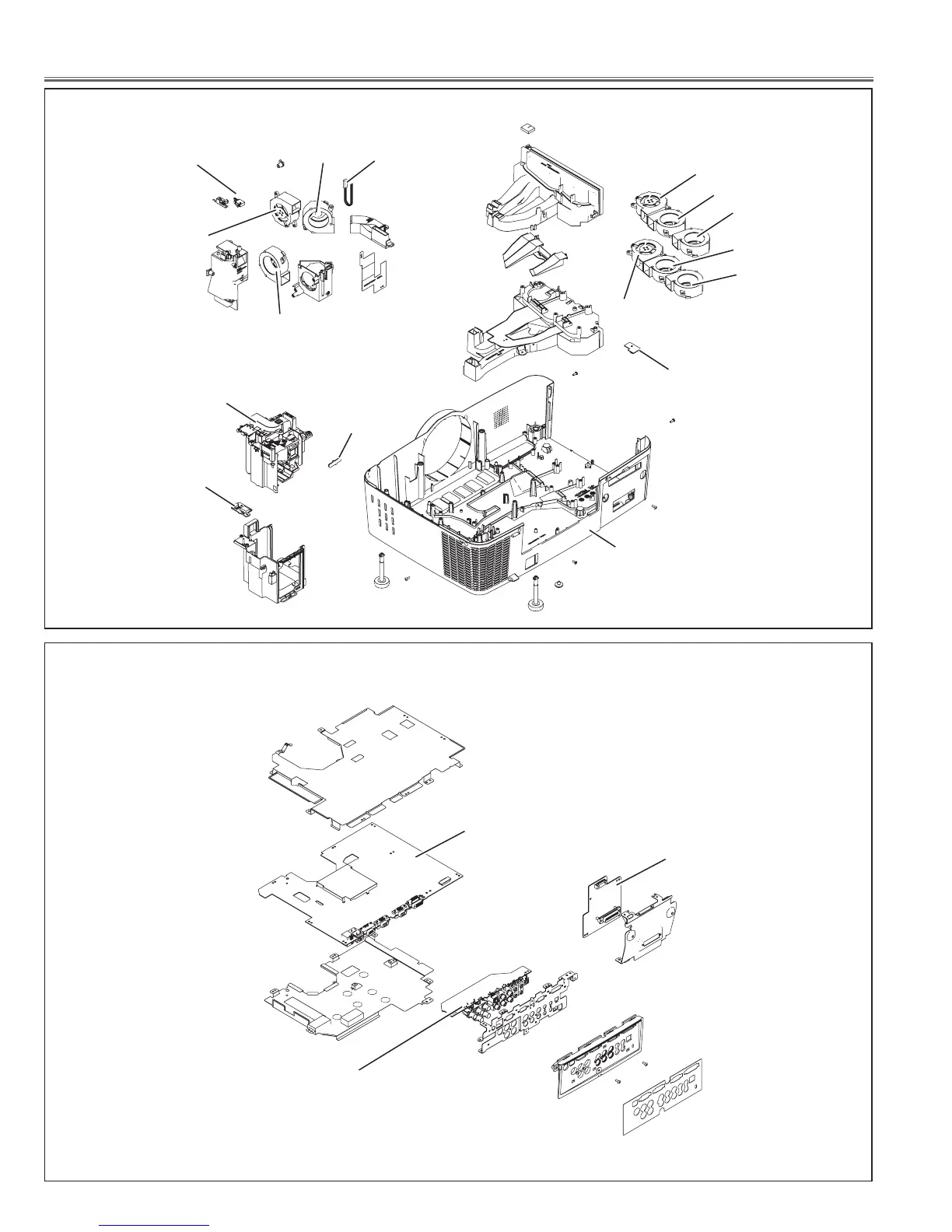

Parts Location Diagrams
KA8-XM15000 / KA8-XM150L00
KZ5-XM10000 / KZ5-XM100L00
Cabinet bottom-2 assembly
Main, A/V and Net Joint board assembly
M19
M25
A8730
ID CONNECT BOARD
C05-1
FN909
A1000
MAIN BOARD
M10
S02
S01
K11A1-A2
K11B1-B2
C01
C14
C01
LP901
C05
FN910
FN908
FN907
FN911
A1800
SENSOR A BOARD
M20
M18
S02
S02
S02
SW902
M17
SW901
M33
FN904
FN902
FN903
M12
FN906
A3600
NET JOINT BOARD
A2000
A/V BOARD
C15
C18
S02
S02
K14A1-A2
K38A1-A2

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
