-19-
Mechanical Disassembly
Mechanical disassembly

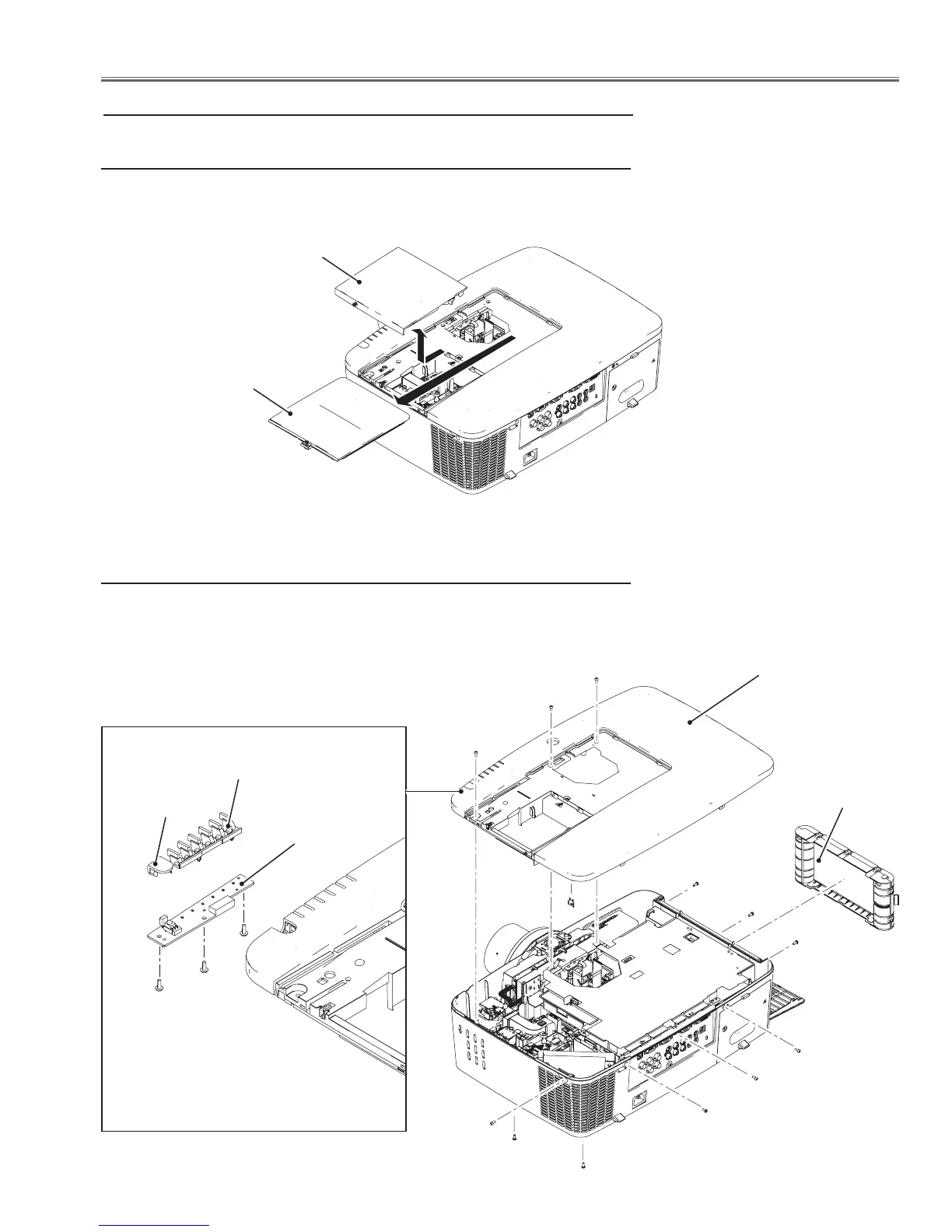

1. Lamp cover and Prism cover removal
1. Loosen 1 screw-A and remove the Lamp cover upward off.
2. Loosen 1 screw-B and remove the Prism cover by sliding it in the arrow
direction.
Filter cartridge
T3x8
T3x8
Cabinet top assy
RC front
window
LED decoration
F/T RC+LED
board
Prism cover
1-1. Cabinet Top removal
1. Open the filter cover and remove the filter cartridge.
2. Remove 12 screws-A (M3x8) and then take the Cabinet Top Assy upward
off.
A
B
Lamp cover
A
A
A
A
A
A
A
A
A
A
A
A
T3x8

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
