Sanyo PLC-XM150L User Manual

-22-
Mechanical Disassembly

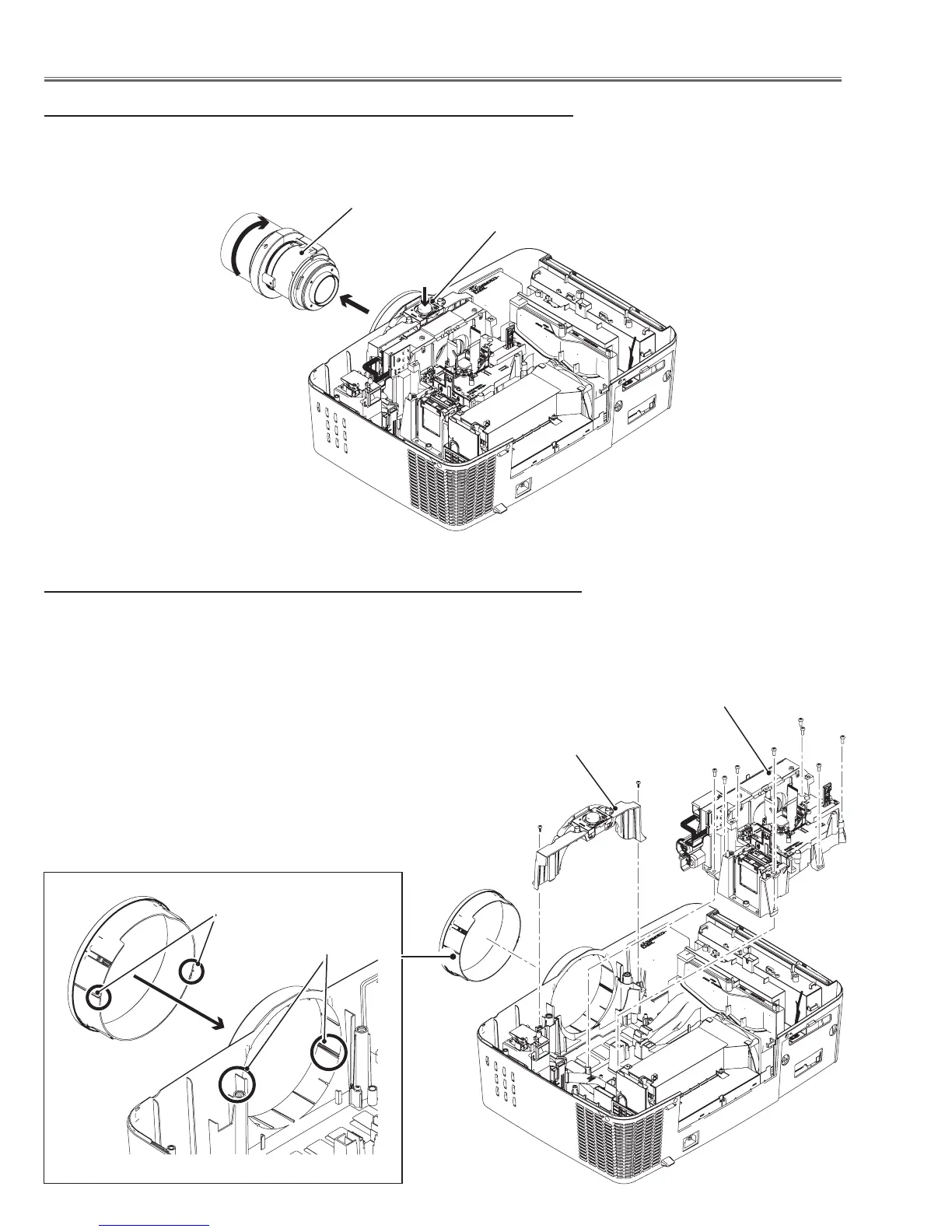

6. Projection Lens removal
1. Press and hold the Lens release button and turn the Projection Lens coun-
terclockwise until it stops and put it out slowly.
Projection lens
7. Optical Unit removal
1. Remove 2 screws-A (T3x8) to take the Lens Cover Top upward off.
2. Remove 8 screws-B (M4x10) and remove the Optical Unit assy and Lens
Shift assy.
3. Remove the Front Ring Cover by pressing it from back.
Lens release button
A
A
B
B
B
B
B
Guides
Grooves
Lens cover top
Optical unit and
Lens shift assy
B

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
