Sanyo PLC-XM150L User Manual

-41-

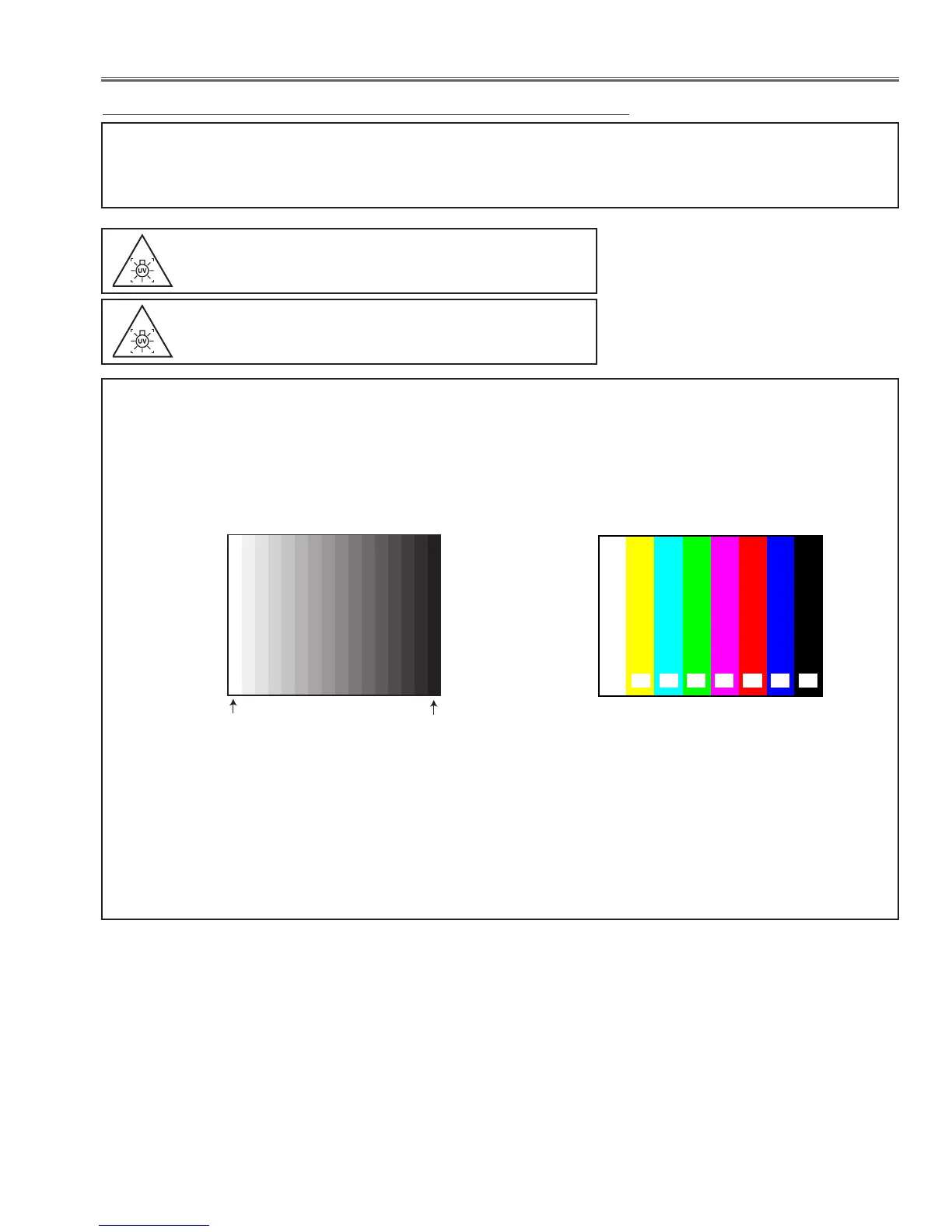

Circuit Adjustments
CAUTION: The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust the following
adjustments except requiring the readjustments in servicing otherwise it may cause loss of performance
and product safety. Before taking these adjustments, turn the projector for more than 10 minutes to sta-
bilize the operation.
[Adjustment Condition]
● Input signal
Analog Computer signal ..... 0.7Vp-p/75W terminated (XGA)
Composite Video signal ... 1.0Vp-p/75W terminated (NTSC / PAL)
Component Video signal .... 0.7Vp-p/75W terminated (480i, 480p, 720p, 1080i)
● Picture control mode .......... “STANDARD” mode unless otherwise noted.
● Lamp control ....................... “Normal” mode unless otherwise noted.
Note:
* Please refer to “Service Adjustment Menu Operation” for entering the service mode and adjusting the service data.
White 100%
Black 100%
16 steps gray scale pattern
W Y C G M R B BK
100% full color bar pattern
Electrical Adjustments
WARNING : USE UV RADIATION EYE AND SKIN
PROTECTION DURING SERVICING.
CAUTION:
To prevent suffer of UV radiation, those adjustments
must be completed within 25 minutes.

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
