Circuit Protections
Mechanical sensor switches (SW901, SW1891)
This projector provides 2 mechanical sensor switches, the one is for filter car-
tridge switch (SW1891) and the other one is for lamp cover switch (SW901).
The filter cartridge switch detects whether the filter cartridge is installed cor-
rectly. If the filter cartridge is not installed correctly, the projector cannot turn
on. In this case, the LAMP indicator is lighting and other indicators are blink-
ing.
The lamp cover switch detects whether the lamp cover is closed securely. If
lamp cover is opened or not closed completely, the drive signal to the lamp
circuit is cut off. After opening the lamp cover for replacing the lamp ass’y,
place the lamp cover correctly otherwise the projector cannot turn on. In this
case, the LAMP indicator is lighting and LAMP REPLACE indicator is blink-
ing.

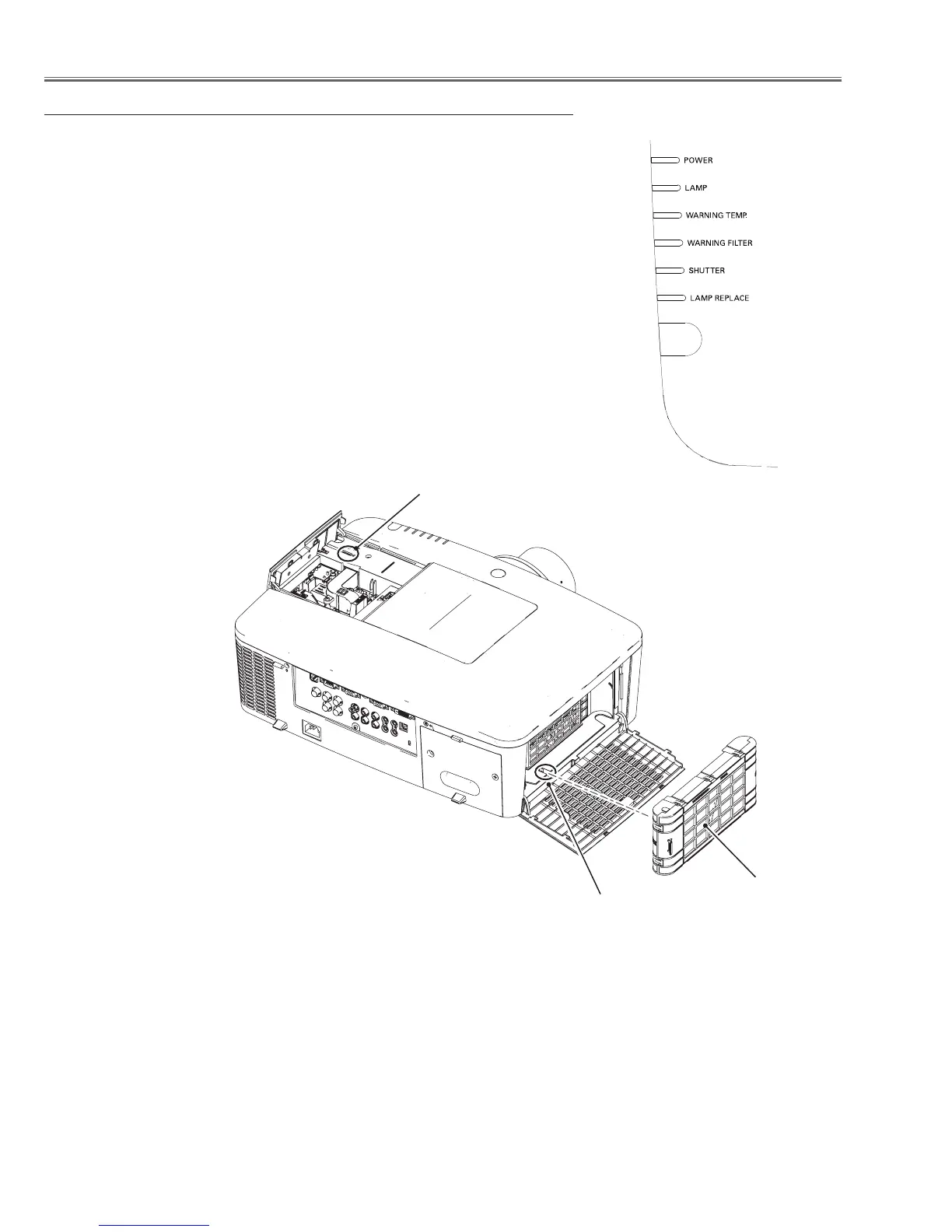

Filter cartridge switch
(SW1891)
Lamp cover switch
(SW901)
Filter cartridge
LED indicators

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
