Sanyo PLC-XM150L User Manual

-36-

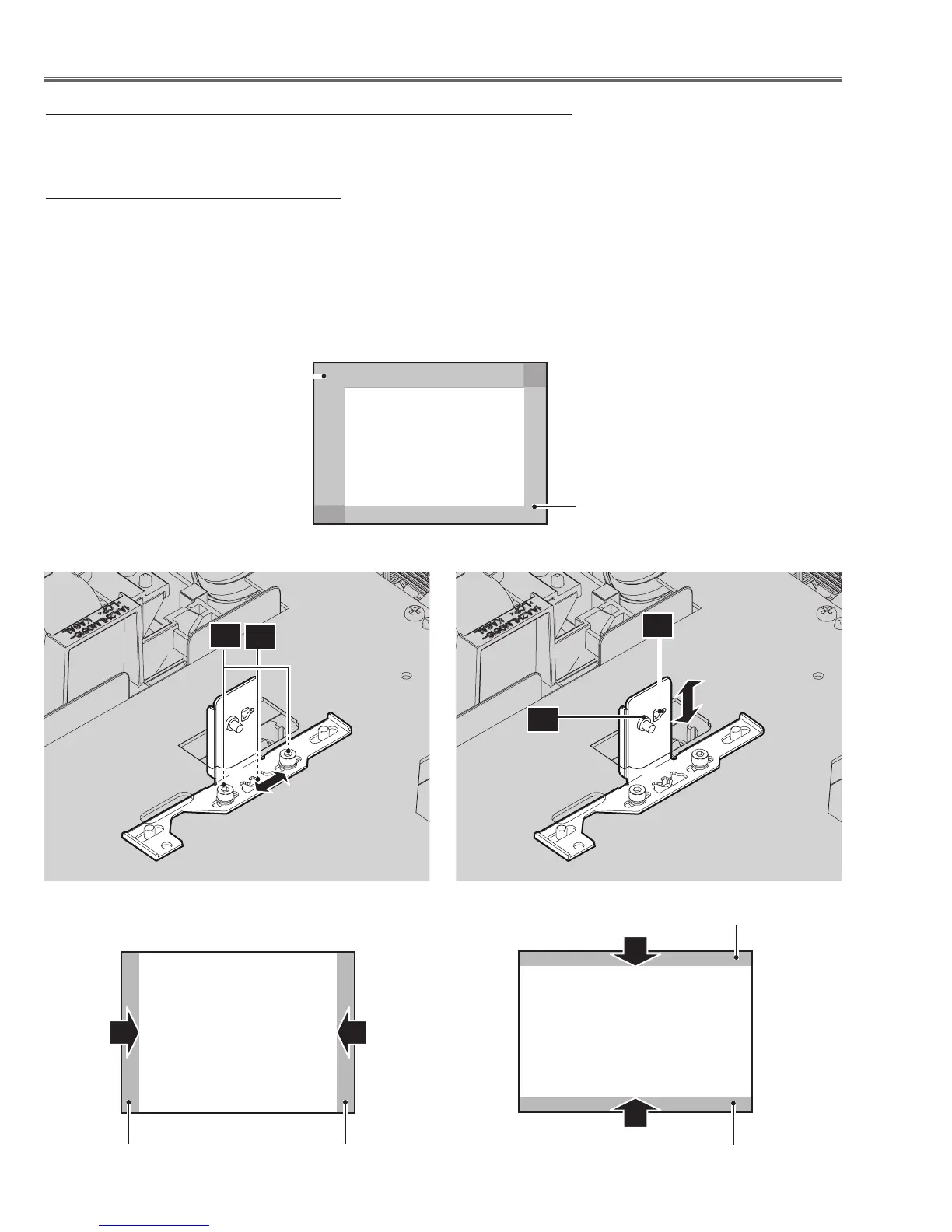

Optical Adjustment
1-1. Condenser lens adjustment-1
1
Loosen 2 screws A and 1 screws C.
2 Move the condenser lens to display the color shading on the top/bottom
and left/right of the screen.
1) Insert a slot driver into the slot B and turn it to move the image horizon-
tally as shown in Fig.1-1,
2) Insert a slot driver into the slot D and turn it to move the image vertically
as shown in Fig.1-2,
1. Optical axis adjustment
Cyan/Magenta Magenta/Cyan Magenta/Cyan
Cyan/Magenta
Cyan/Magenta
Magenta/Cyan
(Target screen image)
Fig.1-1 Fig.1-2
White
Select the internal test pattern signal “All white” from the projector’s menu
“Menu -> Setting -> Test pattern”.
C
D
A
B

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
