Sanyo PLC-XM150L User Manual

-37-

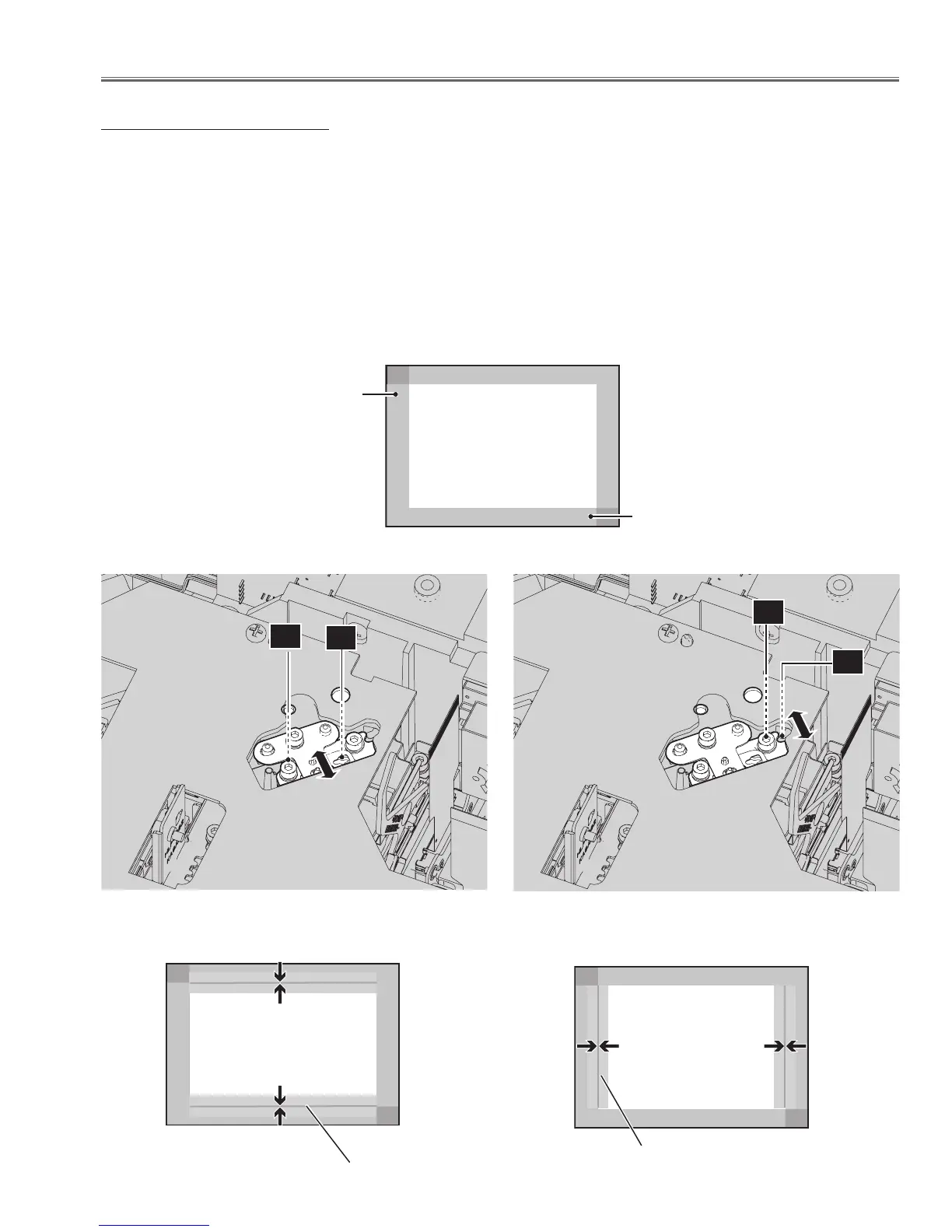

Optical Adjustment
Yellow/magenta color offset
1-2. Mirror (B) adjustment
1
Loosen 1 screw E and 1 screws G.
2 Move the Mirror-B to disappear the color band (Yellow/Magenta) on
the top/bottom and left/roght of the screen.
1) Insert a slot driver into the slot F and turn it to move the image
vertically as shown in Fig.1-4.
2) Insert a slot driver into the slot H and turn it to move the image
horizontally as shown in Fig.1-3,
3 Tighten screws E and G to fix the Mirror-B unit.
E
F
G
H
Cyan/Magenta
Magenta/Cyan
(Target screen image)
Fig.1-3 Fig.1-4
Yellow/magenta color offset

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
