-39-
Optical Adjustment

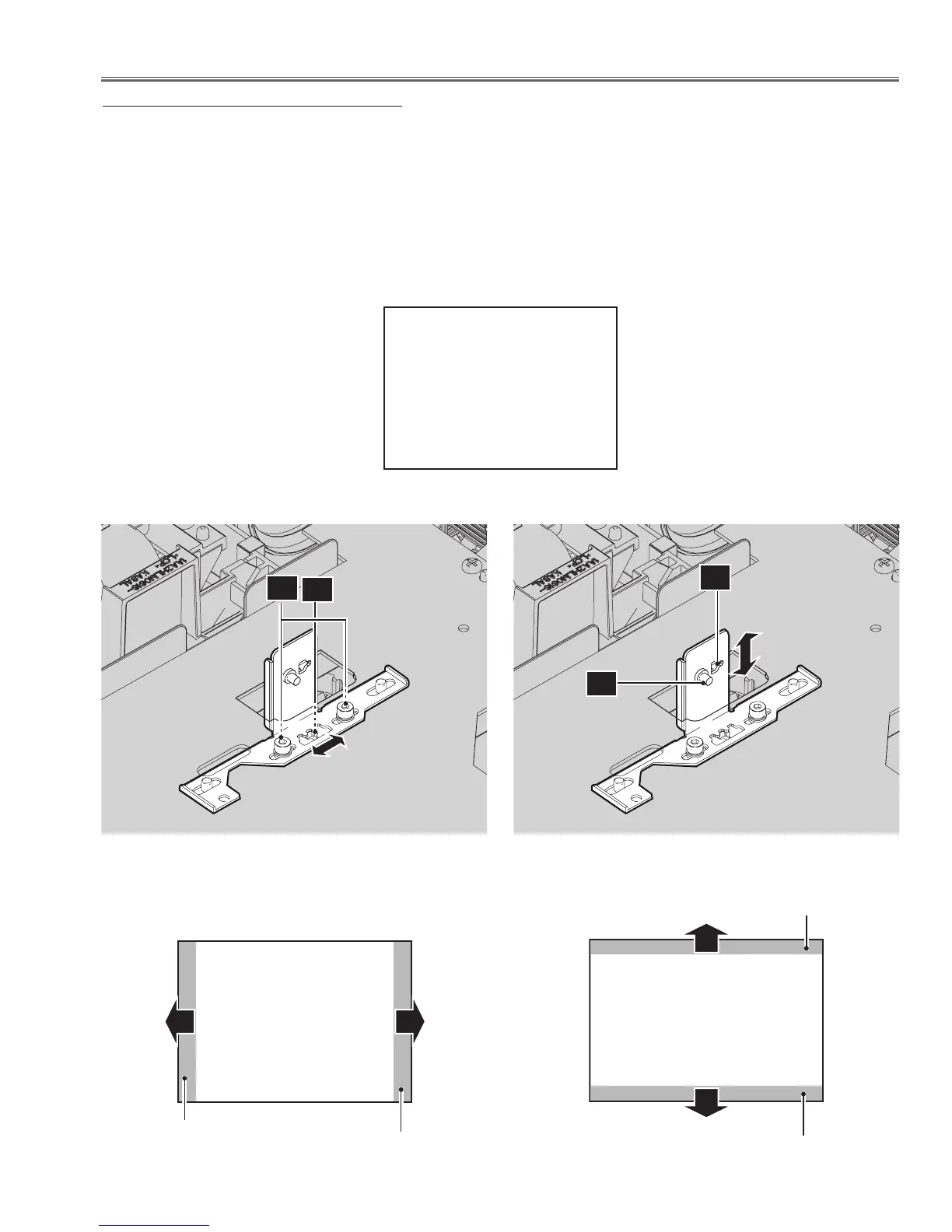

1-4. Condenser lens adjustment-2
1
Move the condenser lens to remove the color shading on the top/bottom or
left/right of the screen.
1) Insert a slot driver into the slot B and turn it to move the image horizon-
tally as shown in Fig.1-5.
2) Insert a slot driver into the slot D and turn it to move the image vertically
as shown in Fig.1-6.
2 Tighten screws A and C to fix the Condenser lens.
(Target screen image)
Fig.1-7 Fig.1-8
White
Cyan/Magenta Magenta/Cyan
Magenta/Cyan
Cyan/Magenta
A
B
C
D

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
