Sanyo PLC-XM150L User Manual

-20-

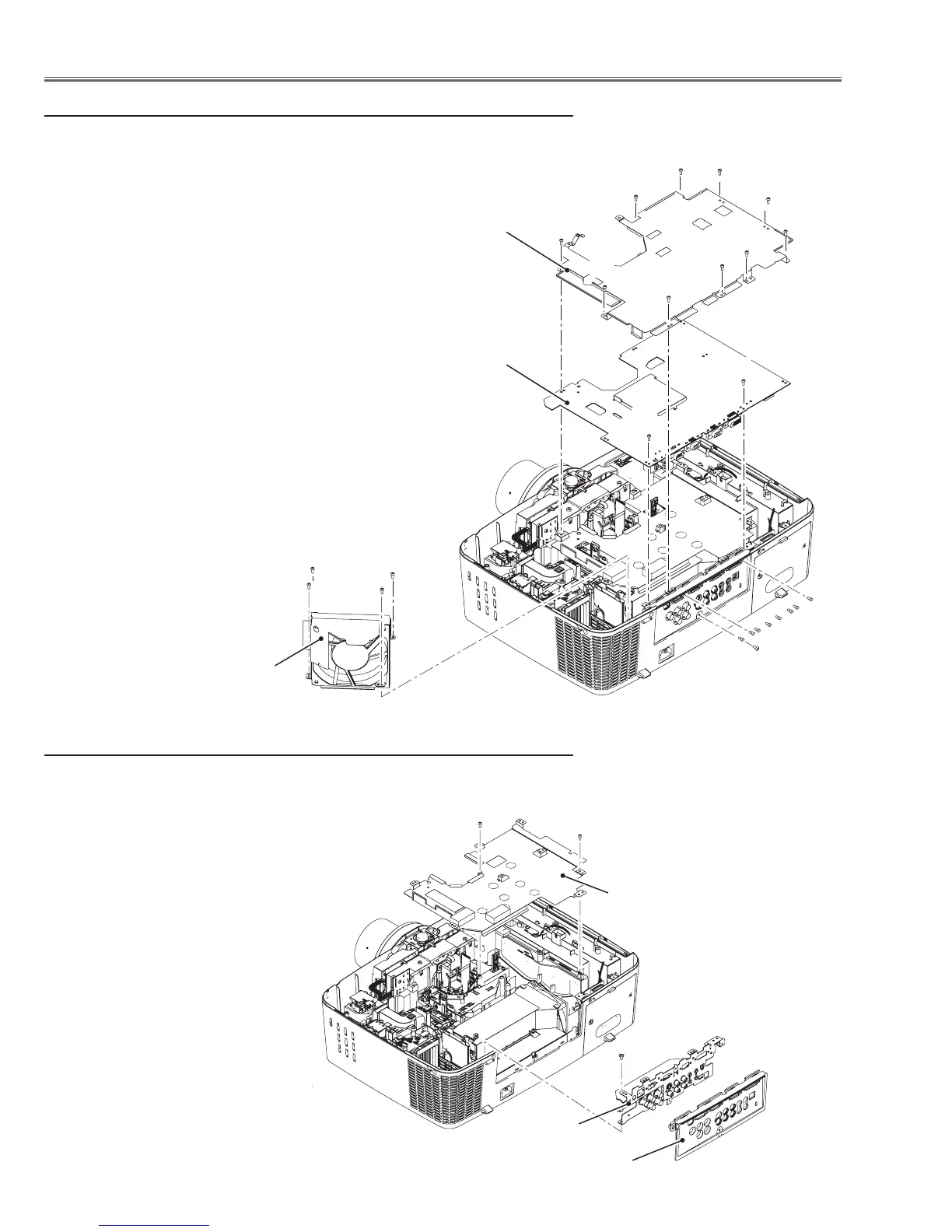

Mechanical Disassembly
2. Fan (FN905) AND Main board removal
1. Remove 1 screw-A (M3x8) and 3 screws-B (T3x8) to take the Fan (FN905)
upward off.
2. Remove 10 sccrews-C(M3x8) to take the Main board shield top off.
3. Remove 2 screws-D(M3x8) and 8 hex-screws E and 1 screws-F(M3x8)
and then remove the main board.
3. A/V board and removal
1. Remove 1 screw-A (M4x8) and pull the A/V board assy upward.
2. Remove 2 screws-B (T3x8) to take the Main board shield bottom.
E
F
D
D
C
C
C
C
C
C
C
C
Main board
Main board
shield top
B
B
A
Fan (FN905)
Main board shield bottom
A/V board
AV panel
C
C
A
B
B
B

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
