Sanyo PLC-XM150L User Manual

-31-

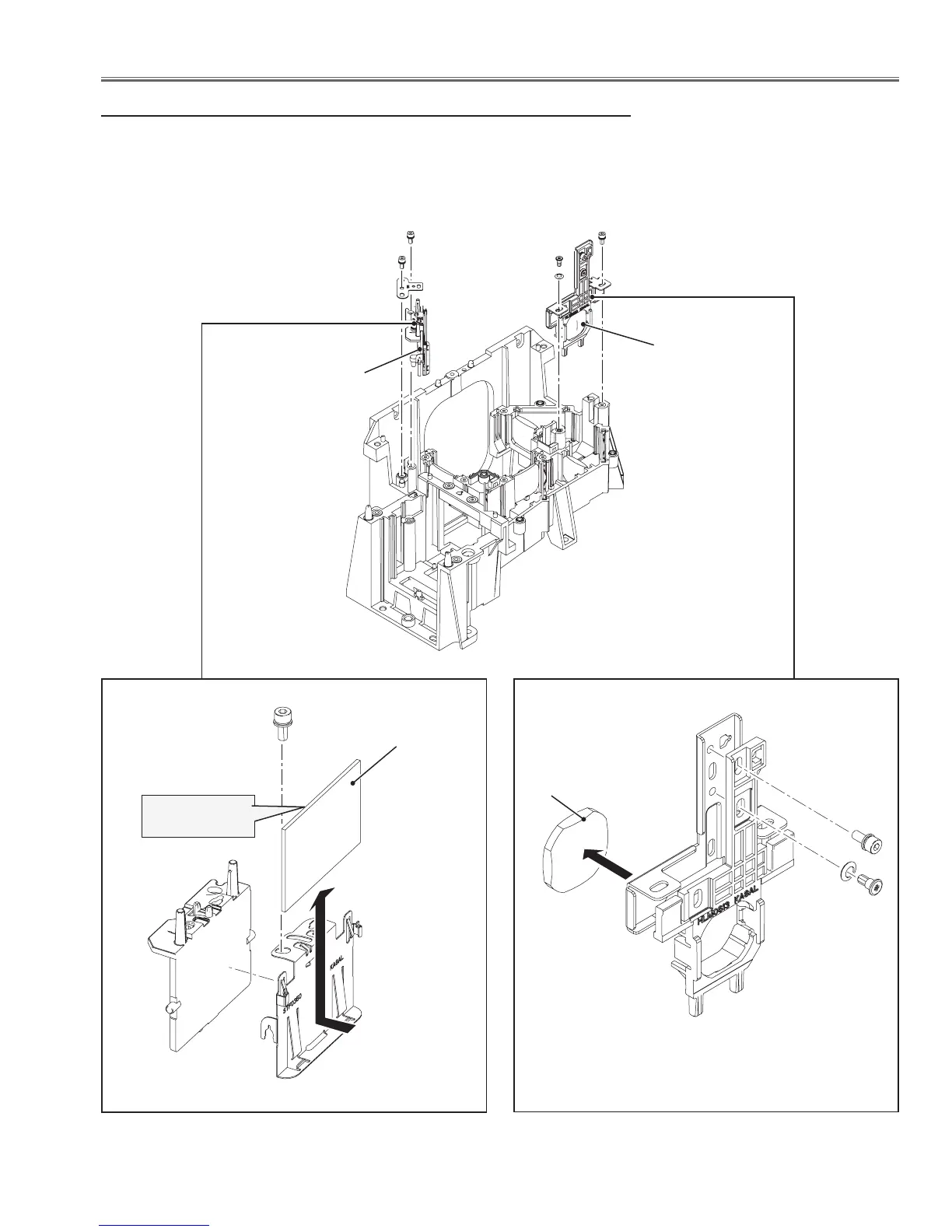

Optical Parts Disassembly
5-1. Mirror(B) Assy and Relay Lens(In) Assy removal
1. Remove 2 screws-A (M2.5x6) and pull the Mirror(B) assy upward off.
2. Remove 1 screw-B (M2.5x6) and 1 screw-C (M2x4), and pull the Relay
lens(In) assy upward off.
Relay lens(In)
assy
A
A
B
C
M2.5x6
M2.5x6
M2.5x6
Mirror(B)
Relay lens(In)
Marking behind
the mirror
Mirror(B) assy

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
