14

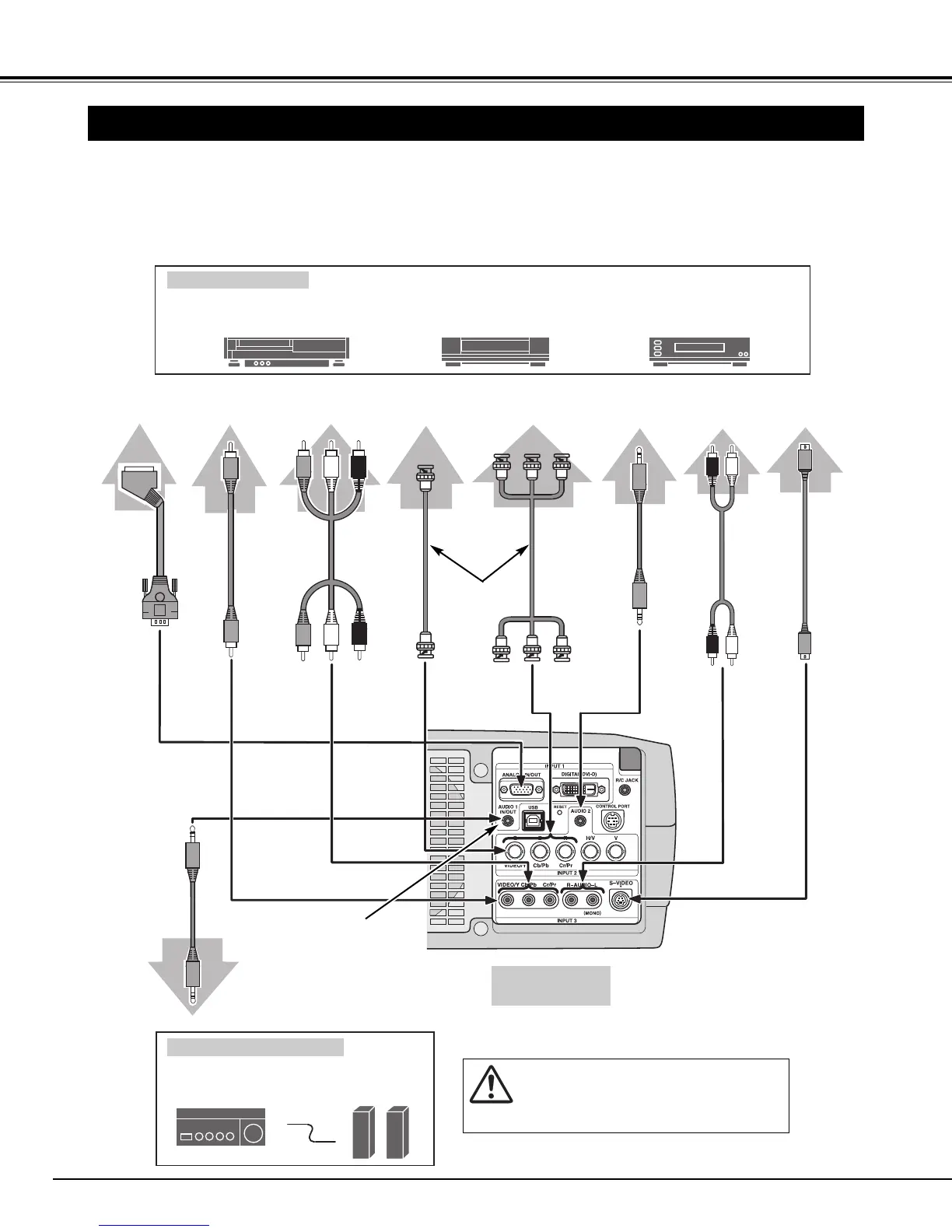

CONNECTING PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
Video Source (Example)
Video Cassette Recorder Video Disc Player
S-VIDEO
Cable
Terminals
of the Projector
S-VIDEO
Output
Cables used for connection ( = Cables not supplied with this projector.)
Audio Cable
(RCA x 2)
AUDIO IN S-VIDEO
Y - Cb/Pb - Cr/Pr
VIDEO
Component video output equipment.
(such as DVD players or high-definition TV sources.)
Composite
Video Output
Component Video
Output
(Y, Cb/Pb, Cr/Pr)
Component Video
Output
(Y, Cb/Pb, Cr/Pr)
Y - Cb/Pb - Cr/Pr
Video Cables
(RCA x 1 or
RCA x 3)
BNC Cable
Audio Output
Composite
Video Output
VIDEO
• Video Cable (RCA x 1 or RCA x 3)
• BNC Cable
• S-VIDEO Cable
• Audio Cable (RCA x 2)
• Audio Cable (Mini Plug [stereo])
• Scart Cable
Audio Speakers
(stereo)
Audio Amplifier
Audio Cable
(stereo)
Audio Input
AUDIO OUT
External Audio Equipment
RGB Scart
21-pin Output
Scart Cable
COMPUTER IN ANALOG
NOTE:
This terminal is switchable.
Set up the terminal as either
Computer input or Monitor
output before using this
terminal.(See page 24.
)
NOTE:
Unplug the power cords of both the projector and
external equipment from the AC outlet before
connecting cables.
Audio
Cable
(stereo)
Audio Output
AUDIO IN
