Sanyo PLC-XP57L User Manual

22

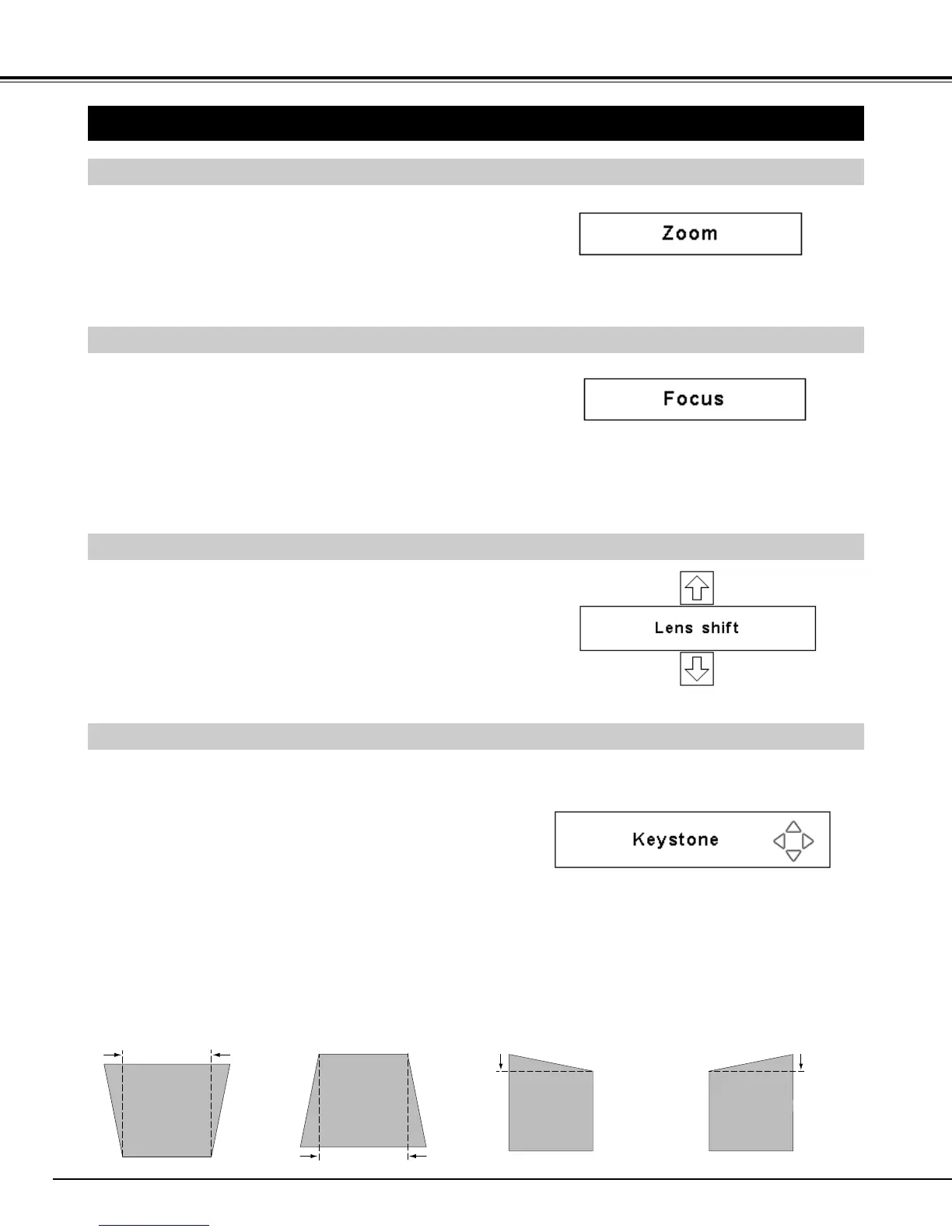

BASIC OPERATION
ADJUSTING SCREEN
“Zoom” disappears after 4 seconds.
“Focus” disappears after 4 seconds.
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
1
Press the ZOOM button on the top control or ZOOM ▲/▼
buttons on the remote control. “Zoom” appears on the screen.
2
Press the ZOOM ▲ button or POINT UP button to make the
image larger, and press the ZOOM ▼ button or POINT DOWN
button to make the image smaller.
1
Press the FOCUS button on the top control or FOCUS ▲/▼
buttons on the remote control. “Focus” appears on the screen.
2
Adjust the focus of image by pressing the FOCUS ▲/▼ buttons
or POINT UP/DOWN buttons.
LENS SHIFT ADJUSTMENT
1
Press the LENS SHIFT button on the top control or LENS SHIFT
▲/▼ buttons on the remote control. “Lens shift” appears on the
screen.
2
Press the POINT UP button or LENS SHIFT ▲ button to move
the image up, press the POINT DOWN or LENS SHIFT ▼ button
to move the image down.
KEYSTONE CORRECTION
1
Press the KEYSTONE button on the remote control or select
Keystone in the SETTING Menu. (See page 38.) The Keystone
dialog box appears.
2
Correct keystone distortion by pressing the POINT
UP/DOWN/LEFT/RIGHT buttons. Press the POINT UP button to
reduce the upper part of the image; press the POINT DOWN
button to reduce the lower part. Press the POINT LEFT button to
reduce the left part; press the POINT RIGHT button to reduce
the right part.
Reduce the upper width
with POINT UP button.
Reduce the lower width
with POINT DOWN button.
If a projected picture has keystone distortion, correct the image with the Keystone function.
Reduce the left part with
POINT LEFT button.
Reduce the right part with
POINT RIGHT button.
• Arrows are white when no correction.
• Arrow(s) in the corrected direction turn(s) red.
• Arrow(s) disappear(s) at the maximum correction.
• If you press the KEYSTONE button on the remote
control once more while the Keystone dialog box is
being displayed, the Keystone function is canceled.
• “Keystone” disappears after 10 seconds.
NOTE:
• Focus adjustment may not function properly if the image is corrected by the
Keystone function.
“Lens shift” disappears after 4 seconds.

Sanyo PLC-XP57L Specifications

General

Number of colors	1.073 billion colors
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	2359296 pixels
Aspect ratio	4:3
Dimensions (WxDxH)	319 x 429.5 x 168 mm
Power requirements	100-240 V AC, 50/60 Hz
Lamp type	UHP
Lamp power	318 W
Light source type	Lamp
Noise level	36 dB
Dot clock scanning frequency	180 MHz
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
Audio (L/R) in	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	5
Component video (YPbPr/YCbCr) in	3
Power consumption (standby)	15 W
Power consumption (typical)	480 W

Weight and Dimensions

Weight	7900 g
