APPENDIX
Turn off the projector and unplug the AC power cord.
Allow the projector to cool for at least 45 minutes.
Loosen the two (2) screws with a screwdriver and pull out
the lamp assembly by using the built in handle.
1
3
Replace the lamp assembly with a new one and tighten
the two (2) screws. Make sure that the lamp assembly is
set properly. Put back the lamp cover and tighten the two
(2) screws.
4
Loosen the two (2) screws with a screwdriver and open
the lamp cover.
2
Connect the AC power cord to the projector and turn on
the projector.
6

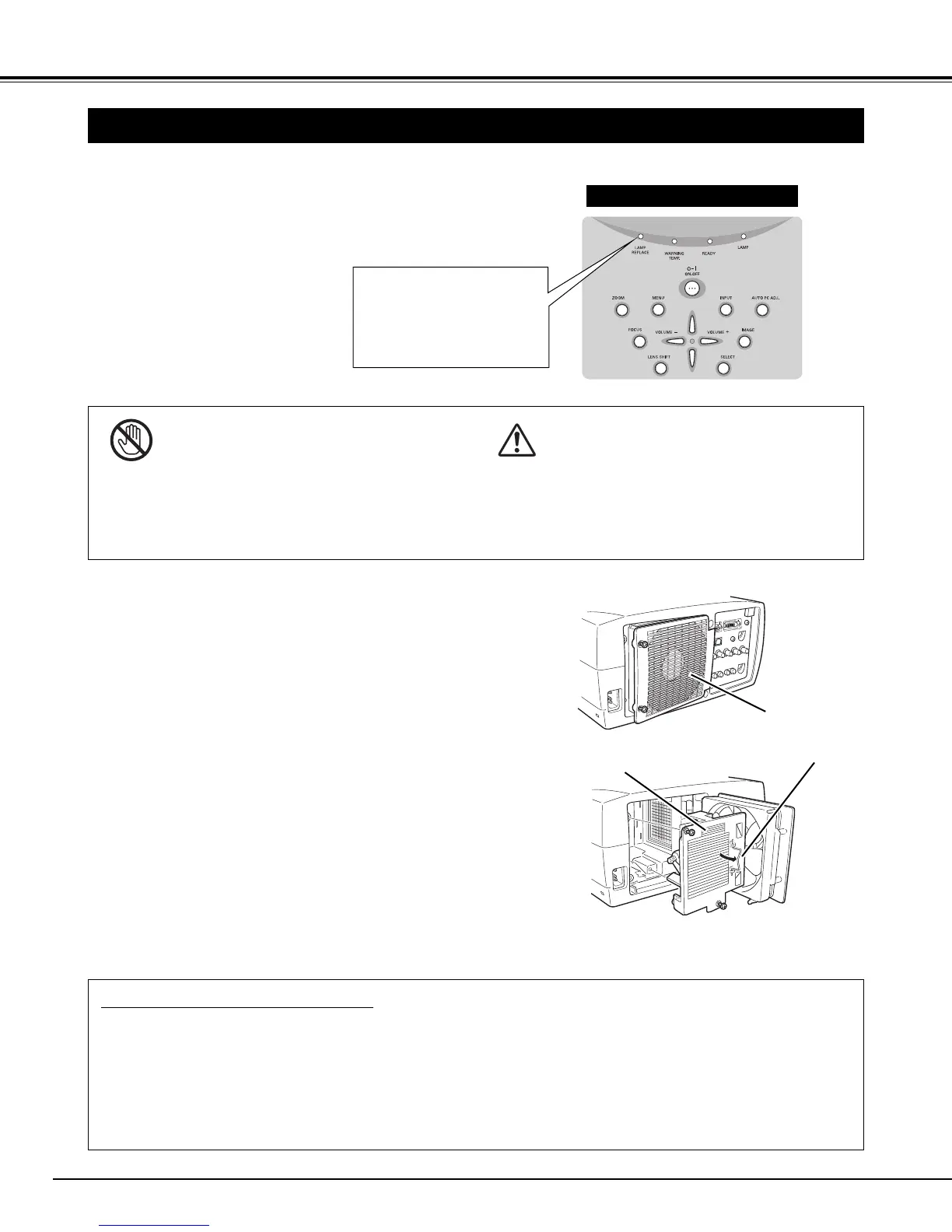

Follow these steps to replace lamp assembly.
Reset the Lamp replacement counter (refer to”LAMP
REPLACE COUNTER” on the next page).
5
LAMP
ASSEMBLY
HANDLE
LAMP COVER
NOTE:
• Do not reset the Lamp replacement counter when the projection lamp is
not replaced.
LAMP REPLACEMENT
When the projection lamp of this projector reaches its
end of life, the LAMP REPLACE indicator lights yellow. If
this indicator lights yellow, replace the projection lamp
with a new one promptly.
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following
information to the dealer.
● Model No. of your projector : PLC-XP57L
● Replacement Lamp Type No. : POA-LMP101
(Service Parts No. 610 328 7362)
For continued safety, replace with a lamp
assembly of the same type.
Do not drop the lamp assembly or touch a glass
bulb! The glass can shatter and may cause injury.
Allow the projector to cool for at least 45 minutes
before you open the lamp cover. The inside of the
projector can become very hot.
This indicator lights yellow
when the projection lamp
reaches its end of life.
Replace the projection lamp
with a new one promptly.
TOP CONTROL
CAUTION
CAUTION
To Next Page
