BEFORE OPERATION
To insure safe operation, please observe following precautions:
● Use two (2) AA or LR6 type alkaline batteries.
● Always replace batteries in sets.
● Do not use a new battery with an used battery.
● Avoid contact with water or liquid.
● Do not expose the remote control to moisture, or heat.
● Do not drop the remote control.
● If a battery has leaked on the remote control, carefully wipe the case clean and install new batteries.
● Danger of explosion if battery is incorrectly replaced.
● Dispose of used batteries according to batteries manufacturers instructions and local rules.
Press the lid downward
and slide it.
Open the battery
compartment lid.
Install new batteries into
the compartment.
Replace the compartment lid.
Two AA size batteries
For correct polarity (+ and
–), be sure battery terminals
are in contact with pins in
the compartment.

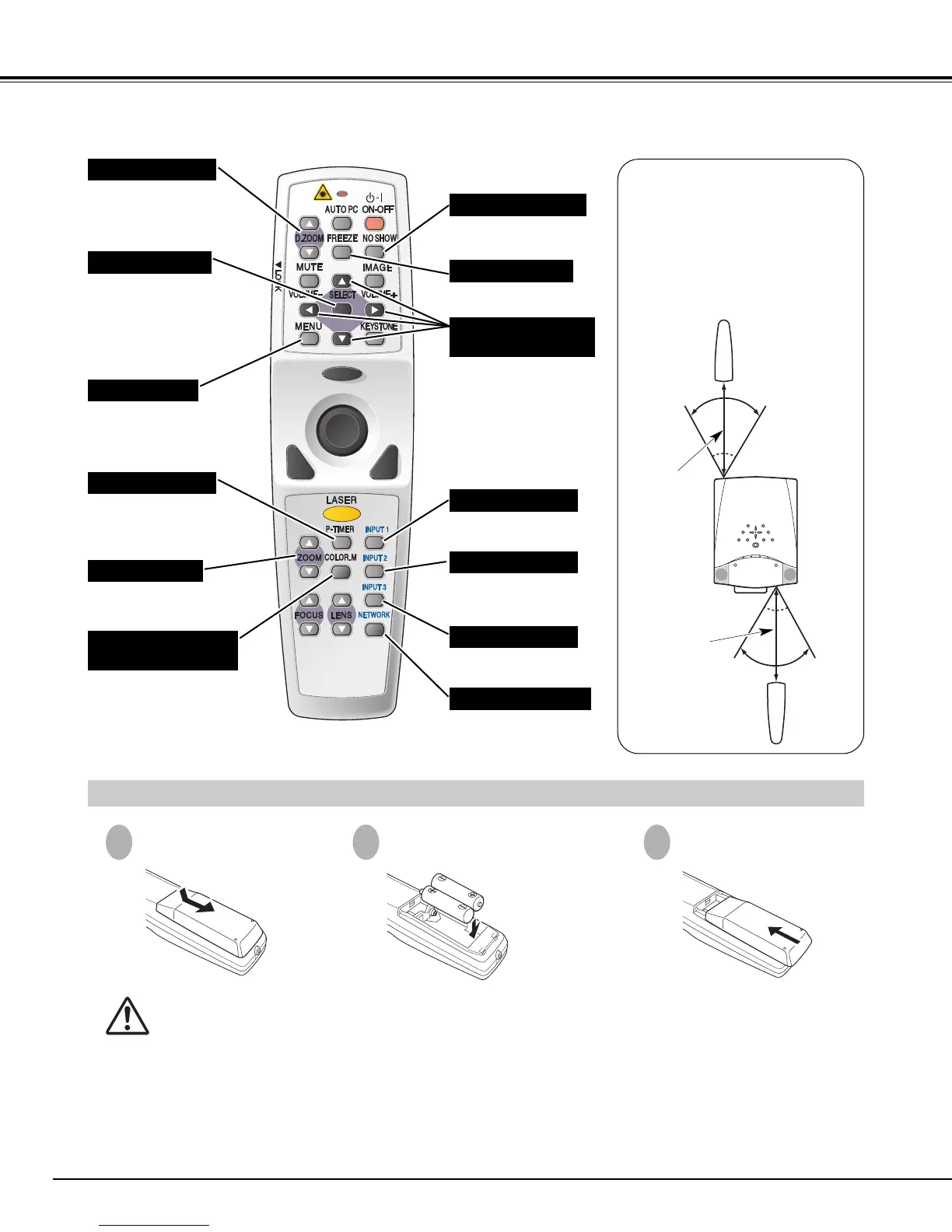

REMOTE CONTROL BATTERIES INSTALLATION
1 2 3
Used to operate the P-
TIMER function. (p.23)
P-TIMER BUTTON
Used to adjust zoom.
(p.22)
ZOOM BUTTON
NO SHOW BUTTON
Used to turn the picture
into a black image. (p.23)
D.ZOOM BUTTON
Used to select the
DIGITAL ZOOM +/– mode
and resize the image.
(p.30)
FREEZE BUTTON
Used to freeze the picture.
(p.23)
MENU BUTTON
Used to select the MENU
Operation. (pp.18, 19)
INPUT 1 BUTTON
Used to select an input
source (INPUT 1). (p.24)
SELECT BUTTON
Used to execute the
selected item, or expand/
compress the image in the
DIGITAL ZOOM +/- mode.
(p.30)
POINT (VOLUME +/-)
BUTTONS
Used to select an item or
adjust a value in On-Screen
Menu. They are also used to
pan the image in the
DIGITAL ZOOM +/- mode.
(p.30)
The POINT LEFT/ RIGHT
buttons are also used as
VOLUME +/- buttons. (p.23)
INPUT 2 BUTTON
Used to select an input
source (INPUT 2).
(pp.25, 31)
INPUT 3 BUTTON
Used to select an input
source (INPUT 3). (p.31)
Operating Range
Point the remote control toward
the projector (a Receiver
Window) when pressing any
button. Maximum operating
range for the remote control is
about 16.4’ (5 m) and 60° in front
and rear of the projector.
16.4’
(5 m)
60°
16.4’
(5 m)
60°
NETWORK BUTTON
Used to select a network
input (optional).
COLOR MANAGEMENT
BUTTON
Used to operate the Color
management function.
(pp.35–36)

Sanyo PLC-XP57L Specifications

General

Number of colors	1.073 billion colors
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	2359296 pixels
Aspect ratio	4:3
Dimensions (WxDxH)	319 x 429.5 x 168 mm
Power requirements	100-240 V AC, 50/60 Hz
Lamp type	UHP
Lamp power	318 W
Light source type	Lamp
Noise level	36 dB
Dot clock scanning frequency	180 MHz
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
Audio (L/R) in	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	5
Component video (YPbPr/YCbCr) in	3
Power consumption (standby)	15 W
Power consumption (typical)	480 W

Weight and Dimensions

Weight	7900 g
