APPENDIX
NOTE: Specifications are subject to change without notice.
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
D-VGA
640 x 480 31.47 59.94
D-480p
720 x 480
(
Progressive
)
31.47 59.88
D-575p
768 x 575
(
Progressive
)
31.25 50.00
D-SVGA
800 x 600 37.879 60.32
D-XGA
1024 x 768 43.363 60.00
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
D-WXGA1
1366 x 768
48.36
60.00
D-WXGA5
1368 x 768
46.50 50.00
D-1035i
1920 x 1035
(Interlace)
33.75 60.00
D-1080i
1920 x 1080
(
Interlace
)
33.75 60.00
D-1080i
1920 x 1080
(Interlace)
28.125 50.00
D-WXGA2
1360 x 768
47.70
60.00
D-WXGA3
1376 x 768 48.36
60.00
D-720p
1280 x 720
(
Progressive
)
37.50 50.00
D-720p
1280 x 720
(
Progressive
)
45.00 60.00
D-SXGA1
1280 x 1024
63.98 60.02
D-SXGA2
1280 x 1024
60.276 58.069
When a input signal is digital from DVI terminal, refer to the chart below.
D-1080psf/30
1920 x 1080 33.75
60.00
D-1080psf/25
1920 x 1080
28.125
50.00
D-1080psf/24
1920 x 1080 27.00
48.00
D-SXGA+ 1
1400 x 1050
63.97 60.19

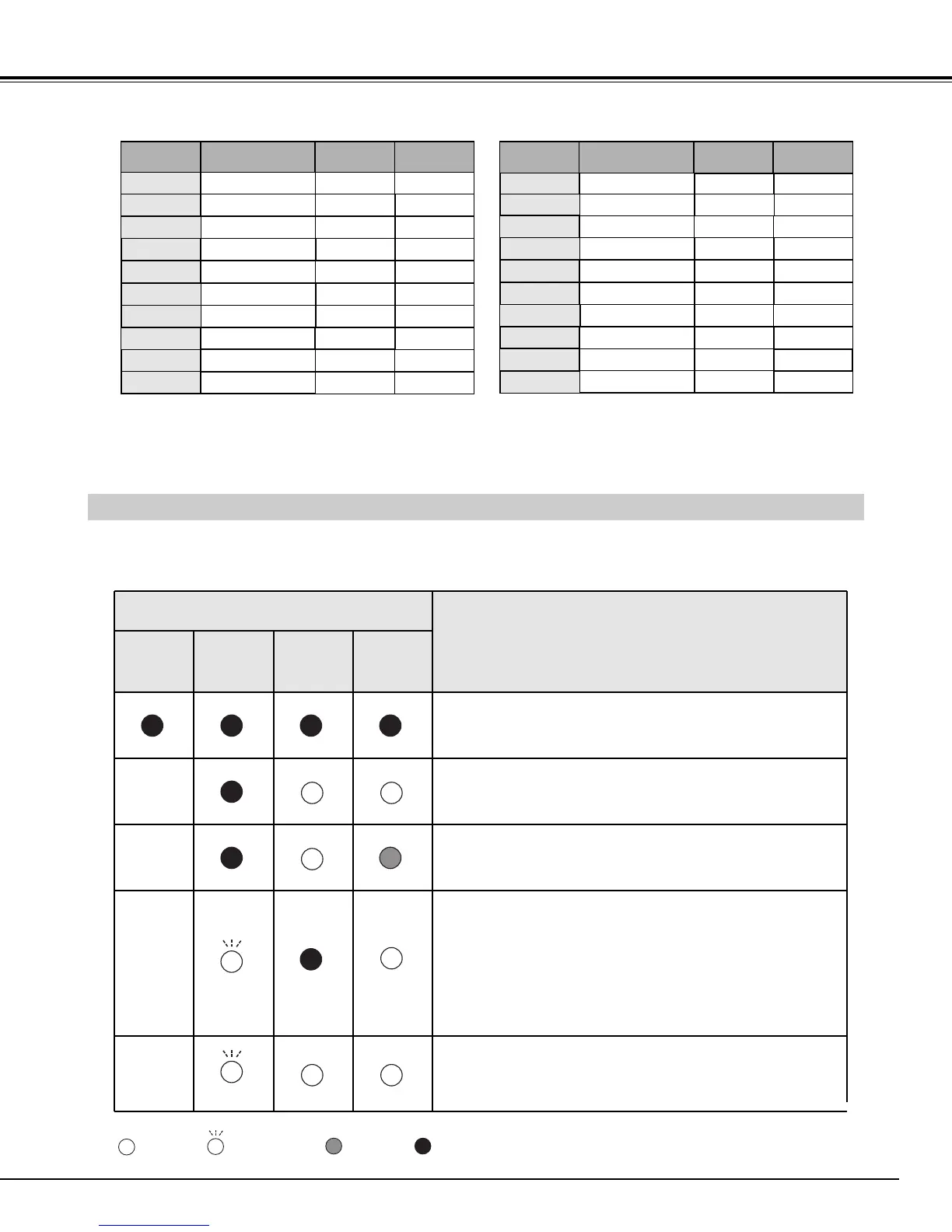

INDICATORS AND PROJECTOR CONDITION
Check the indicators for projector condition.
✳
Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed.
✳
✳
✳
• • • on • • • dim • • • off• • • blinking
The projector is OFF. (The AC power cord is unplugged.)
The projector is ready to be turned on with the POWER ON-
OFF button.
The Warning Temp. indicator blinks red to let you know the
internal temperature of the projector exceeds a normal level. If
the temperature goes up further, the projector will be turned
off automatically and the Ready indicator goes out. When the
projector is cooled down enough and the temperature returns
to normal, the READY indicator lights green and the projector
can be turned on again. (The WARNING TEMP. indicator
keeps blinking.) Check and clean the air filters.
Projector Condition
The projector is operating normally.
The projector is cooled down enough and the temperature
returns to normal. When turning on the projector, the
WARNING TEMP. indicator stops blinking. Check and clean
the air filters.
LAMP
REPLACE
yellow
Indicators
READY
green
LAMP
red
WARNING
TEMP.
red
✽
✽
✽
✽

Sanyo PLC-XP57L Specifications

General

Number of colors	1.073 billion colors
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	2359296 pixels
Aspect ratio	4:3
Dimensions (WxDxH)	319 x 429.5 x 168 mm
Power requirements	100-240 V AC, 50/60 Hz
Lamp type	UHP
Lamp power	318 W
Light source type	Lamp
Noise level	36 dB
Dot clock scanning frequency	180 MHz
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
Audio (L/R) in	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	5
Component video (YPbPr/YCbCr) in	3
Power consumption (standby)	15 W
Power consumption (typical)	480 W

Weight and Dimensions

Weight	7900 g
