MZ7-XT2500, MZ7-XT25L00, KC6-XT2000, KC6-XT20L00
-107-
Electrical Parts List

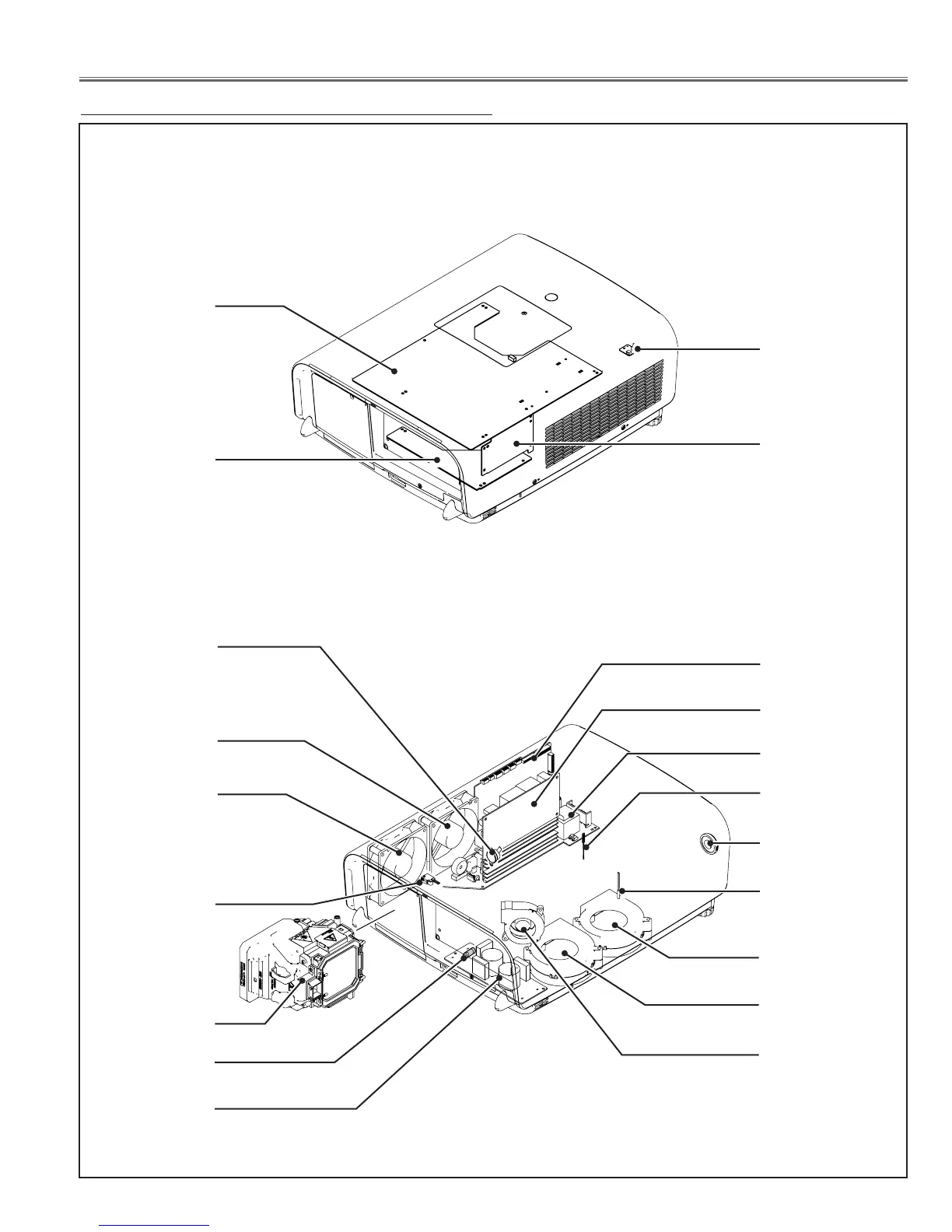

Electrical Parts Location
● Assemblied Boards
FN902
Cooling Fan
(Exhust)
R/C Board
TH901
Thermister(Room)
LP901
Lamp Ass’y
A901
Lamp Ballast
AV Board
● Out Of Circuit Board
Main Board
SP901
Speaker
Joint Board
FN901
Cooling
Fan(Exhust)
FN905
Cooling Fan(Intake)
FUSE
A902
Power(AC)
SW901
Thermostat
TH902
Thermister(Panel)
A903
Power(DC)
FN904
Cooling Fan(Intake)
SW902
Lamp Cover
Switch
FN903
Cooling Fan(Intake)
A904
Power(Filter)
