Sanyo PLC-XT25 User Manual

-86-

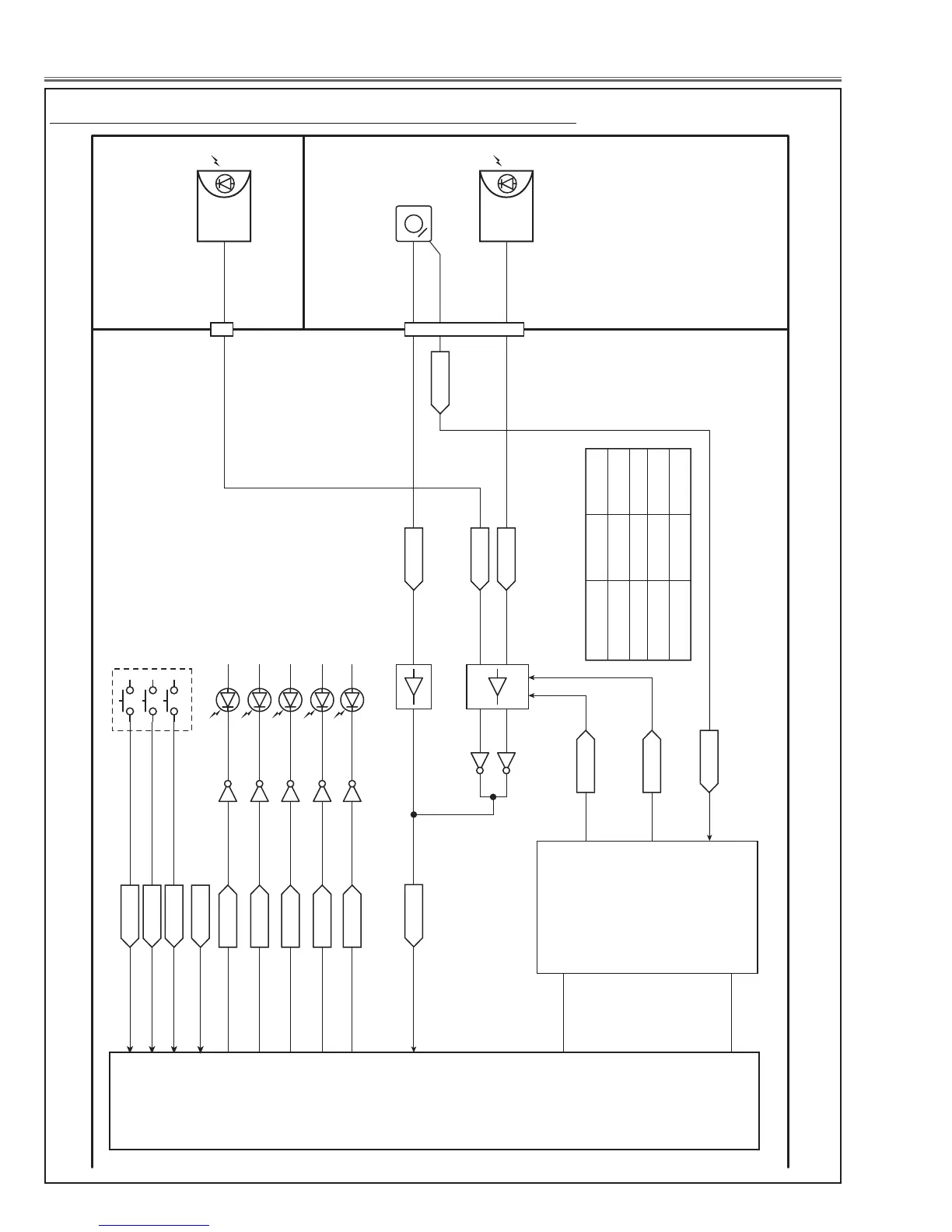

Chassis Description
IC301
SCAN
CONVERTER
&
SYSTEM
CONTROL
<PW190>
KEY1
Wired RC
Jack
A2821
RC Pre-Amp.
A4051
RC Pre-Amp.
K40F K8R
R/C
AV
MAIN
FILTER_LED
28
8 9 3
K28A K8G
1
Q2851 D2851
KEY2
126
KEY3
216
BOX_SW
R/C_PW W-R/C
W _R/C_SW
W _R/C_SW
R/C-FRONT
R/C-REAR
92 182
WARNING FILTER
LAMP_LED
Q2852 D2852
269
LAMP REPLACE
TEMP_LED
Q2853 D2853
184
WARNING TEMP
READY_LED
Q2854 D2854
91
POWER
POWER_LED
R/C_CTL0 R/C_CTL1
Q2856 D2856
Q2801 Q2802
346 214 2
2 5
53 52 97
4 6 3
D[0-7]
LAMP
Key Switches
IC2811
BUFFER
IC2801
BUFFER-SW
IC1801
I/O EXPANDER
<TE7783>
R/C ACTIVE R/C_CTL0 R/C_CTL1 NORMAL L L FRONT ONLY H L REAR ONLY L H WIRED H H
LED drive & RC control stage

Sanyo PLC-XT25 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
