Sanyo PLC-XT25 User Manual

-5-
This projector provides the following circuit protections to operate in safety. If the abnormality occurs inside the projec-
tor, it will automatically turn off by operating one of the following protection circuits.
Circuit Protections
Fuse
A fuse is located inside of the projector. When the POWER
indicator is not lightning, the fuse may be opened. Check
the fuse as following steps.
The fuse should be used with the following type;
Fuse Part No. : 645 090 3144
TYPE T10.0AH 250V FUSE
SKY-GATE : TYPE SG5013010

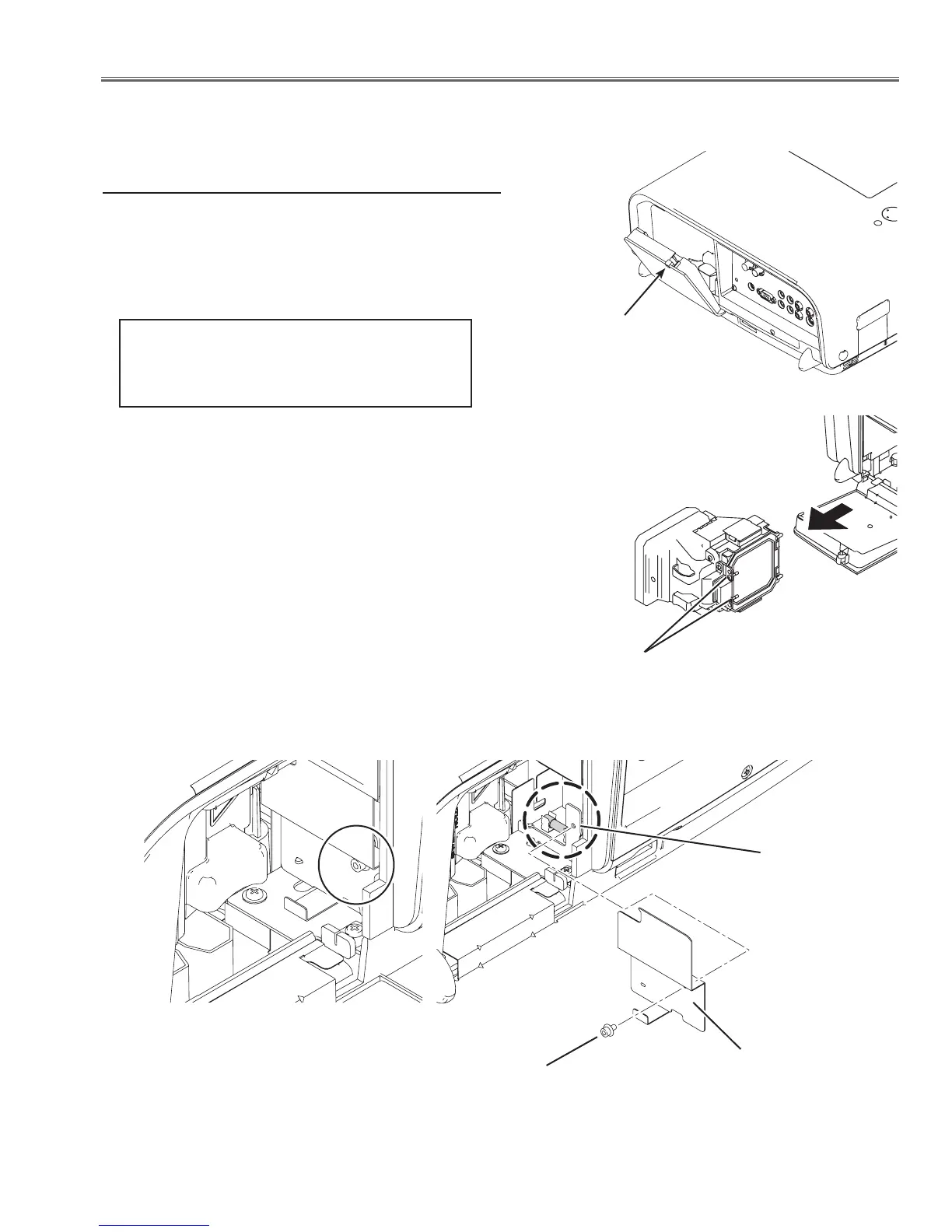

How to replace the fuse
1. Loosen the screw of the lamp cover and open the lamp
cover.
2. Loosen 2 screws of lamp ass'y and pull out the lamp
ass'y.
3. Remove the screw-A and remove the filter board cover
following to "Mechanical Disassemblies".
4. Remove the fuse from fuse holder on the Power(Filter)
board .
To install the fuse, take reversed step in the above.
cvx
Loosen the screw and
open the lamp cover.
Loosen the 2 screws and pull out
the lamp ass'y.
Fuse
Screw-A
Filter board
cover

Sanyo PLC-XT25 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
