Sanyo PLC-XT25 User Manual

-85-

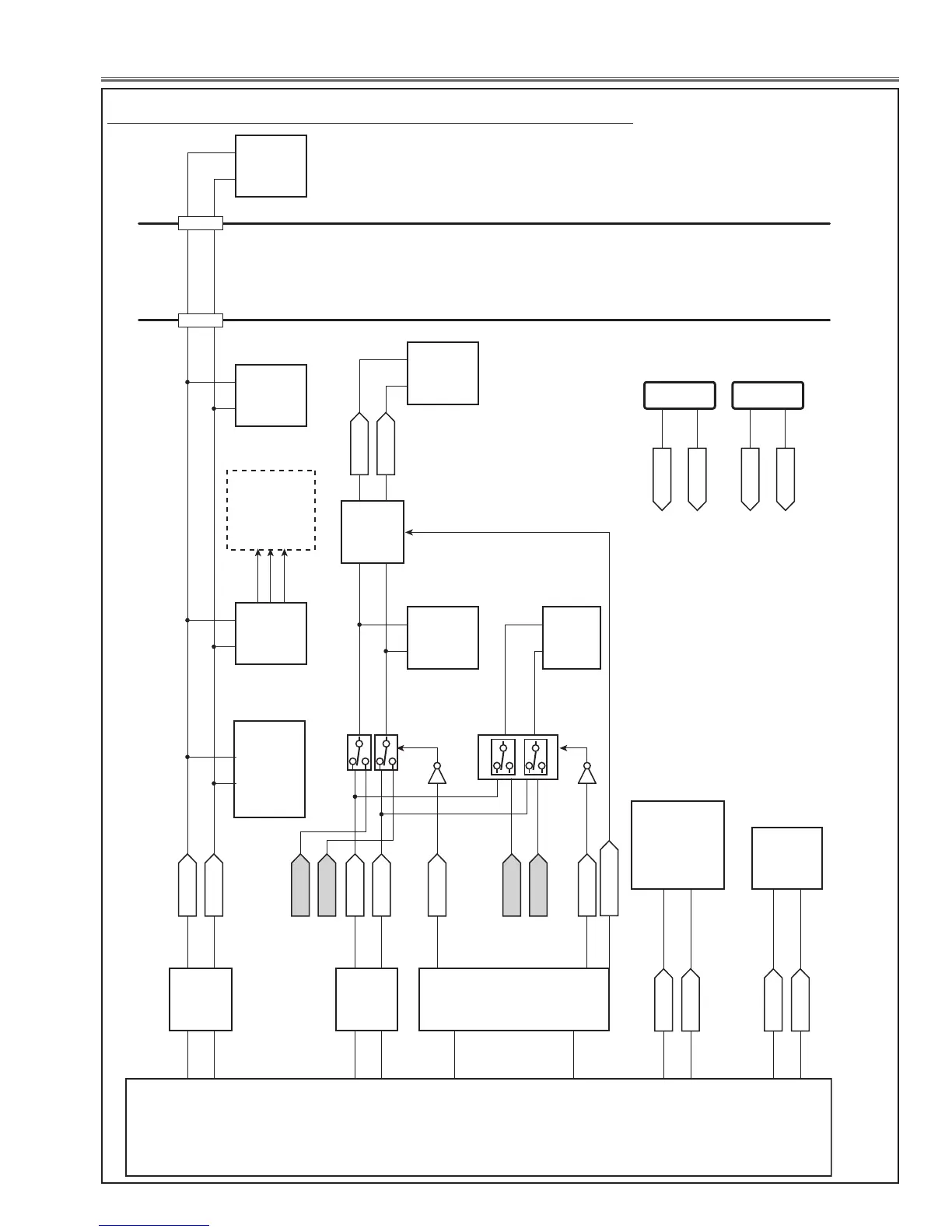

Chassis Description
6
SCL0_S5V
SDA0_S5V
SCL2_S5V
DVI_SCL
DVI_SDA
VGA_SCL
VGA_SDA
SDA2_S5V
DDC_SW1
3
IC301
SCAN
CONVERTER
&
SYSTEM
CONTROL
IC1371
BUS-SW
<TC7WBD125>
IC101
VIDEO SW
& SYNC
<CAX2229>
5 2
212 293
6
SCL3_S3V
SDA3_S3V
SI_SCL
SI_SDA
DVI_SCL
DVI_SDA
VGA_SCL
VGA_SDA
3
IC1351
BUS-SW
<TC7WBD125>
IC1041
DDC-SW
IC8141 IC8131
Q8111
5 2
2 3
6 3
5
7 6 7 6
3 2 1
IC8121
BUS-SW
<TC7WBD125>
5
1,7
2
290 208
D[0-7]
267 344
2 1 14 13 2 1
76 77
FAN
CONTROL
IC7801
DAC
<M62334>
IC8841
TEMP
SENSOR
<LM76CH>
IC5001
AUDIO
OUT
<NJW1141>
1003
IC8001
DVI I/F
<SiI169>
K40E K30A
AV JOINT MAIN
162
6
161
IC3101
DIGITAL
VIEO
DECODER
<CXD3815>
SCL1_S3V
SDA1_S3V
211 294
5
IC1391
CONTROL
MEMORY
6 5
5
4
15
IC8101
DVI HDCP
MEMORY
65
IC1051
VGA HDCP
MEMORY
21 22 23 24
K30B K8S
97 98 99
100
DDC_SW2
7
HDCP_IIC_SW2
Q1061
9-11
DVI-D DSub15
IC1801
I/O
EXPANDER
<TE7783>
Bus control stage

Sanyo PLC-XT25 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
