Optical Adjustment
White
CYAN
MAGENTA
White
CYAN
MAGENTA
a
a
White
CYAN
MAGENT
A
White
CYAN
MAGENTA
b
b

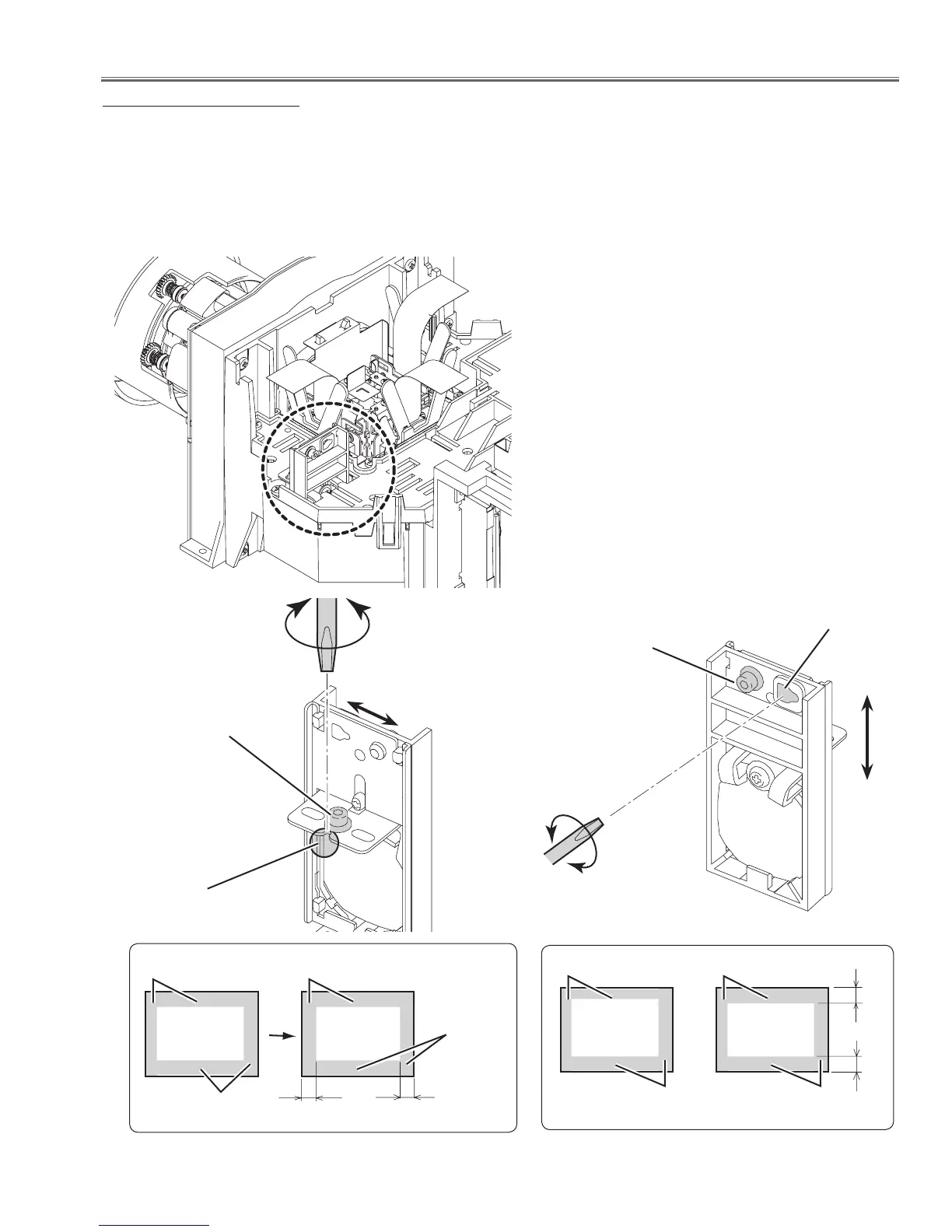

Relay lens adjustment
3. Adjust the slot G.
It is adjusted that cyan and the magenta in the top and bottom part become the same width.
4. Adjust the slot H.
It is adjusted that cyan and the magenta in the right and left part become the same width.
5. Tighten screw C and screw D to fix the relay lens unit.
Screw-C
Slot-G
Screw-D
Slot-H

Sanyo PLC-XT25 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
