Sanyo PLC-XT25 User Manual

MZ7-XT2500, MZ7-XT25L00, KC6-XT2000, KC6-XT20L00
-132-
Mechanical Parts List

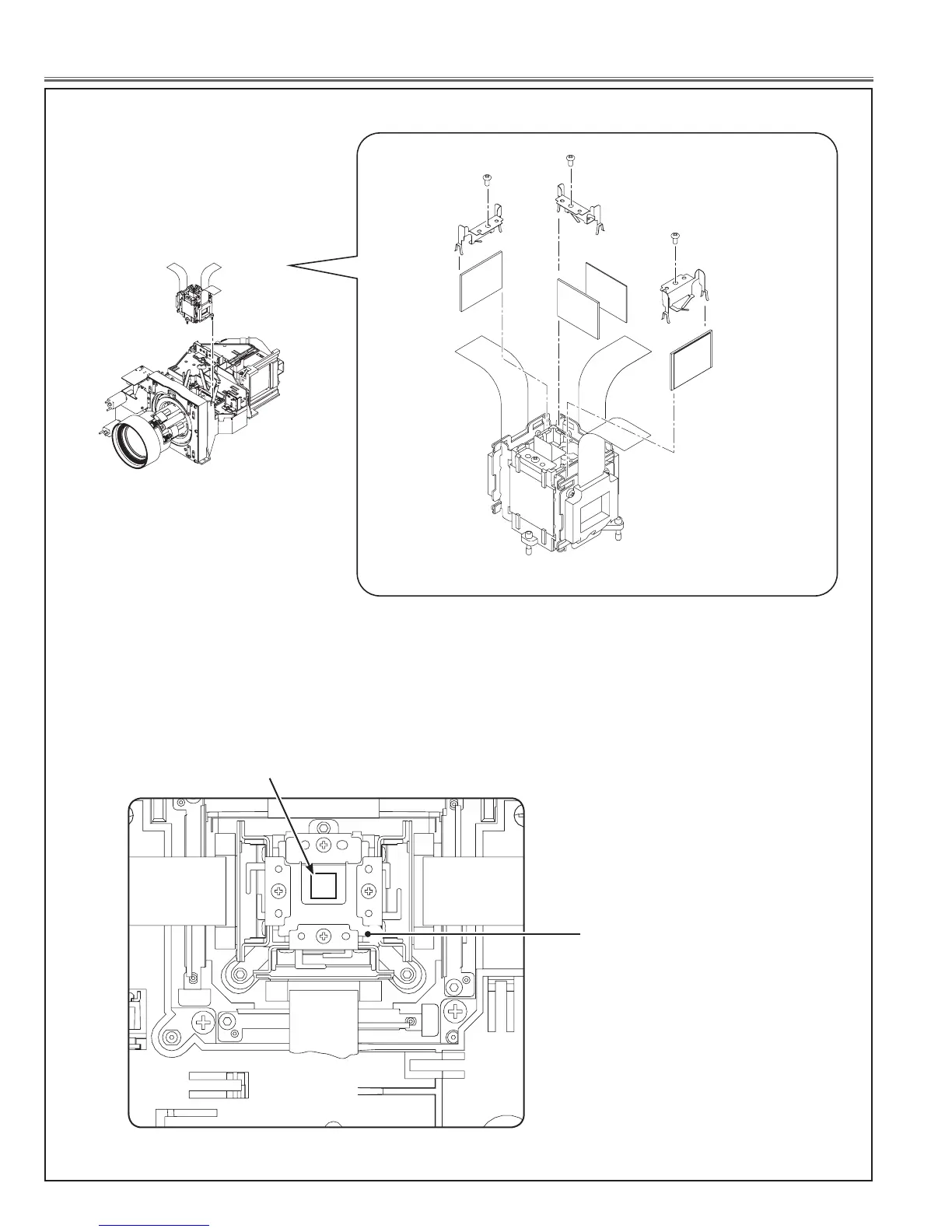

LCD panel / Prism assembly
S7
S7
L02-3
L02
L02-1
L02-4
L02-2
Blue
Red
Green
Note:
There are 2 types of LCD panel/prism assembly, named Type-R and Type-L. When replacing the LCD
panel/prism assembly, replace them with the same type. The type indication label is attached on top of
the LCD panel/prism assembly as shown in the below.
Indication of the Type
R
LCD panel / Prism assembly

Sanyo PLC-XT25 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
