Sanyo PLC-XT25

-20-
Mechanical Disassembly
5

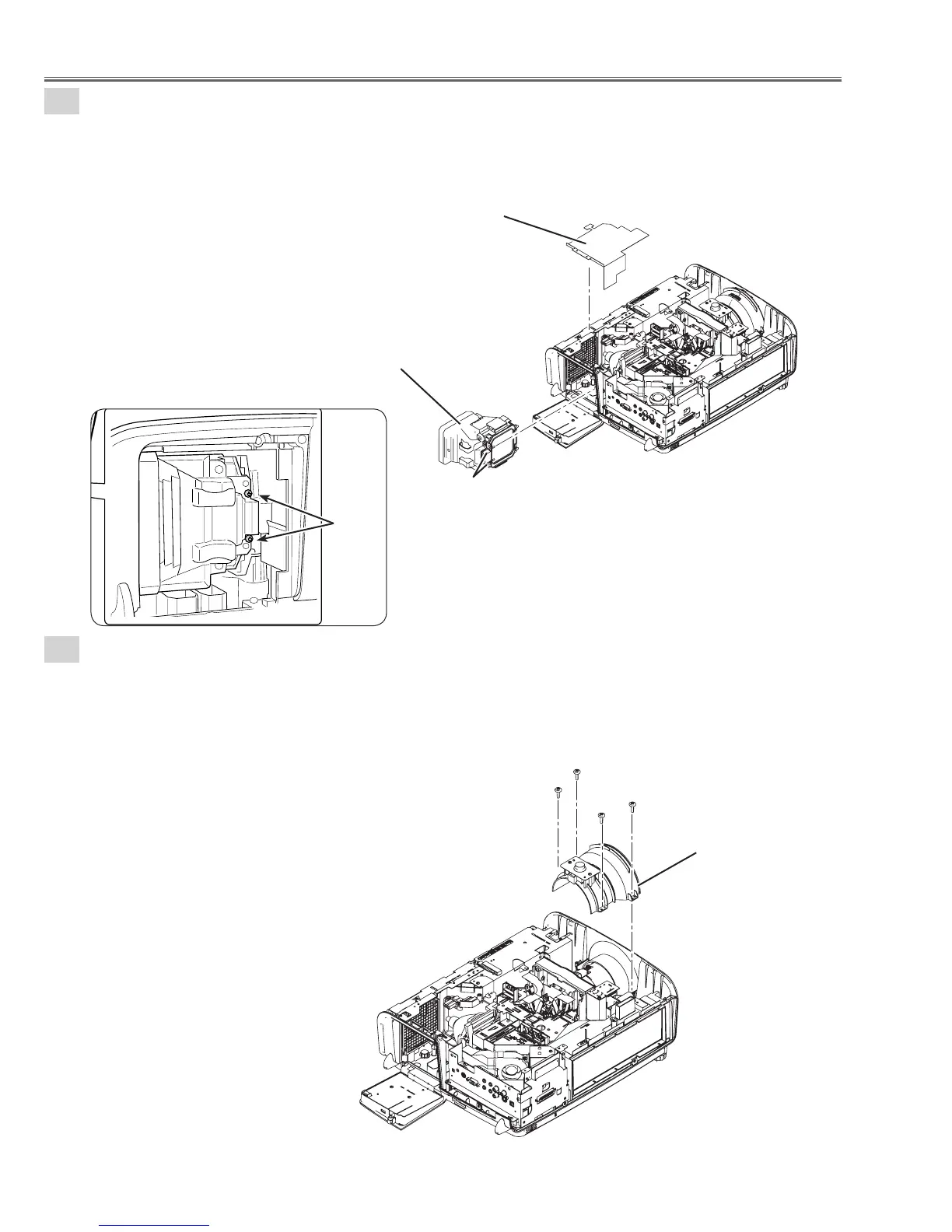

Lamp ass'y removal.
1. Loosen 2 screws-A(M3X13) and remove the Lamp ass'y.
2. Remove the Spacer sheet.
6-1
Lens cover ass'y removal-1.
1. Remove 4 screws-A(T3X8) and remove the Lens cover ass'y.
Fig. 5
A
Spacer sheet
Lamp ass'y
A
A
A
A
Fig. 6-1
Lens cover ass'y
A
