Mechanical Disassembly
18
Lamp cover ass'y disassemblies.
1. Remove 2 screws-A(T3X8) and remove the Shield plate.
19
Lamp cover switch and R/C Front board removal.
1. Remove 1 screw-A(T3X8) and remove the R/C Front board(A2850).
2. Remove 1 screw-B(T3X12) and remove the Lamp cover switch(SW902).
3. Remove the Speaker(SP901) upward.

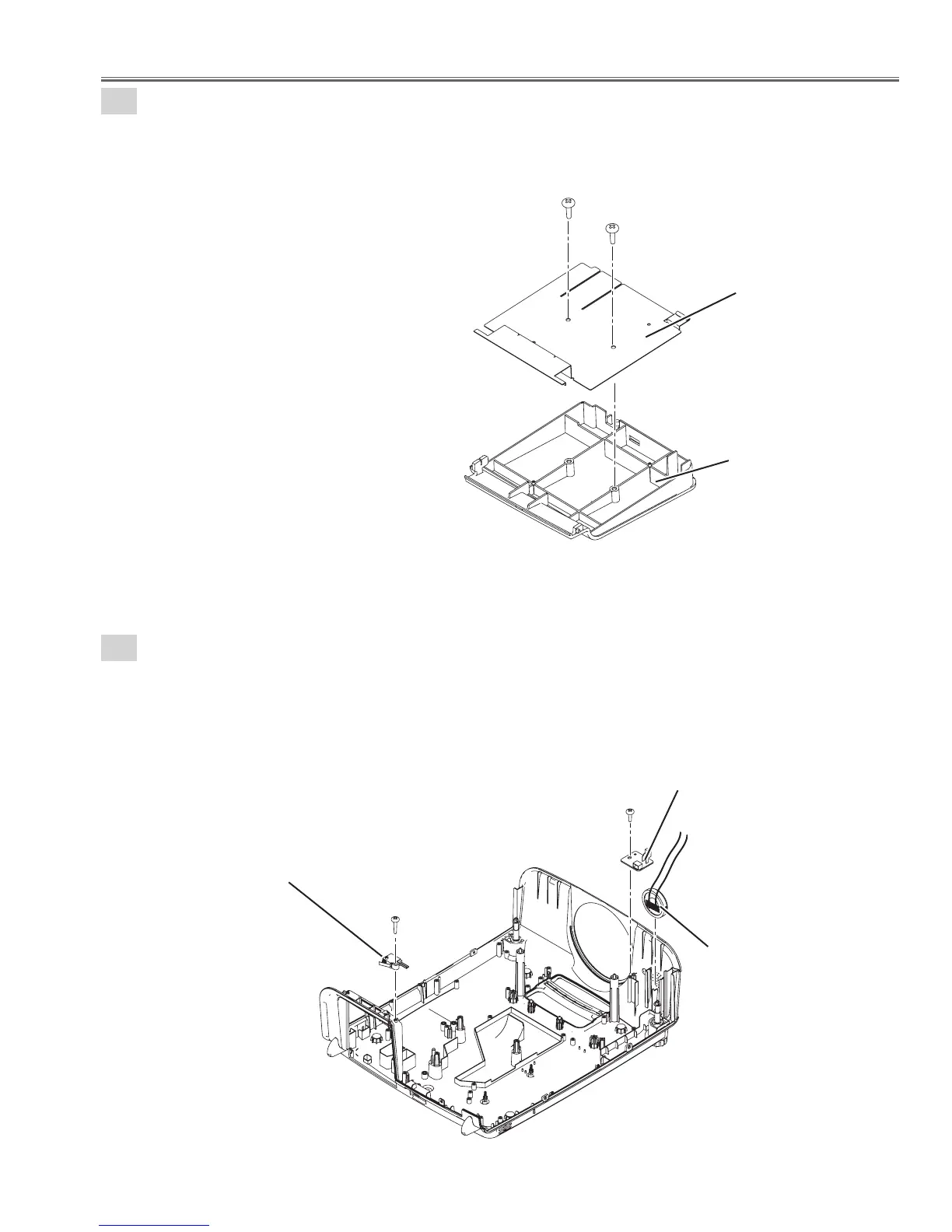

Fig.18
Lamp cover
Shield plate
A
A
Fig.19
Speaker(SP901)
R/C Front board
(A2850)
Lamp cover switch
(SW902)
A
B
