Sanyo PLC-XT25 User Manual

-38-
Optical Parts Disassembly
24

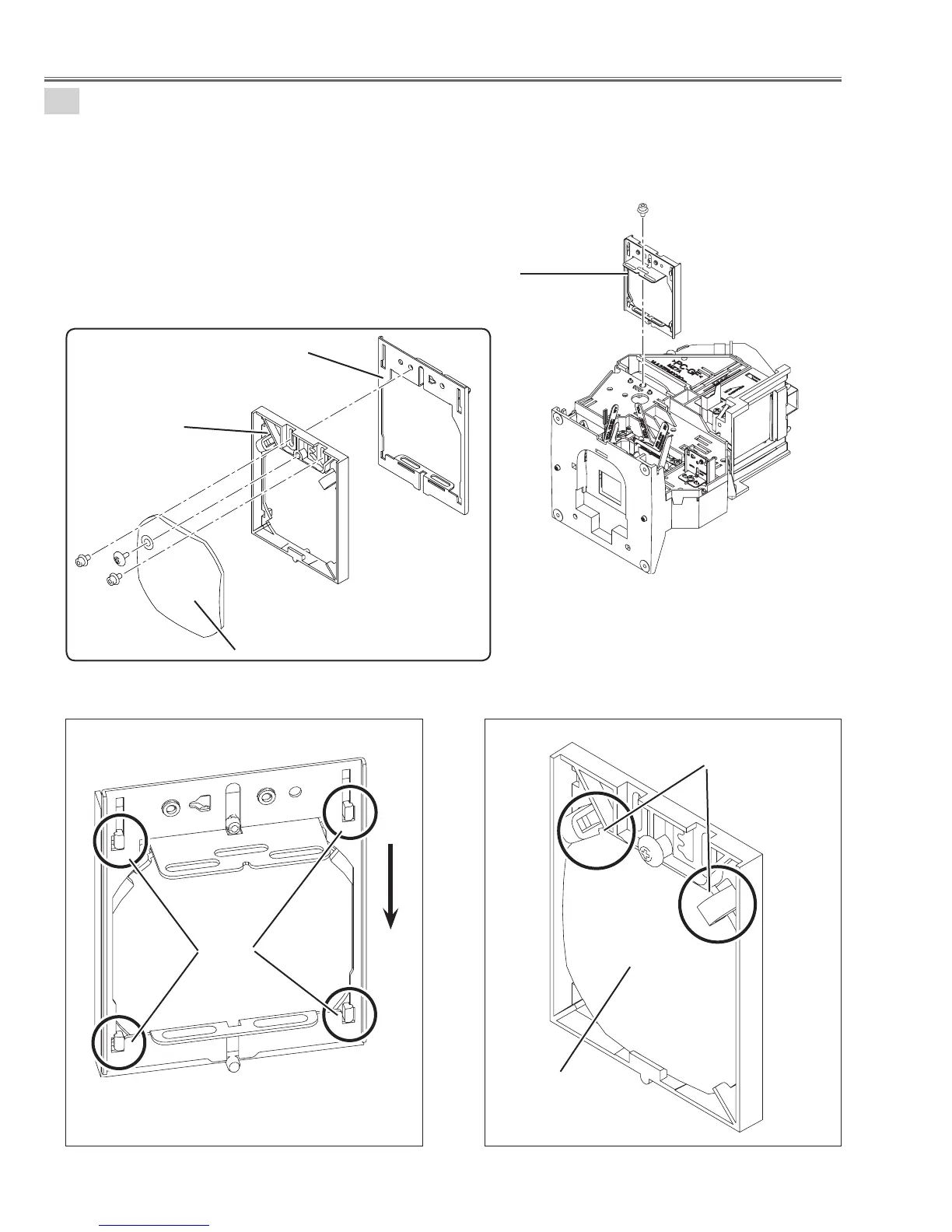

Condenser lens ass'y removal.
1. Remove 1 screw-A(M2.5X5) and remove the Condenser lens ass'y.
2. Remove 2 screws-B(M2.5X5) and remove the Lens holder ass'y.
3. Remove 1 screw-C(T3X6) and remove the Condenser lens.
Fig.24a
Fig.24b
Condenser lens ass'y
A
Condenser lens
Lens holder
Lens holder ass'y
Mounting plate
C
B
B
Hooks
Hooks
Slide the Lens holder ass'y.
Fig.24c
Fig.24d
Condenser lens

Sanyo PLC-XT25 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
