Sanyo PLC-XT25 User Manual

-40-
Optical Parts Disassembly
26

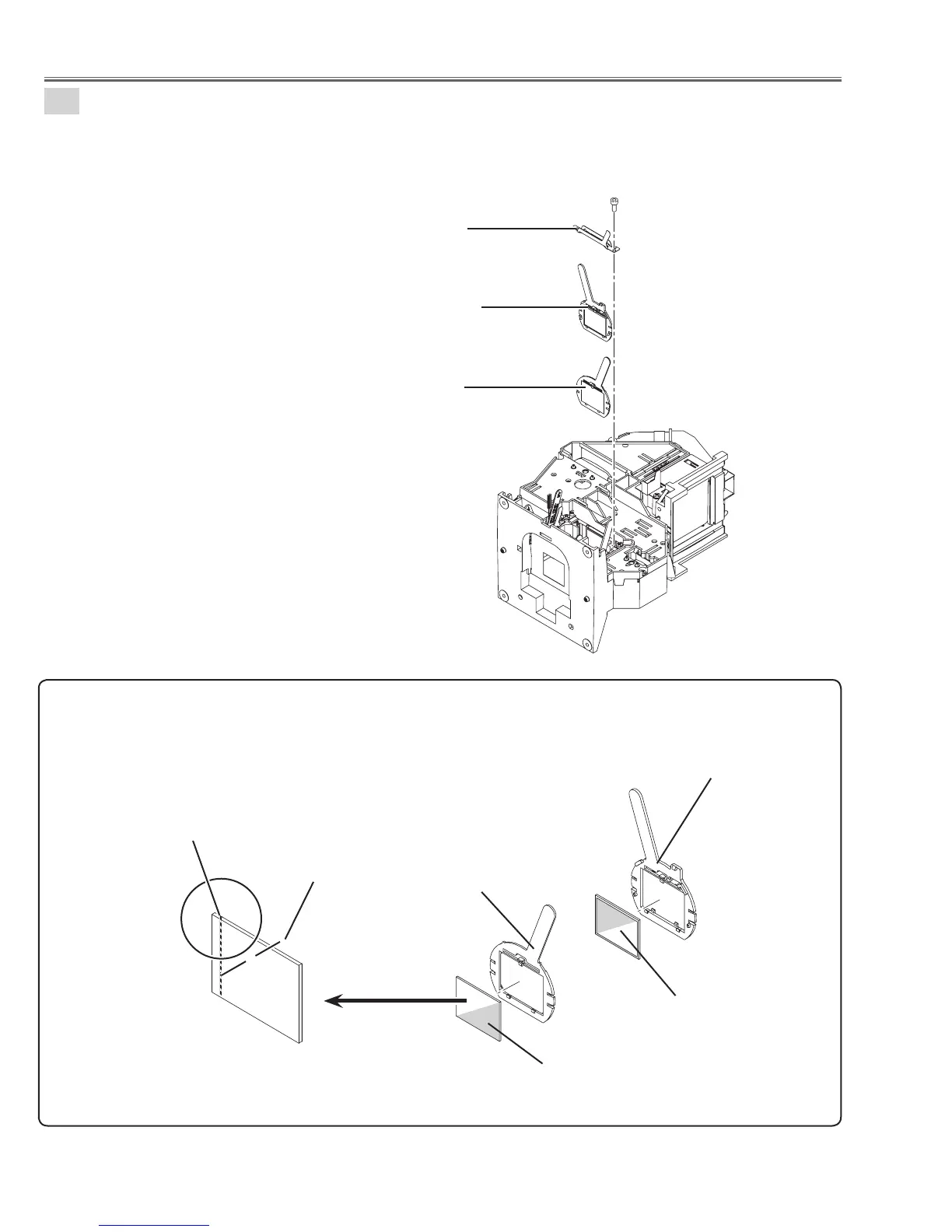

Green Polarized glass ass'y and Optical filter ass'y removal.
1. Remove 1 screw-A(M2.5X6) and remove the stopper.
2. Remove the Polarized glass ass'y and remove the Optical filter ass'y.
Fig.26a
Fig.26b
Stopper
Polarized glass ass'y
Optical filter ass'y
A
wv
P
O
L
Film attached side
comes this side.
Slit comes Polarized
glass side.
Marker comes this
top side.
Holder POL
Polarized glass
Marker comes this top
side. (Green glass)
Optical filter
Holder WV

Sanyo PLC-XT25 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
