10

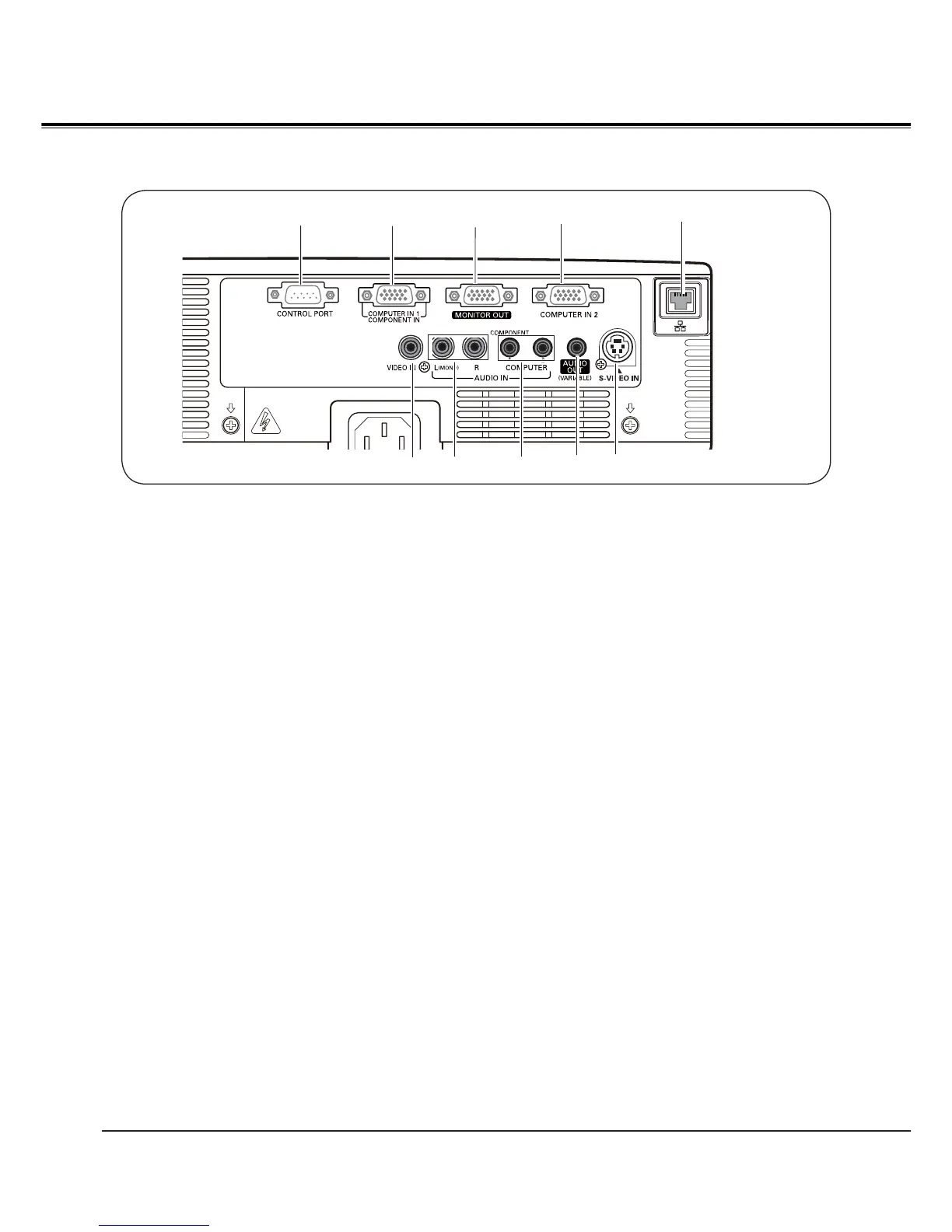

Rear Terminal
⑥ S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.16).
⑨ AUDIO IN
Connect the audio output signal from video
equipment connected to ⑥ or ⑩ to this jack.
For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack (p.16).
⑧ COMPUTER 1 (COMPONENT) / COMPUTER
2 AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to ②
or ④ to this jack (pp.15,17).
⑩ VIDEO IN
Connect the composite video output signal to
this jack (p.16).
② COMPUTER IN 1 / COMPONENT IN
Connect output signal from a computer, RGB scart
21-pin video output or component video output to
this terminal (pp.15,17).
⑦ AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.15-17).
This terminal outputs sound from AUDIO IN
terminal (⑧ or ⑨).
⑤ LAN Connection Terminal
Connect the LAN cable (refer to the owner’s manual
of "Network Set-up and Operation").
⑥
⑩
⑦⑨
① CONTROL PORT
When the projector is controlled by a computer,
connect to this jack with serial control cable.
④ COMPUTER IN 2
Connect computer output to this terminal (p.15).
⑧
Part Names and Functions
③ MONITOR OUT
This terminal can be used to output the incoming
RGB signal from COMPUTER IN 1/COMPONENT
IN terminal or COMPUTER IN 2 to the other monitor
(pp.15,17).
②③①④⑤
