Part Names and Functions

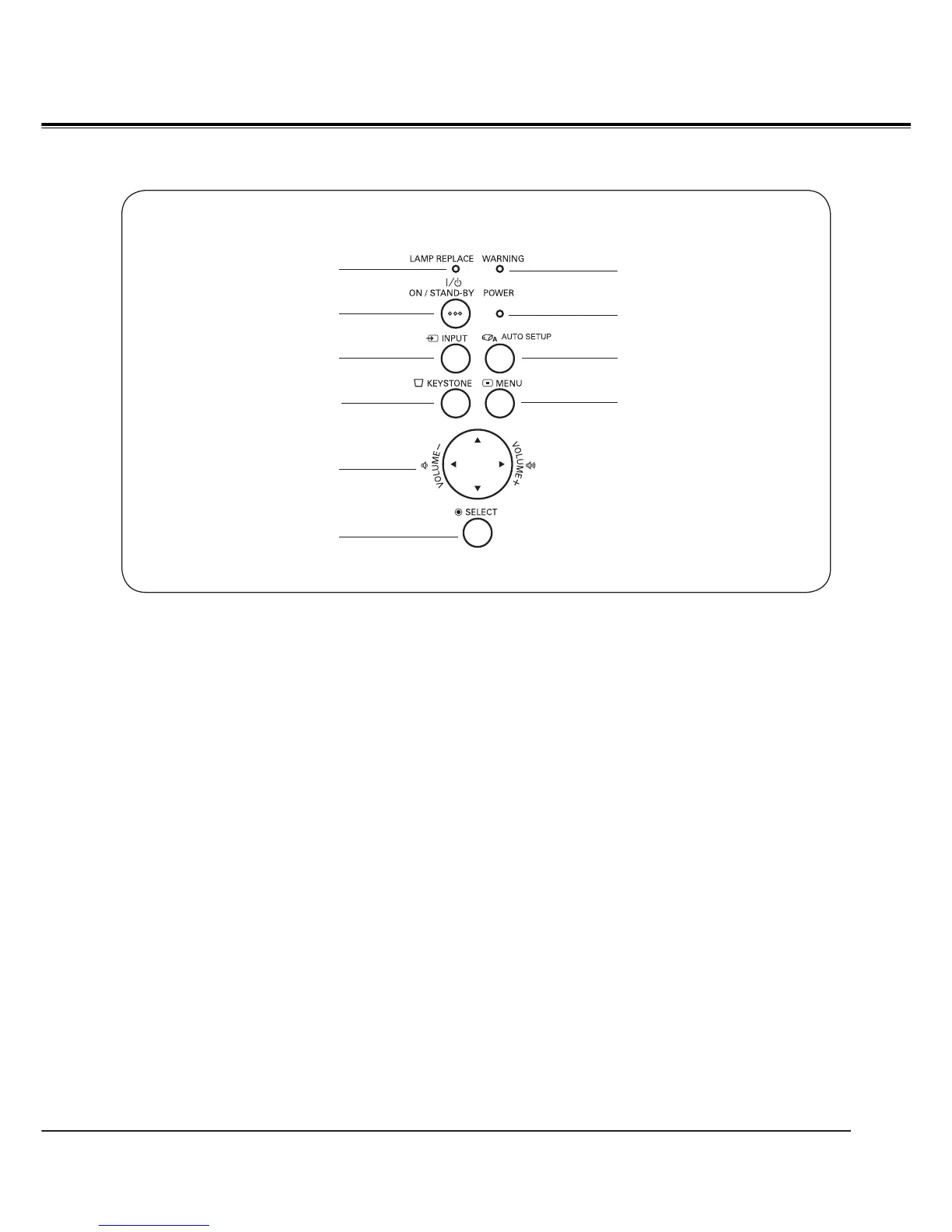

Top Control
① LAMP REPLACE indicator
Lights yellow when the projection lamp reaches its
end of life (pp.57,63).
⑦ WARNING indicator
– Lights red when the projector detects an abnormal
condition.
– Blinks red when the internal temperature of the
projector exceeds the operating range (pp.60, 71).
② ON/STAND-BY button
Turn the projector on or off (pp.19-21).
⑧ POWER indicator
– Lights red when the projector is in stand-by mode.
– Lights green during operations.
– Blinks green in the Power management mode (p.52).
③ INPUT button
Select an input source (pp.29-30, 39-40).
⑩ MENU button
Open or close the On-Screen Menu (p.22).
⑤ 32,17ŸźŻŹ92/80(EXWWRQV
– Select an item or adjust the value in the On-Screen
Menu (p.22).
– Pan the image in the Digital zoom + mode (p.38).
– Adjust the volume level (Point
ŻŹ buttons) (p.26).
⑨ AUTO SETUP button
Execute the setting of Auto setup (includes
Input search, Auto PC adj. and Auto Keystone
functions) in the setting menu. (pp.24, 47).
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑥ SELECT button
– Execute the selected item (p.22).
– Expand or compress the image in the Digital
zoom mode (p.38).
④ KEYSTONE button
Correct Standard (for Vertical/Horizontal
adjustment) or Corner keystone distortion (pp.25,
48).
