Part Names and Functions

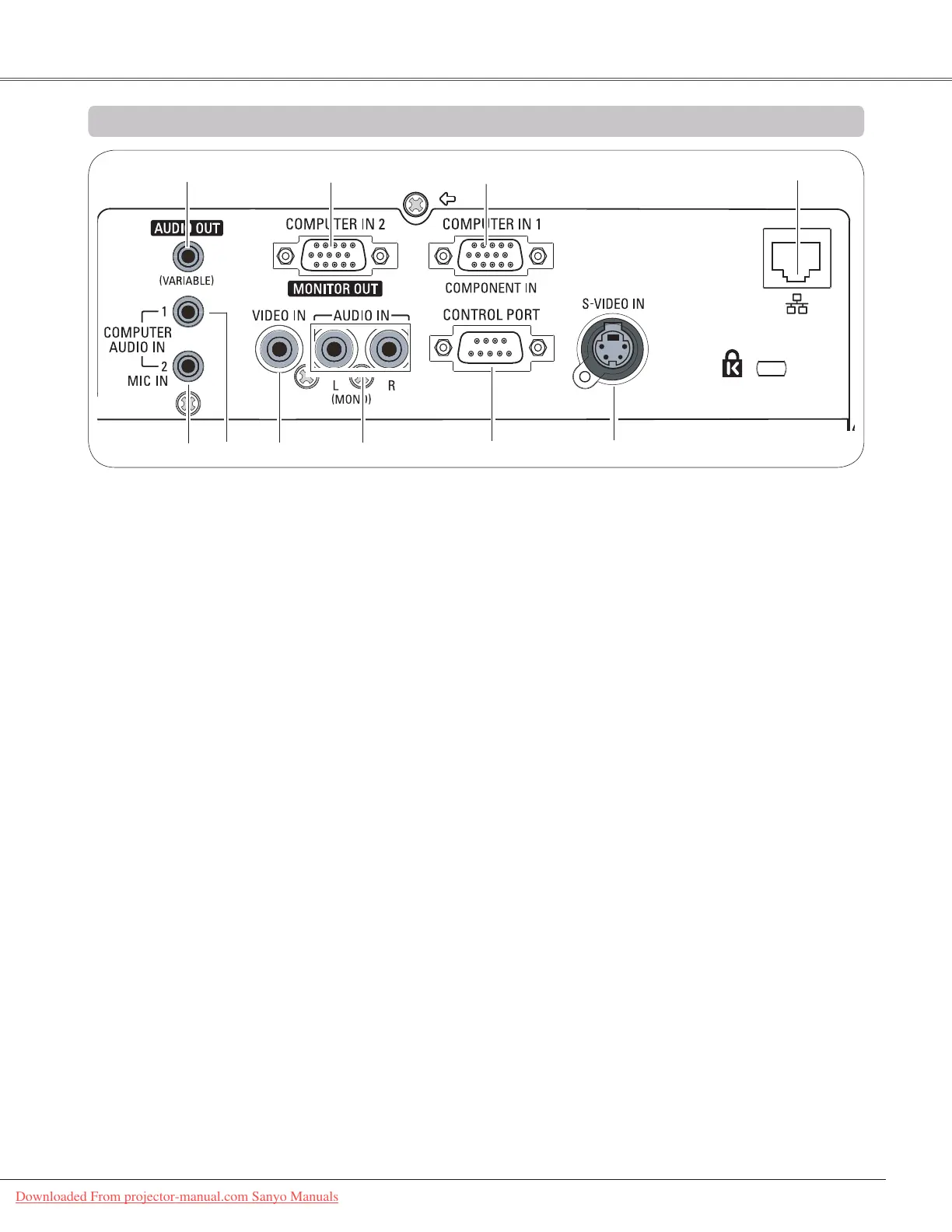

Rear Terminal
⑤ S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.15).
⑦ AUDIO IN
Connect the audio output signal from video
equipment connected to ⑤ or ⑧ to this jack.
For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack (p.15).
⑨ COMPUTER AUDIO IN 1
Connect the audio output (stereo) from a
computer or video equipment connected to ② to
this jack. (pp14, 16).
⑧ VIDEO IN
Connect the composite video output signal to
this jack (p.15).
② COMPUTER IN 1 / COMPONENT IN
Connect output signal from a computer, RGB scart
21-pin video output or component video output to
this terminal(pp.14,16).
④ AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.14-16).
This terminal outputs sound from AUDIO IN terminal
(⑦ or ⑨).
① LAN Connection Terminal
Connect the LAN cable (refer to the owner’s manual
of "Network Set-up and Operation").
②
③ ①④
⑤
⑩
⑥
⑧
⑥ CONTROL PORT
When controlling the projector with RS-232 C,
connect the control equipment to this connector
with the serial control cable.
③ COMPUTER IN 2 / MONITOR OUT
– Connect computer output to this terminal (p.14).
– This terminal can be used to output the incoming
analog RGB and Component signal from
COMPUTER IN 1/COMPONENT IN terminal to the
other monitor (pp.14,16).
⑦
⑨
⑩ COMPUTER AUDIO IN 2 (MIC IN)
Connect the audio output (stereo) from a
computer or video equipment connected to ③ to
this jack. Or connect the MIC to the this jack
(pp14, 16).
