Cabling Diagram (Adapter cable – round – DB25 for Scale)
Female Interface Connector:
25-position D-Submini DB25S with screw lock hardware

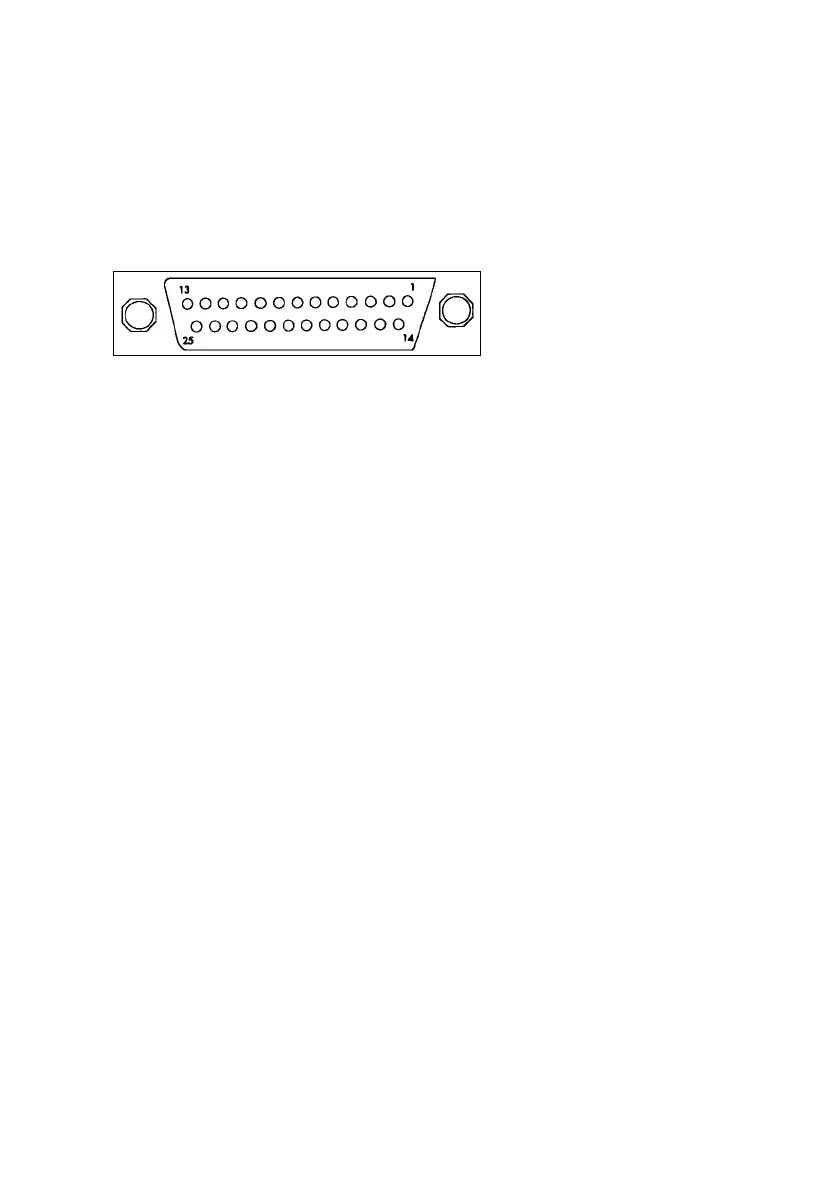

Pin labeling of the 25-position D-SUB connector:
Front view of the connector
Male Connector Used:
(please use connectors with the same specifications)
25-pin D-Submini DB25, with integrated shielded cable clamp assembly
(Amp type 826 985-1C) and fastening screws (mate screws for female screw lock,
Amp type 164 868-1)
!
Note for use with commercially available RS-232 cable:
RS-232 cables purchased elsewhere often have pin assignments that
differ from those of Sartorius connecting cables. Always check the
cabling diagrams of the equipment used before installation, and
disconnect any lines that have inappropriate assignments (e.g. pin 6).
Failure to do so may result in faulty functioning or even irreparable
damage to your scale or the connected peripheral devices.
4–19
