Note:
Press the p/p key (11) to output data.
For information on data output parameters and data
ID codes, see the section entitled “Utilities for Printouts
or Data Transfer.” For details on the data interface
(such as the data output or input format, pin
assignment, etc.), see Part 4, “General Description of
the Data Interface.”
Interfacing Devices with the Scale
Please note that the interface port is electrically
connected to the protective grounding conductor of the

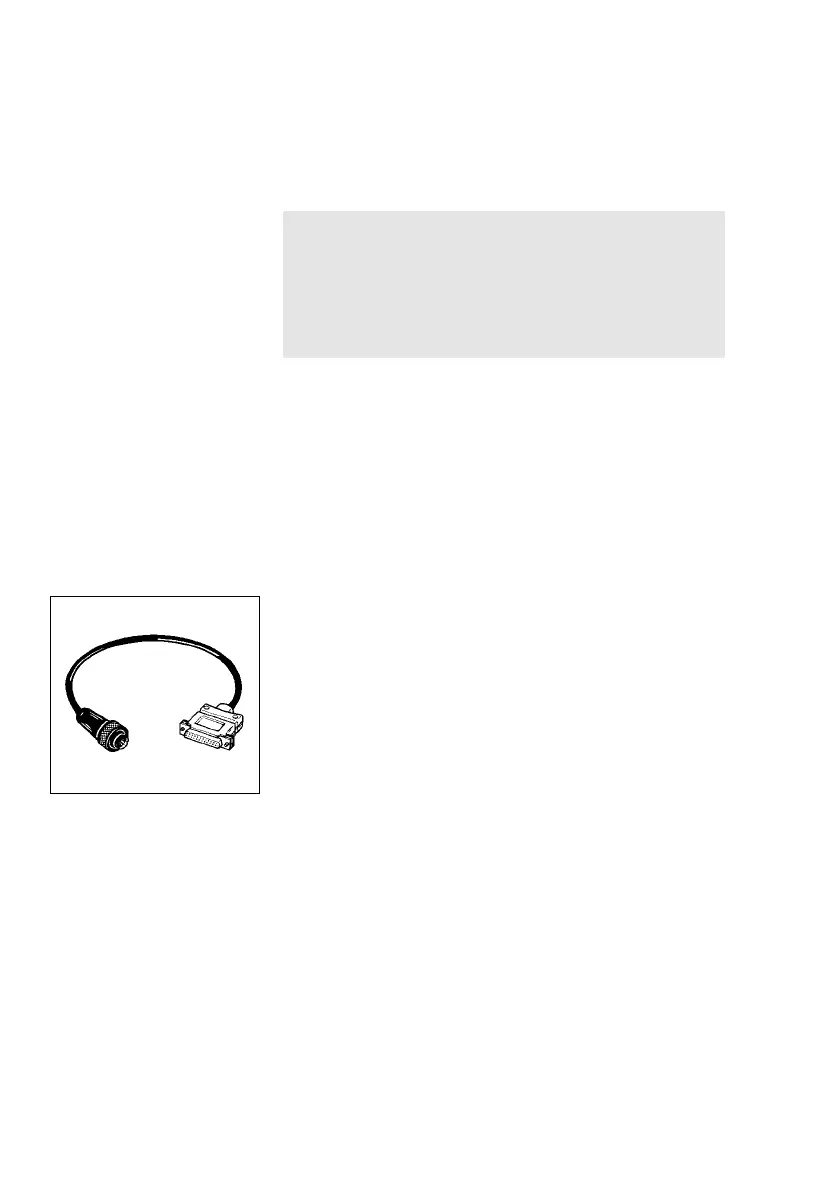

scale housing. The interface cables supplied as
standard equipment are shielded and both ends of
each cable are electrically connected to the connector
cases. This connection may result in interference
caused by ground loops or by transient currents if you
have grounded the housing or connected the
protective grounding conductor for line power.
If necessary, connect an equipotential bonding
conductor to the scale.
If you use the QC scale in a Zone 2/Class I, Div. 2
hazardous area/location, the QC equipment
must be completely disconnected from AC power
before you connect or disconnect any cables
to or from the equipment. The same applies to all
accessories operated with the system.
1–40
