Use only original Sartorius AC adapters. Use of AC
adapters from other manufacturers, even if these units
have a registered approval rating from a national
testing laboratory, requires the approval of an
authorized Sartorius service technician.
To operate the scale using an external rechargeable
battery pack, see the section entitled “Accessories
(Options)”.

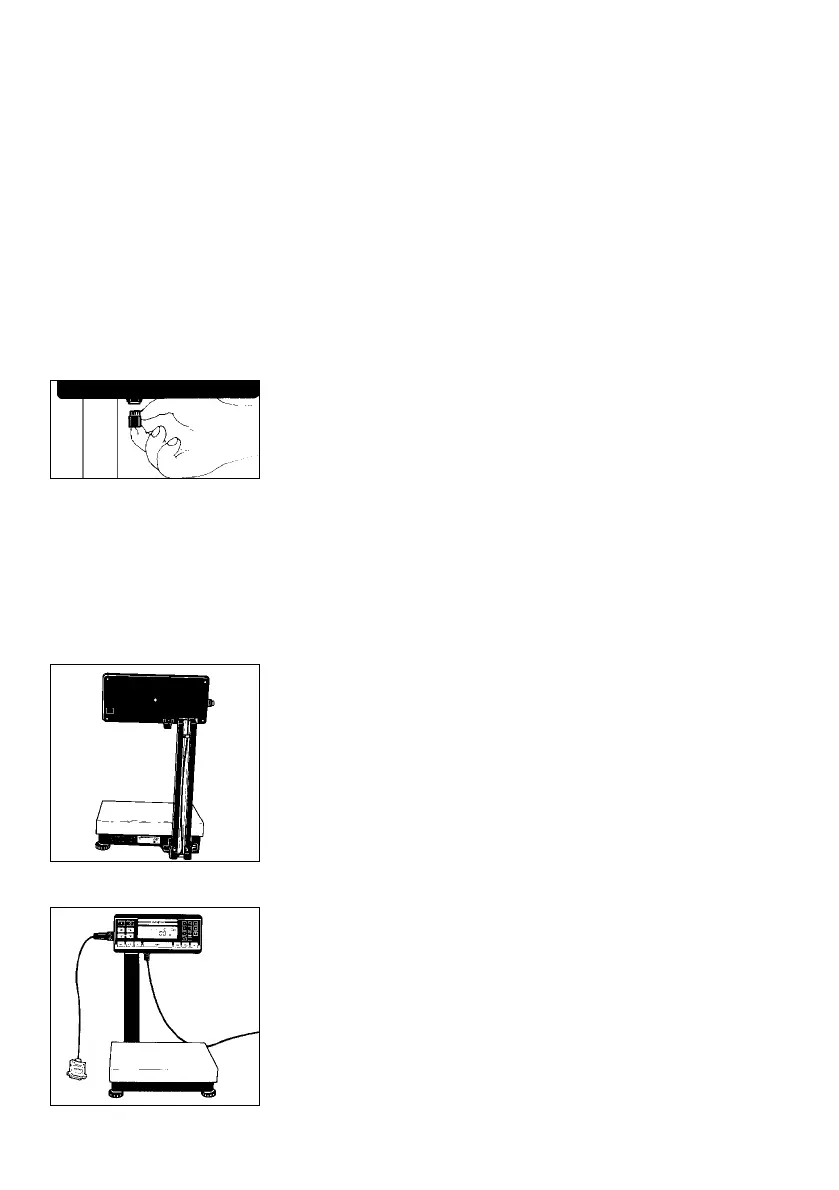

First insert the right-angle plug into the jack on the scale
as shown (2) and tighten the screw.
The IP 65 protection rating is ensured only if the square
rubber gasket is installed and the plug
is connected securely to form a leak-tight seal.
!
Installation within Safe Areas:
Plug the AC adapter into a wall outlet (mains).
Note:
Thread the AC adapter cable through the channel
(raceway) on the support arm (27).
Slide the clips (6) into position to keep the cable from
slipping out of the raceway.
Safety Precautions
The AC adapter, rated to Class 2 (double insulation)
can be plugged into any wall outlet without taking any
additional safety precautions. The pole of the output
voltage is connected to the scale housing, which can
be grounded for operation.
The interface is also electrically connected to the
scale housing (ground) (see also “Data Interface” on
page1–39).
