The IP 65-protected ING-2 no. 69 71899 AC adapter
is completely encapsulated and can be installed as a
stationary unit. To use a main feeder cable from the
ceiling or to mount a CEE plug, you will have to make
arrangements.

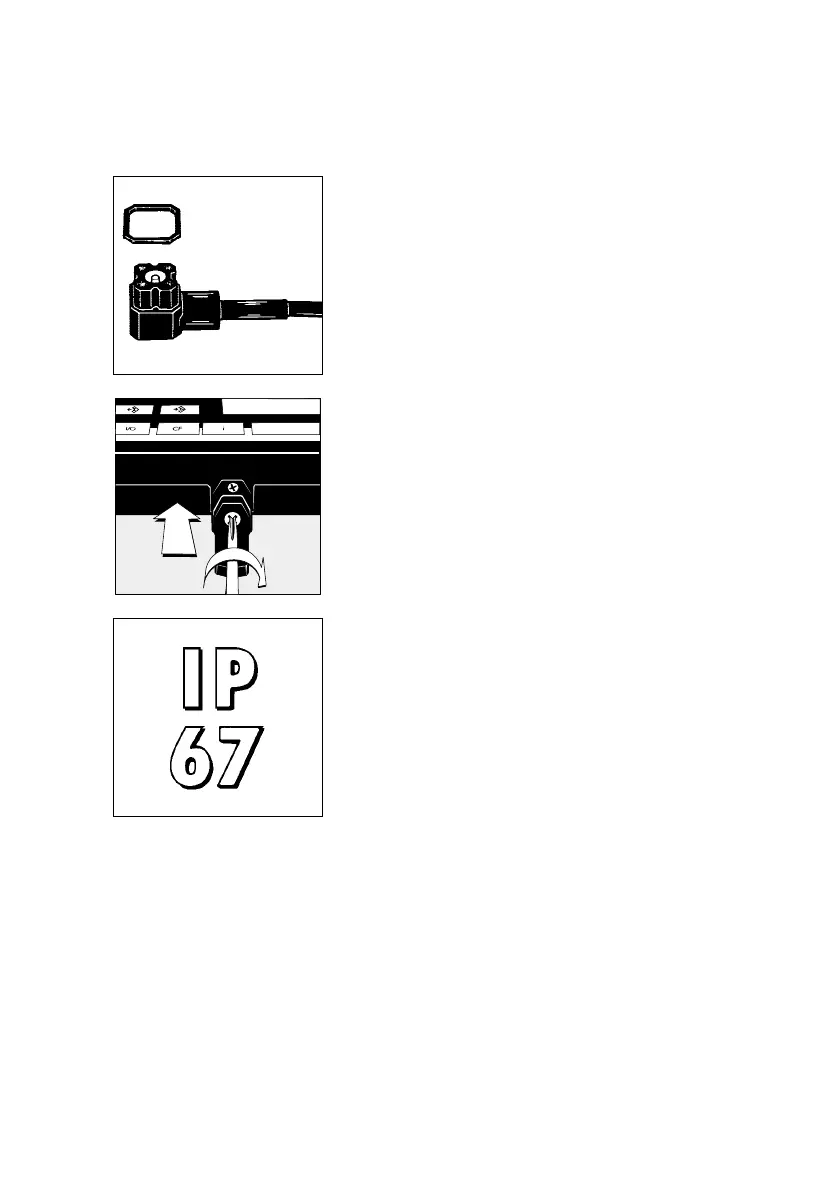

The IP 65 protection rating is ensured only if the square
rubber gasket is installed and the plug is connected
securely to form a hak-tight seal.
Ensure IP protection (Tighten the screw).
IP65 Protection (Painted Models) or IP67 Protection
(Stainless Steel FEP-I, IGP-I, FES-I and IGS-I Models)
The weighing platform is dusth-tight and washdown-
resistant in conformity with the IP65 or IP67 protection
rating, depending on the model.
Legend to Protection Ratings
First digit: rating 6 indicates resistance to penetration
by dust particles of a specified size. Second digit:
rating 5 indicates resistance to splashes of water,
as well as washdown-resistance. Rating 7 indicates
resistance to penetration by water during 30 minute
immersion up to a depth of 1 meter (apporoximately
3
1
/
4
feet).
IP65 or IP67 protections is only guaranteed if:
– the junction box seal was installed by a qualified
technician, and
– the connecting cables and cable glands were
installed and connected by a qualified technician.
1–25
