Mounting the Raised Display Unit on the Short Side
of the Scale
First, decide whether you want to mount the display on
the short side or on the back (long side) of the scale.
! Please follow the instructions given on page1–12
before you begin to change the display mounting.

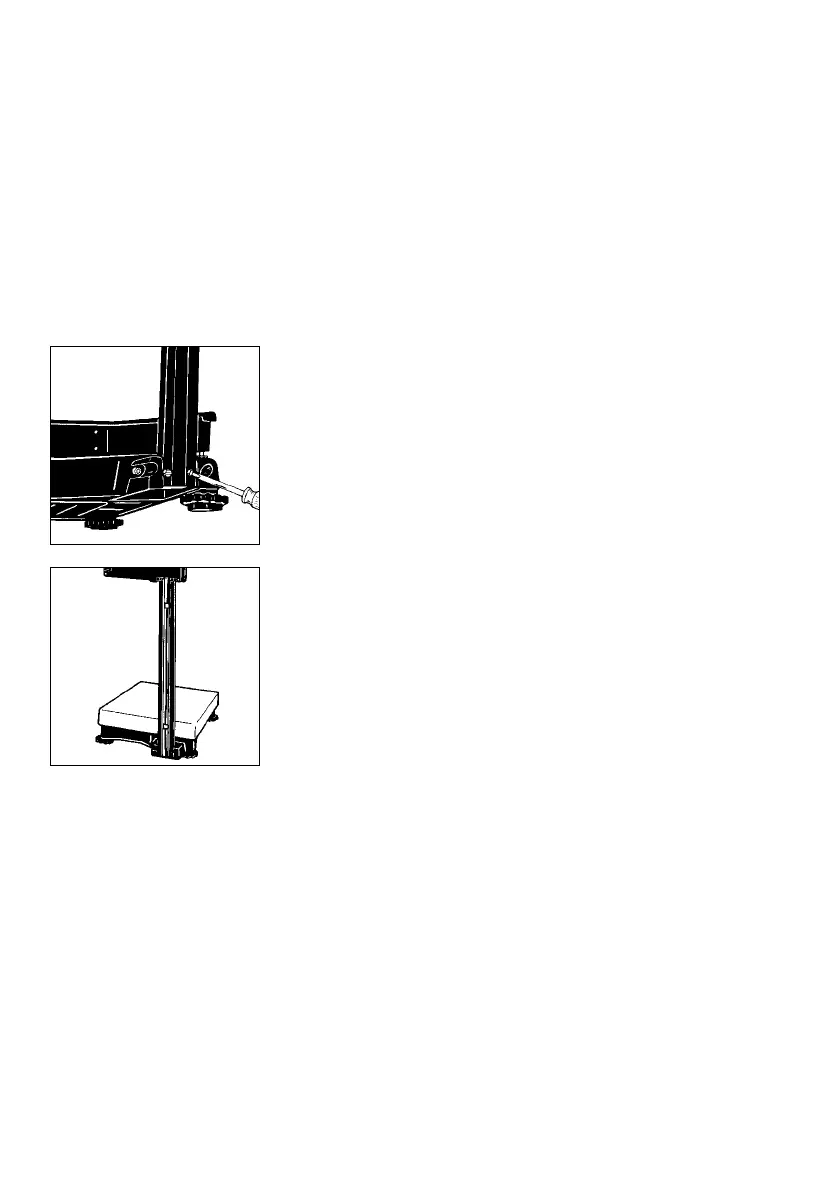

Fasten the support arm to the base.
Note:
Use the center row of threaded drill holes when
inserting the screws.
Slide the clips into position to keep the cable from
slipping out of the raceway (channel).
1–14
