SBC PCD7.D450WTP Series - Panel Connector Definitions

1-2
Saia-Burgess Controls AG
27-621 ENG07 – Manual – Web Panel MB - PCD7.D450WTPx and PCD7.W470WTPx

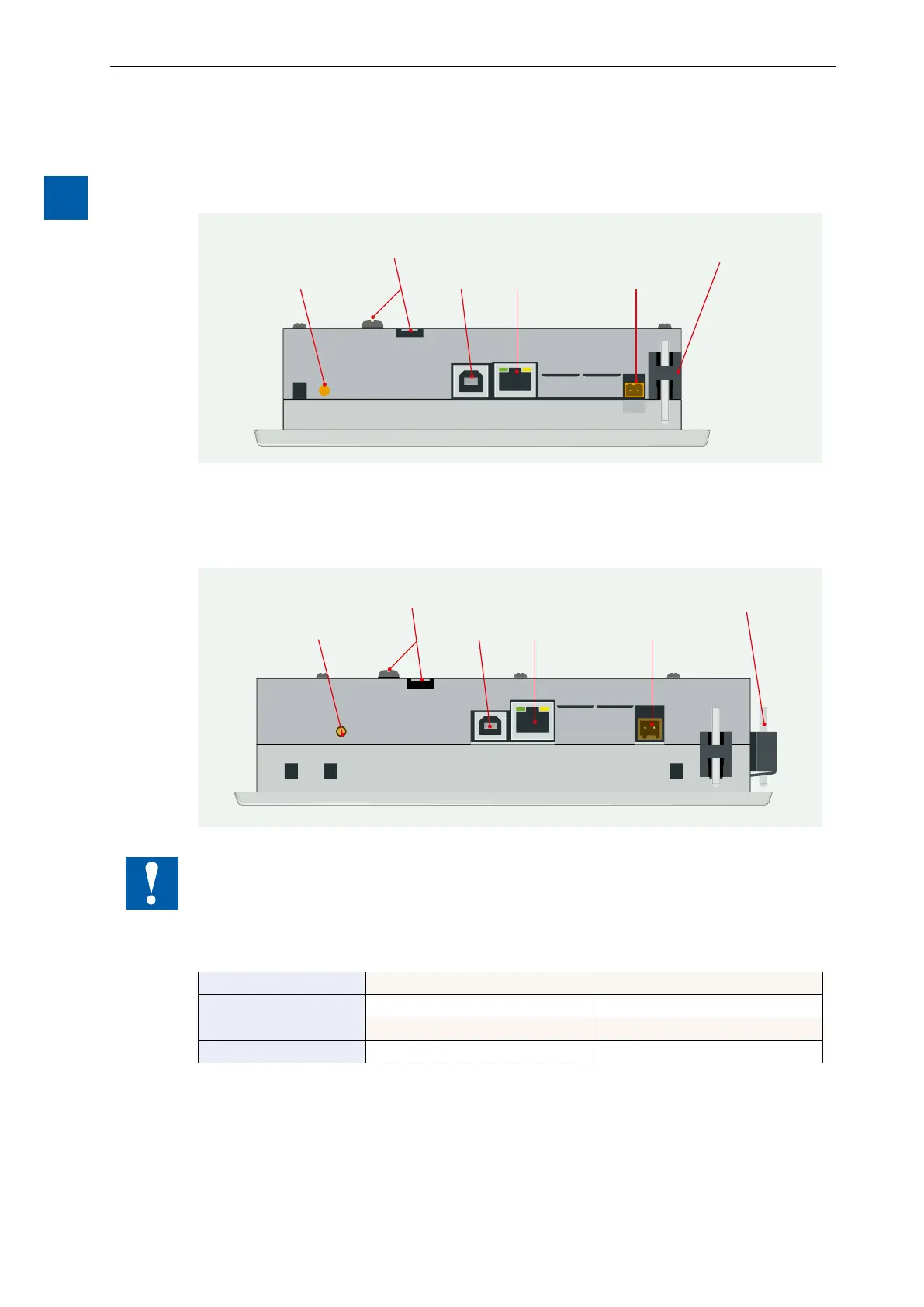

Denition of the connectors
Quickstart
1
1.2 Denitionoftheconnectors
PCD7.D450WTPx
Ethernet USB Power supplyReset button
Ground using screw M4 (cable lug)
or mounting plate 6.3 mm (FastOn)
Fixation set
PCD7.D470WTPx
Ethernet USB Power supplyReset button
Ground using screw M4 (cable lug)
or mounting plate 6.3 mm (FastOn)
Fixation set
Protective earth must be connected
Power supply
Ground/Earth (-) / 24V (+) Connector, 2-pole
Communications
1× Ethernet 1× RJ 45 with LED display
USB Standard USB slave
Reset button
Pushbutton
