Voltage supply of the panel
Quickstart
1

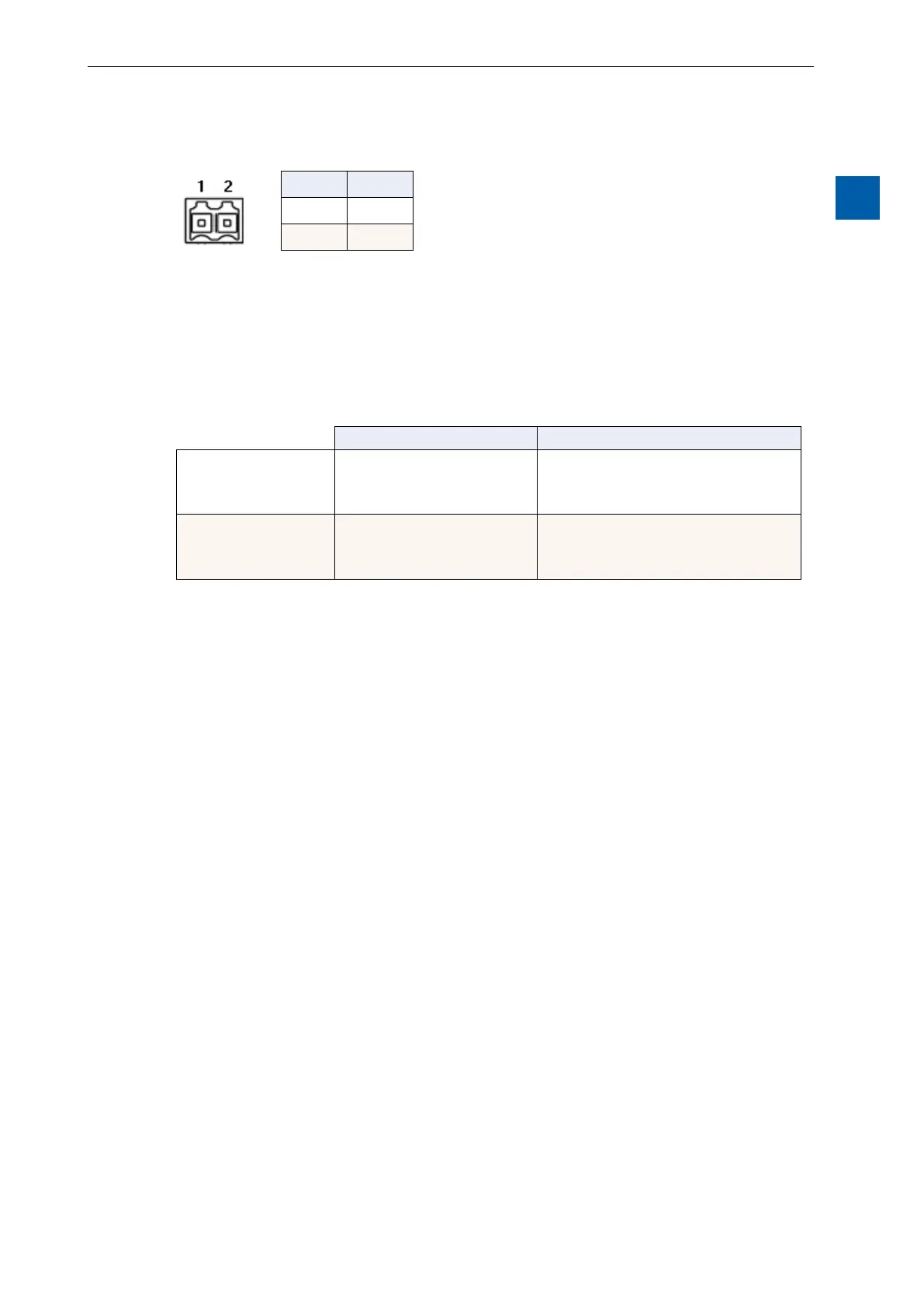

1.3 Voltage supply of the panel
Pin Signal
1 24V (+)
2 Earth (-)
Power supply:
→ 24 VDC +30% / –20%
or
→ 19 VAC ±15% current supply with full-wave rectier
Current consumption Power output without backlight
PCD7.D450WTPF
PCD7.D450WTPZ11
PCD7.D450WTPZxx
Max 350 mA 8 W
PCD7.D470DTPF
PCD7.D470DTPZ11
PCD7.D470DTPFZxx
Max 350 mA 8 W
Current supply with jack plug for cable of max. 1.5 mm
