Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage V
01:07 Issue 17 en-GB 15
Position

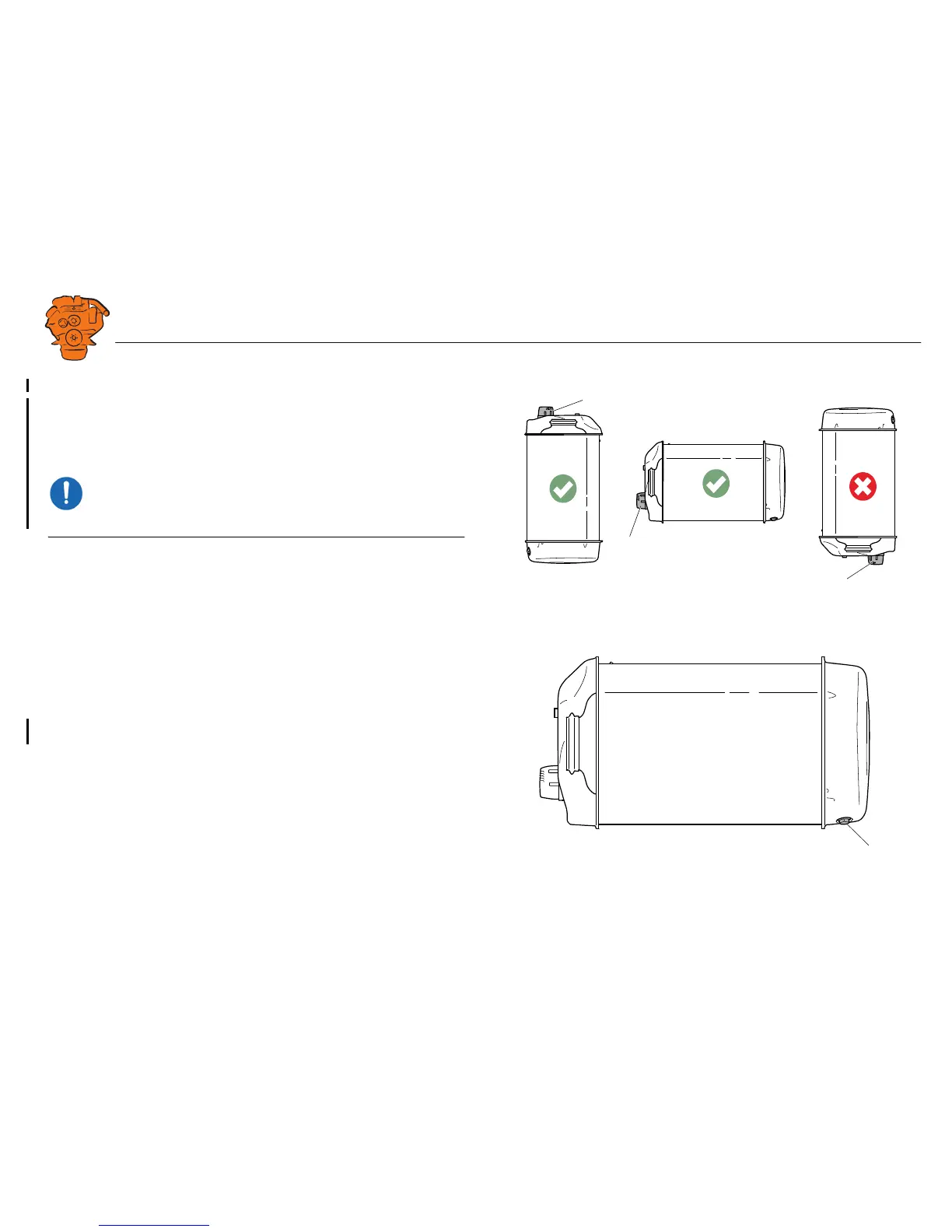

The SCR unit must be installed so that the reductant doser (1) meters downwards or
to one side. See illustration.
The SCR unit reductant doser should be positioned in a space where the ventilation
is as good as possible.
IMPORTANT!
Maximum permitted ambient temperature at the reductant doser is 115°C.
On the SCR unit, there is a drain hole for emptying flush water (1). Scania recom-
mends that the SCR unit is positioned with the drain hole facing down.
1
1
1
400 178
1
399 674

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
