System overview – Stage V
01:07 Issue 17 en-GB 6

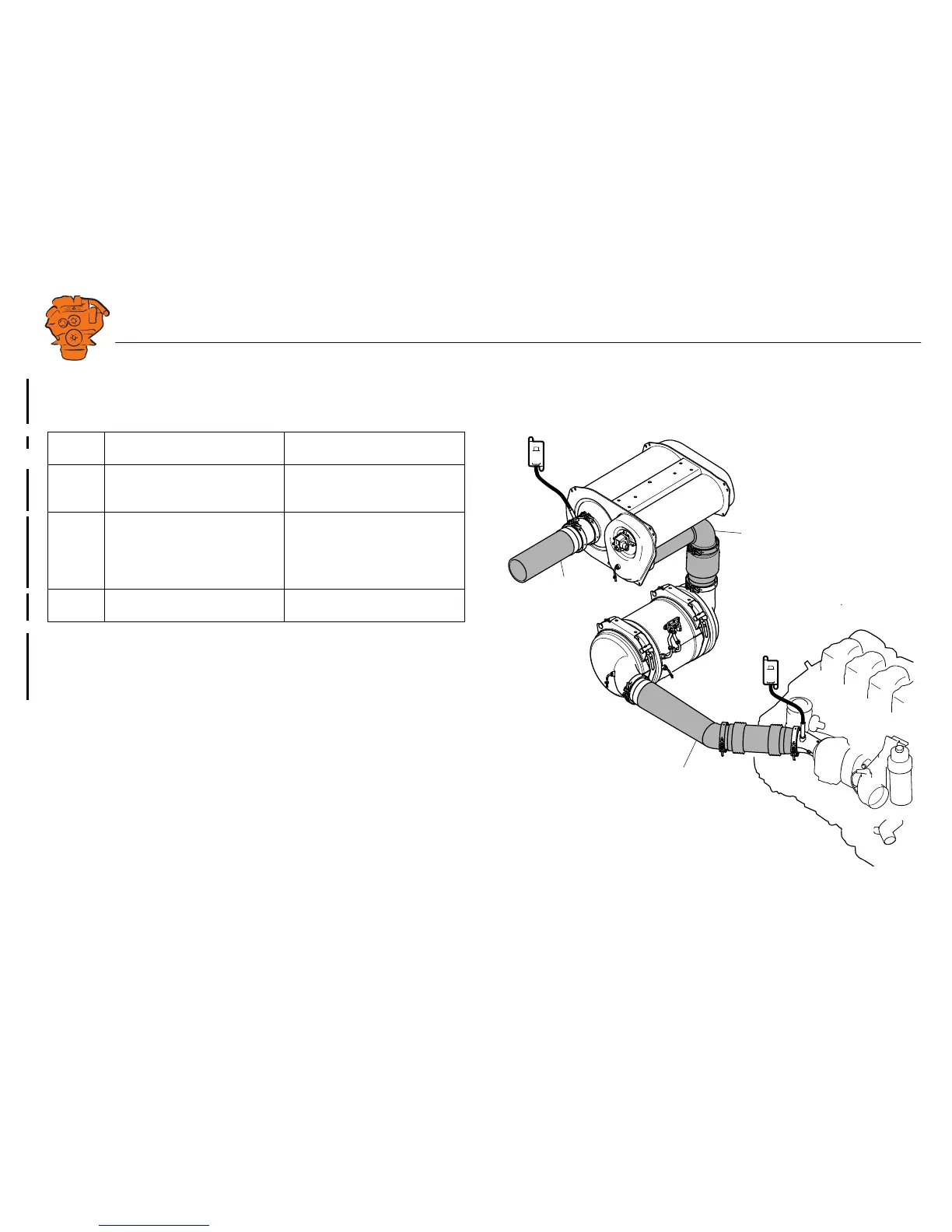

Exhaust pipe
Pipe lengths
The exhaust gas temperature may drop excessively in the system if the total length
between the NO
x
sensor adapter outlet and the evaporator inlet exceeds 2,700 mm.
There is then a great risk that the engine will go into heating mode, which can in-
crease fuel consumption. The maximum permitted exhaust gas temperature reduc-
tion is indicated in 01:04 Exhaust system.
Pipe sec-
tion
Description Pipe length (mm)
A From the adapter for NO
x
sensor
T131 to the oxidation catalytic
converter inlet.
Max. 1,700.
A+B Total length from the adapter for
NO
x
sensor T131 to the evaporator
intake, excluding the particulate
filter unit (oxidation catalytic con-
verter and particulate filter).
Max. 2,700.
C From the adapter for NO
x
sensor
T115 to the exhaust outlet.
At least 500 mm.
A
B
C
397 339

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
