INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage IV/Tier 4f and Stage III B/Tier 4i
01:07 Issue 17 en-GB 29
Hydrolysis catalytic converter
For DC16 Stage III B/Tier 4i, a hydrolysis catalytic converter is used.
Dimensions

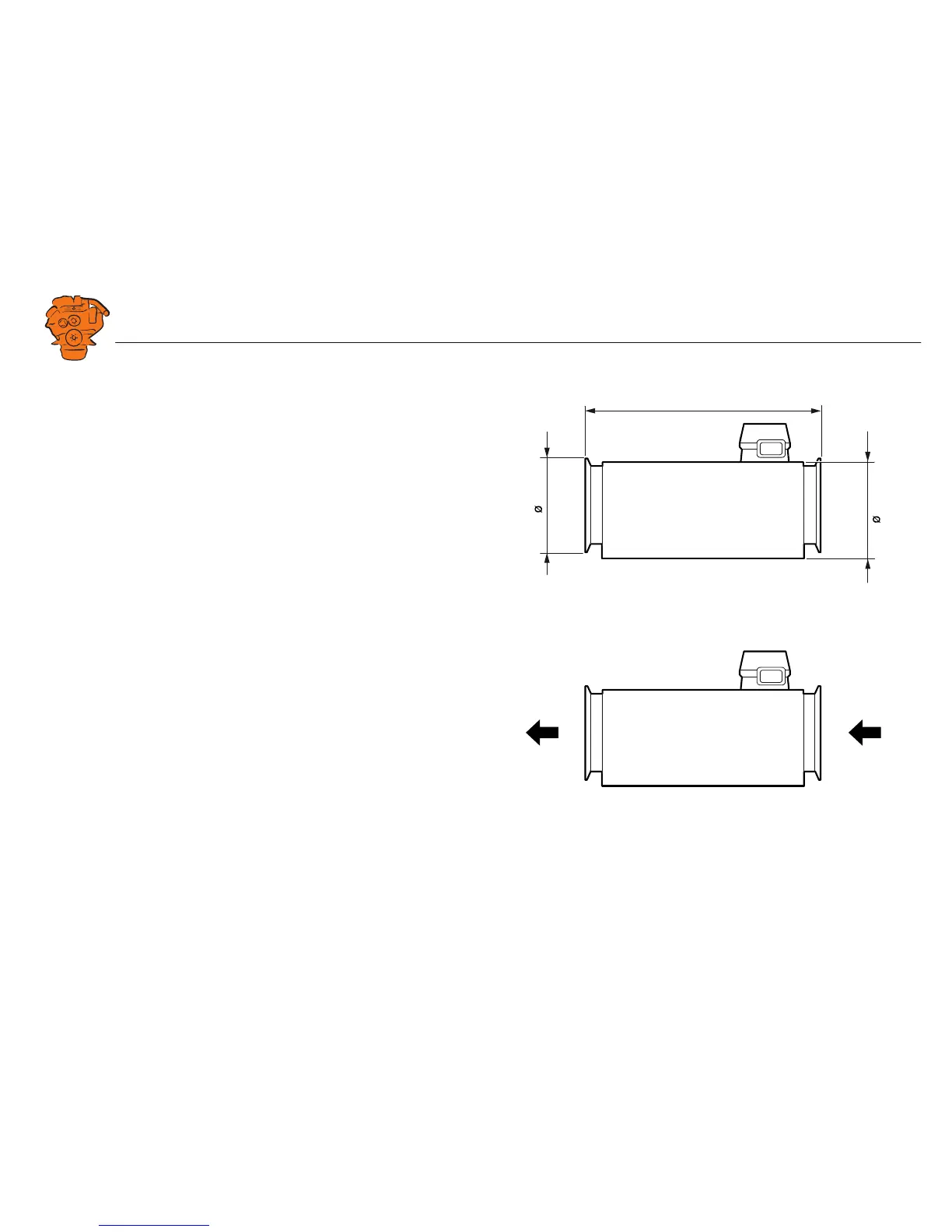

The illustration shows the dimensions of the hydrolysis catalytic converter.
Position
The hydrolysis catalytic converter must be fitted in the direction of the exhaust gases
as illustrated. The hydrolysis catalytic converter should be positioned in a space
where the ventilation is as good as possible. Maximum permitted ambient tempera-
ture 115°C.
