INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Reductant tank
01:07 Issue 17 en-GB 37

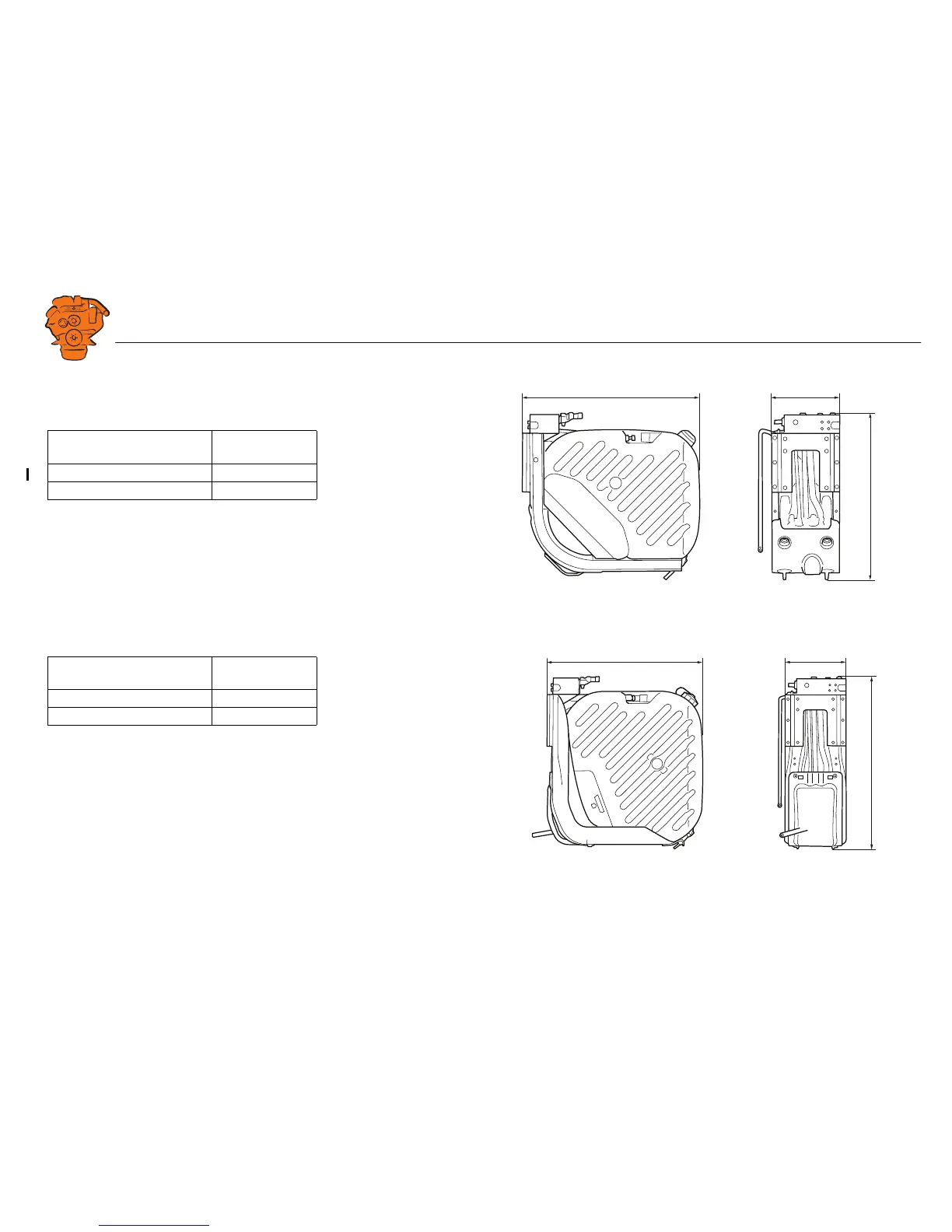

Dimensions
Dimensions for 38 litre reductant tank
Dimensions for 60 litre reductant tank
Emission class Dimension A
(mm)
Stage V/Stage IV/Tier 4f 671
Stage III B/Tier 4i 680
Emission class Dimension A
(mm)
Stage V/Stage IV/Tier 4f 788.3
Stage III B/Tier 4i 803
338 661
720
280
A
338 662
725
280
A
