Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage IV/Tier 4f and Stage III B/Tier 4i
01:07 Issue 17 en-GB 31

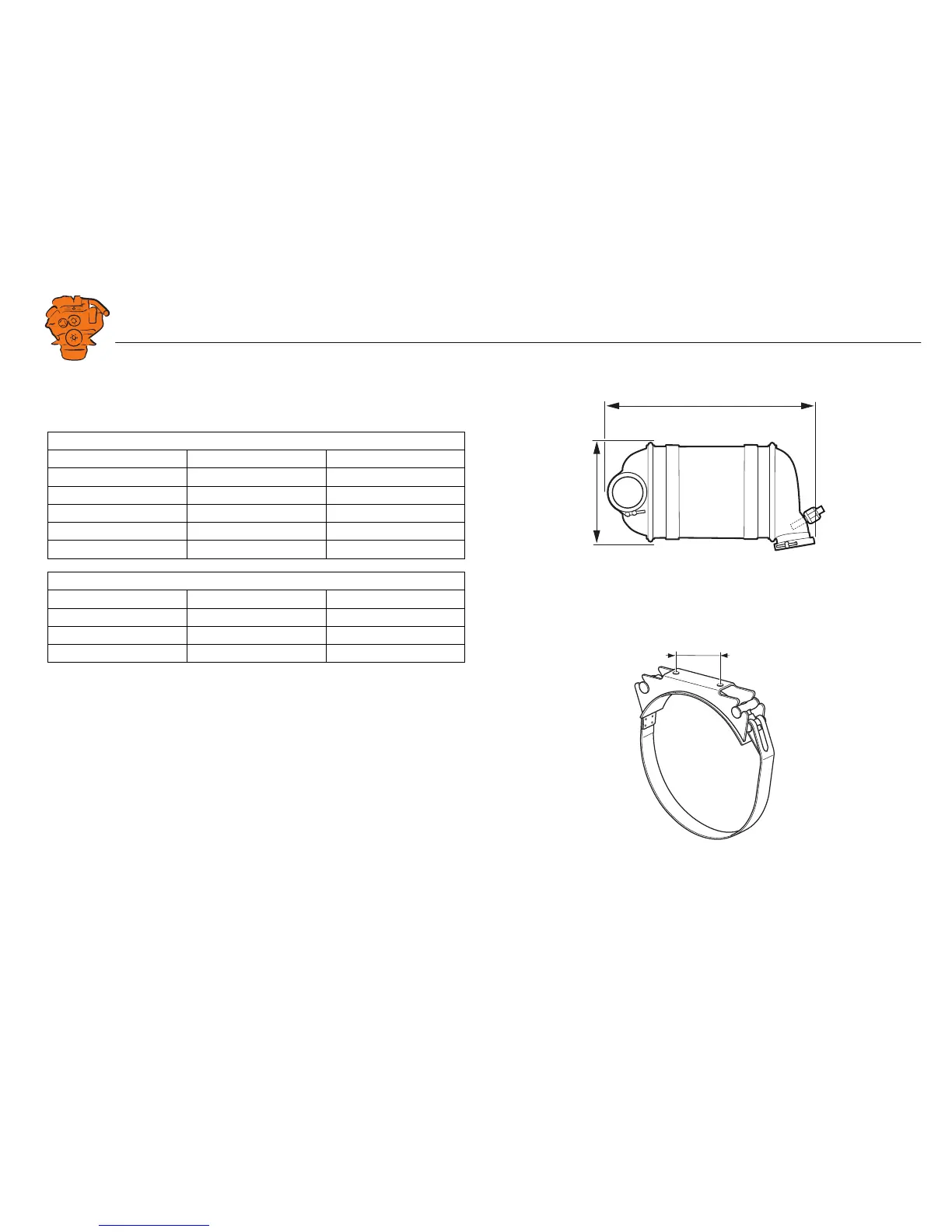

SCR catalytic converter
Dimensions
Mounting
The SCR catalytic converter is supplied with two retaining straps with brackets. The
attachment holes have a diameter of 13 mm. Attach the brackets with flange screw
M12 or a common screw of a suitable length. Use an M12 flange nut if necessary.
Emission class, Stage IV/Tier 4f
Engine Engine power (hp) Dimension A (mm)
DC09 84/85/87/89A 275-350 786
DC09 86A 375-400 900
DC13 84/87/89A 350-450 900
DC13 85A 500-550 970
DC16 550-770 970
Emission class, Stage IIIB/Tier 4i
Engine Engine power (hp) Dimension A (mm)
DC09 200-400 786
DC13 350-550 858
DC16 550-700 1,060
Tightening torques
M12 70 Nm
Retaining strap 39 Nm
A
ø 348,5
335 259
340 434
130

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
