Reductant tank
01:07 Issue 17 en-GB 39
Position
In order to renew the reductant filter in a simple way, the reductant tank must be po-
sitioned so that clearance A is at least 200 mm for the 38, 60 and 70 litre tanks and
300 mm for the 45 and 63 litre tanks. If the tank has a casing, it must be easily acces-
sible.
When carrying out repair work on the pump and control unit, the reductant tank
should be removed.
If the reductant is exposed to high temperatures, there is a risk that it separates. The
reductant then cannot reduce the amount of nitrogen oxide in the exhaust gases as it
should, which leads to the engine installation not meeting emissions requirements.
The reductant tank must not be positioned close to the exhaust system or any sources
of heat which may cause the reductant to be heated to more than 55°C. Measure the
temperature in the reductant tank space when installation is complete. Refer to 01:08
Measuring instructions for installation inspection.
1
2
34
A
A
A
A
353 438

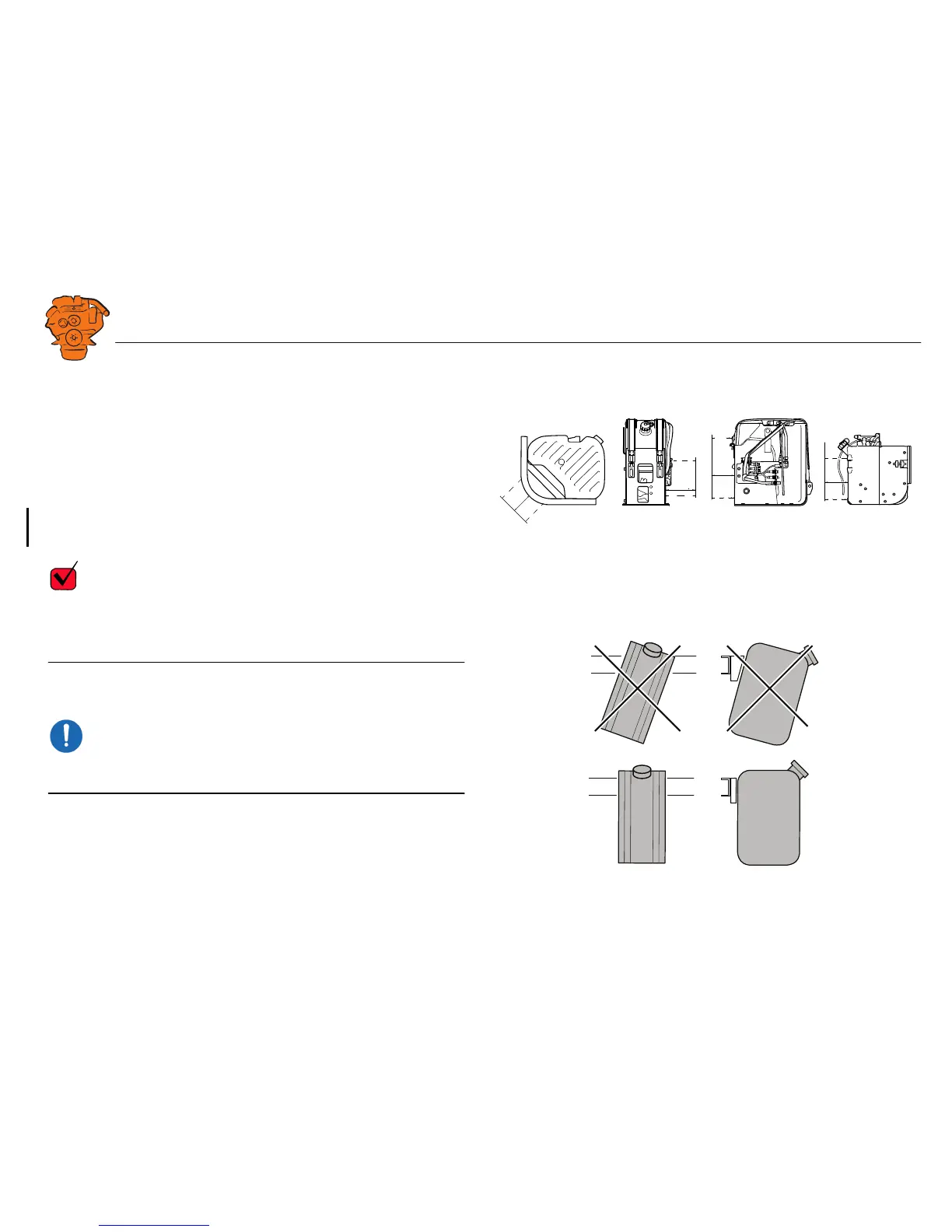

A = Free space required for prefilter renewal.
1. A = 200 mm (38 and 60 litre tanks).
2. A = 300 mm (45 litre tank).
3. A = 300 mm (63 litre tank).
4. A = 200 mm (70 litre tank).
