Reductant tank
01:07 Issue 17 en-GB 40
Drain hole
At the bottom of the reductant tank, there is a drain hole for emptying reductant. Sca-
nia recommends that enough free space is left around the drain hole so that it is pos-
sible to access the drain hole and drain the reductant tank.

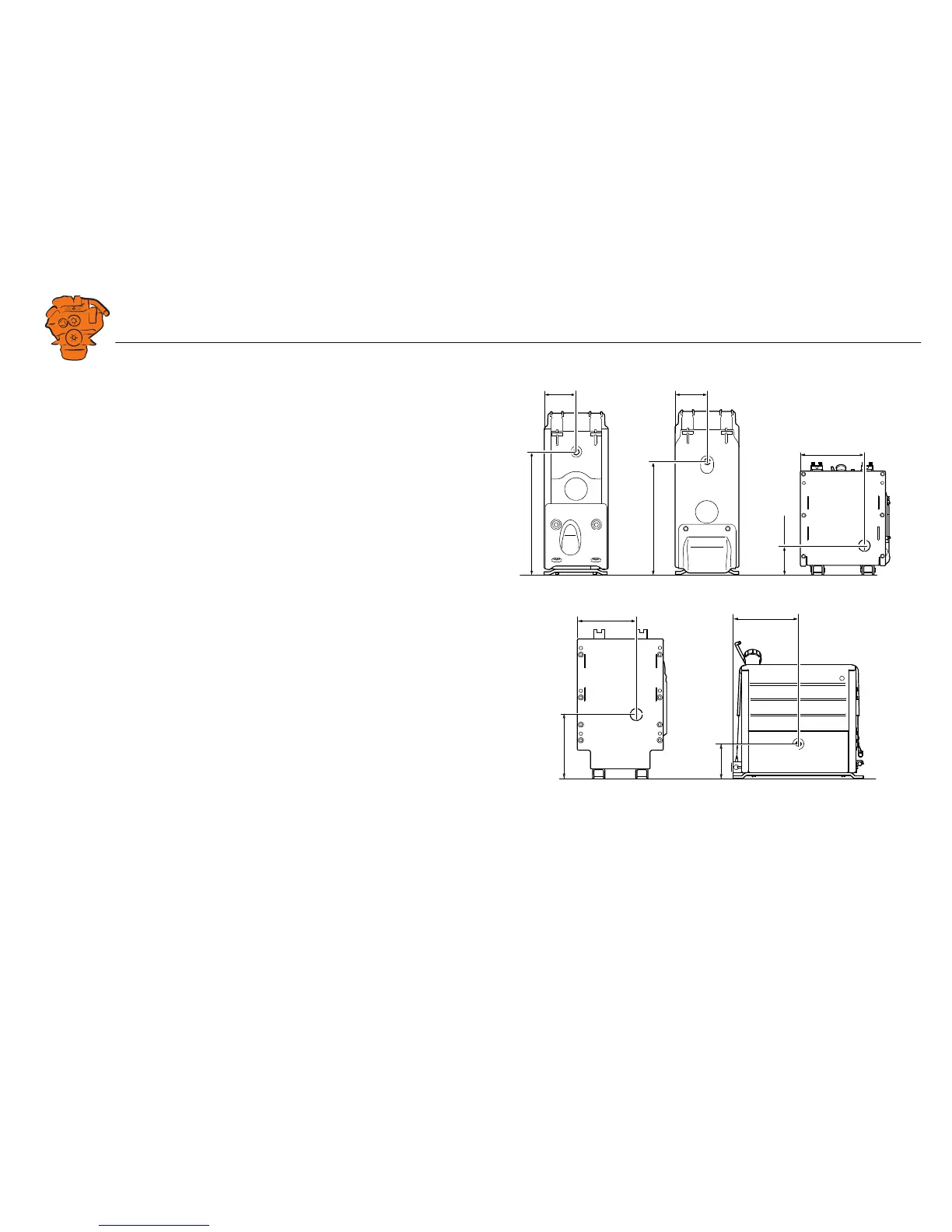

The location of the drain hole for different reductant tanks is shown in the illustra-
tions. The tanks are shown from below. The holes have M18 threads.
12
3
45
269
542
291
296
494
140
140
131. 5
287.5
158
399 083
1. 38 litre tank.
2. 60 litre tank.
3. 45 litre tank.
4. 63 litre tank.
5. 70 litre tank.
